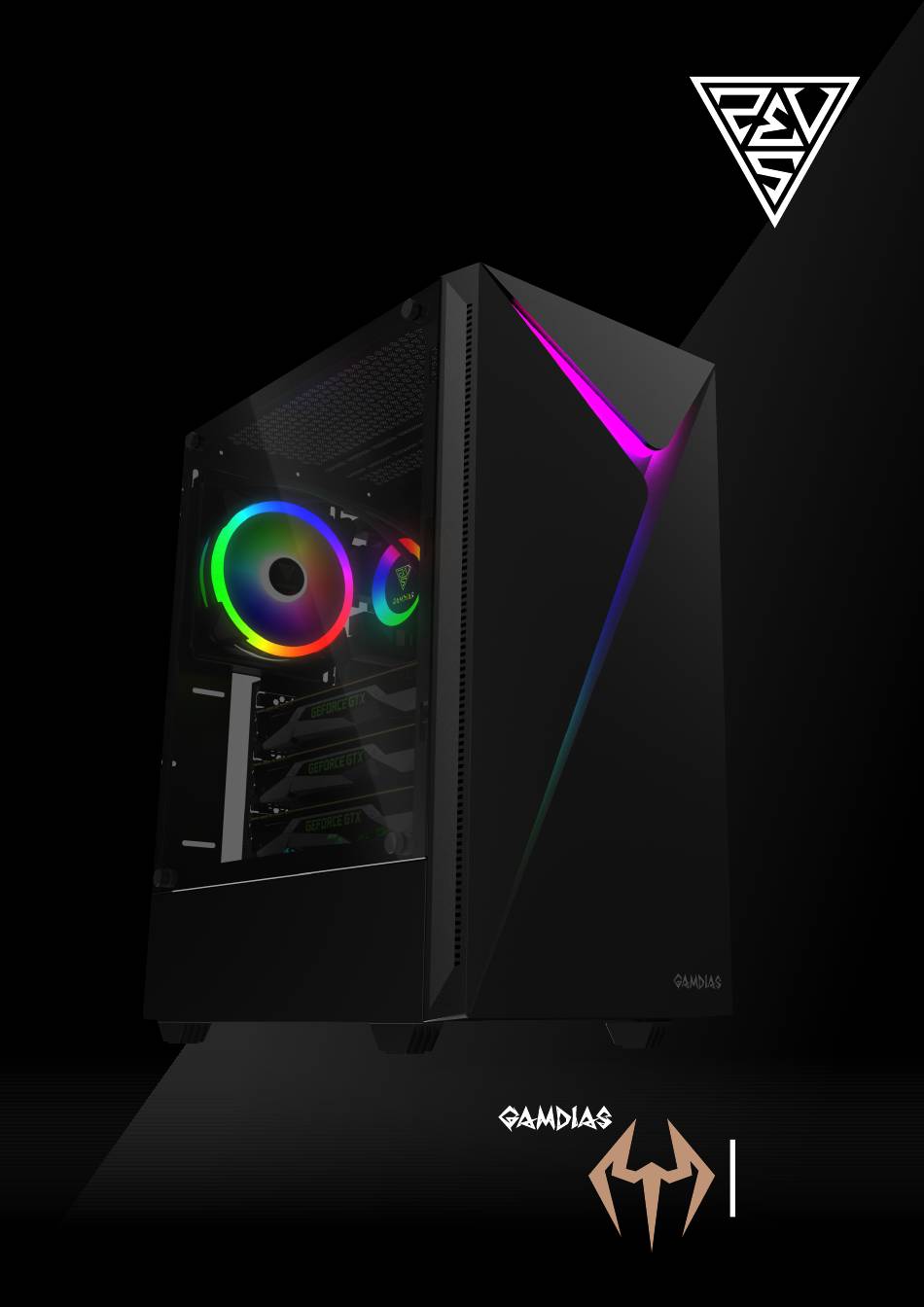

- Seite 1 QUICK INSTALLATION GUIDE ARGUS M I D - T O W E R P C C A S E...
-
Seite 2: Inhaltsverzeichnis
TABLE OF CONTENTS 1 Specifications 2 Exploded View & Parts 3 Accessory 4 Side Panel Removal 5 Motherboard Installation 6 PSU Installation 7 3.5" & 2.5" HDD Installation 8 Air Cooling Compatibility 9 Radiator Compatibility 10 I/O Ports 11 I/O Connectors... -
Seite 3: Specifications
SPECIFICATIONS SERIES LED Strips Series Product Name ARGUS E4 Case Type MID Tower Dimension (L x W x H) 363 x 216 x 462 mm 14.3 x 8.5 x 18.2 inch Chassis Dimension (L x W x H) 330 x 215 x 440 mm 13 x 8.5 x 17.3 inch... -
