Solar-Log MOD I/O Kurzanleitung

Quick Start Guide
MOD I/O
Introduction
This installation manual is intended for use by solar energy technicians and
professional electricians, as well as Solar-Log Base users. It should be noted
that the installation and commissioning of the individual components is only to be
performed by properly trained specialists.
The Solar-Log™ must only be used by persons who have fully read and under-
stood this manual before installing, operating and/or servicing the device.
Please observe!
Disconnect the power of the Solar-Log Base before plugging in/out the bus
connector and before connecting the module with the Solar-Log™.
Assembly
The MOD I/O module is manufactured in accordance with protection class IP20
and is designed exclusively for installation in suitable for dry, dust-free indoor use.
The assembly itself can be carried out both via wall mounting as well as on a DIN
rail. Power is supplied via the bus system by the Solar-Log Base, a power supply
via pins power + and - is not required for the PM+ function.

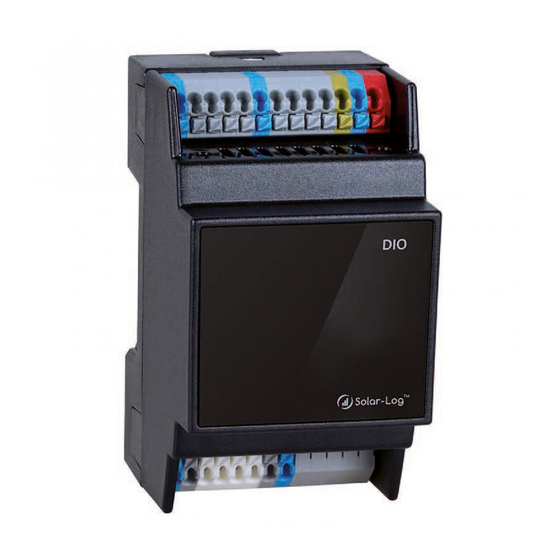

Module MOD I/O connection and mounting
Take one of the 2 bus connectors included in the scope of delivery. The bus con-
nector is plugged into the back of the Solar-Log Base.
Take the second bus connector and plug it into the back of the MOD I/O.
To complete the HBus connection, plug the two bus connectors together.
Now the connected housings can be snapped into the DIN rail.
Follow the short instructions Solar-Log Base.
Connections
Top
Currently without function Power
- +
Pin RS485
COM Functional earthing
1 Control signal reactive power
2 Digital_In 1
3 Digital_In 2
4 Digital_In 3
5 Digital_In 4
6 Control signal reactive power
COM Functional earthing
For further information on connecting the ripple control receiver, please refer
to the installation manual.
Technical Data
12 - 24V ⎓ +- 5 % bzw. 12 - 24VDC +- 5 %
Nominal voltage
Solid conductor: 0.2 ... 1.5 mm² / 24 ... 16 AWG
Fine-stranded conductor: 0.2 ... 1.5 mm² / 24 ... 16 AWG
Cable cross-section
With ferrules: 0.14 - 1 mm² (ferrules – to be
used for fi ne-stranded conductor)
Strip length 8.5 ... 9.5 mm / 0.33 ... 0.37 inch, with ferrules
Power consumption Via HBus of the Solar-Log Base
Voltage of the control signal corresponds to
Control signal
Supply voltage of the Solar-Log Base
Dimensions (Wx-
53,6x89,7x60
HxD) in mm
Solare Datensysteme GmbH • www.solar-log.com • Subject to change without notice • EN | 11.2019 | Version 1.0 | Art.Nr.: 15818
Bottom
PM+ Without function
6 5 4 3 2 1
≧
6mm / 0,24 inch
