Palazzetti FI extra Nweisungen Für Installation - Gebrauch Und Wartung Seite 21

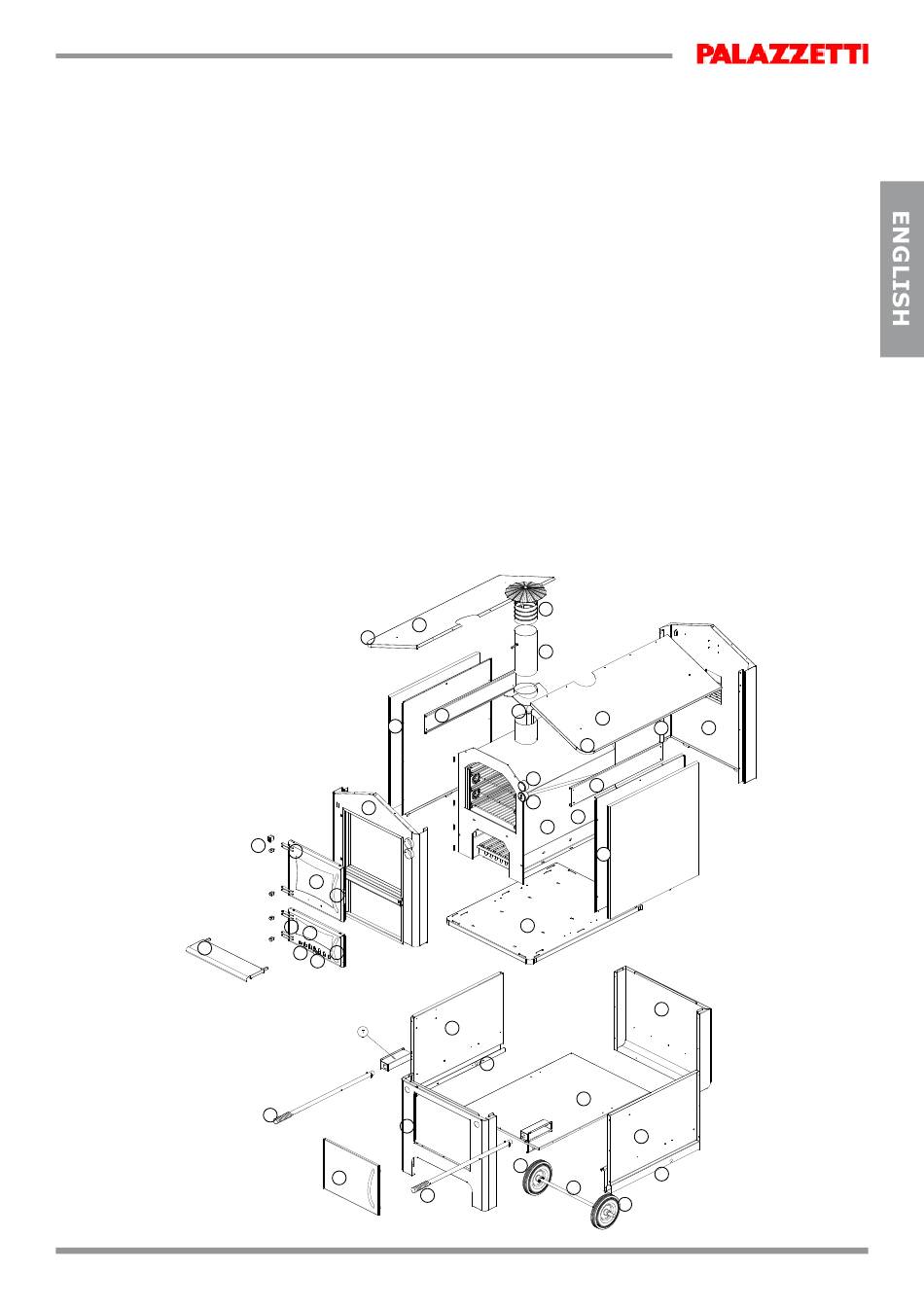

3. Rear part of the oven
4. Oven base
5. Roof
6. Oven uprights
7. Oven side panels
8. Rock wool
9. Oven rear panel
10. Cooking chamber door
11. Cooking chamber glass
12. Handles
13. Combustion chamber door
14. Combustion chamber glass
15. Glass fixing plates
16. Valve plates
17. Valve knob
18. Minute counter
19. Thermometer
20. Switches
21. Chimney hood
22. Chimney
26
BuILT-IN AND OuTDOOR OvENS - code 00 477 0980 - 12/2010 - Palazzetti - PN - Italy
5
25
7
2
20
10
11
12
13
14
12
16
17
28
30
29
28
23. Vapour outlet elbow
24. Pipes with brass elbow
25. Rubber protections
26. Front support surface
27. Side support surface
28. Complete rubber handles
29. Carriage doors
30. Front of the cart
31. Rear of the cart
32. Right side of the cart
33. Left side of the cart
34. Back of the cart
35. Cart uprights
36. Cart wheel axles
37. Cart wheels
