TECHNICAL DATA
TECHNISCHE DATEN

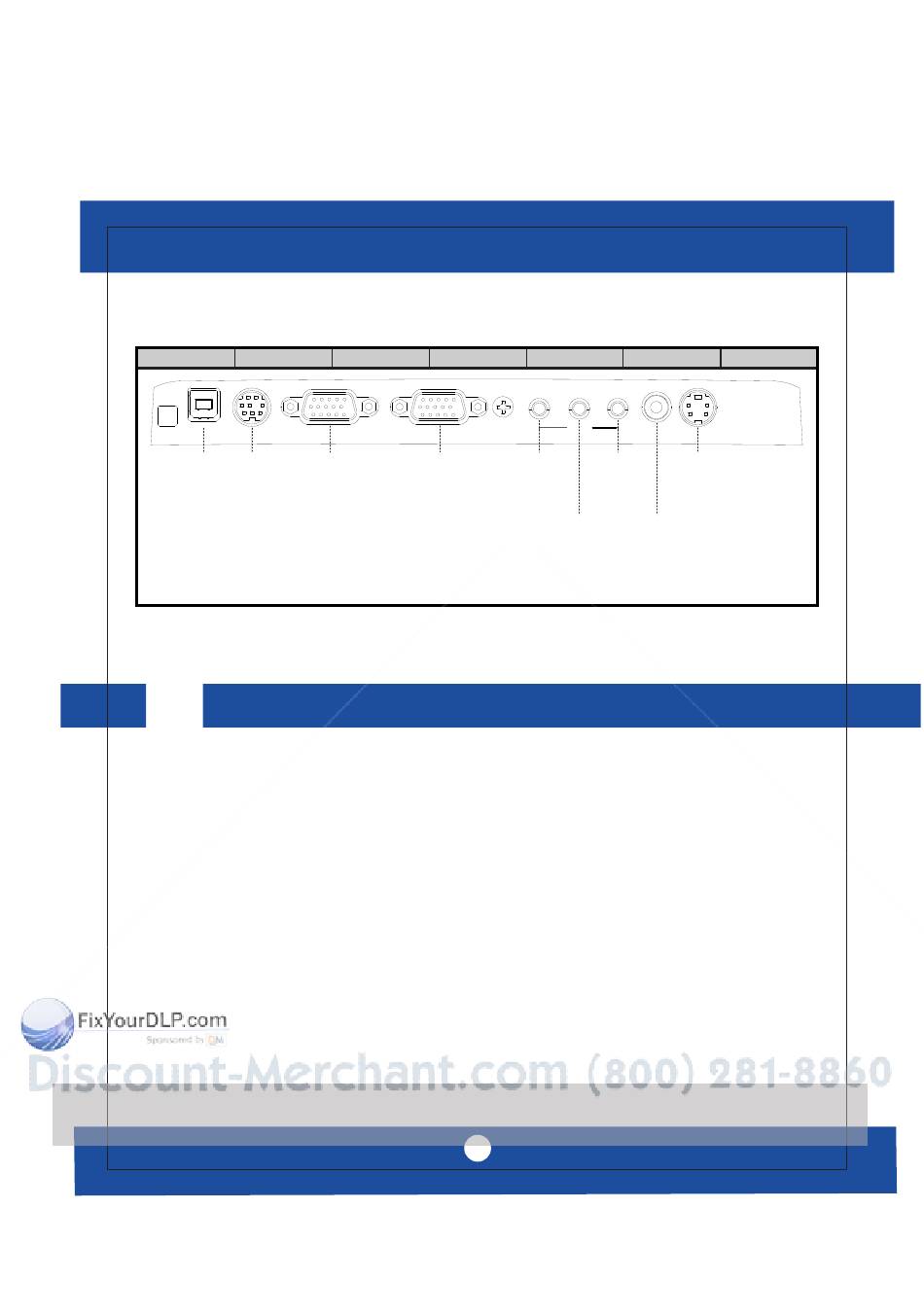

CONNECTORS
ANSCHLÜSSE
2
1
1
3
6
3
4
USB MOUSE 2
MOUSE 1
DIGITAL
8 PIN MINIDIN
USB
FEMALE
1 VCC
1 Mac ADB
2 - Data
2 PS/2 clock
3 +Data
3 PS/2 data
4 GND
4 RS232 TXD
5 Not used
6 RS 232 RXD
7 RS 232 CTS
8 GND
L
FCC STATEMENT
devices, terminals, printers, etc.) certified to comply with the Class A limits may be attached to a computer that complies with Class A limits. When connecting to a
peripheral device, a shielded input/output cable is required to ensure compliance with FCC rules. The shielded cable that must be used is supplied with the
equipment. Operation with non-certified peripherals or non-shielded cables is likely to result in interference to radio and TV reception.
and television reception. It has been tested and found to comply with the limits for a Class A computing device in accordance with the specifications in Subpart J of
Part 15 of the FCC rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
·
Reorient the receiving antenna.
·
Relocate the projector with respect to the receiver.
·
Plug the equipment to a different outlet so that equipment
and receiver are on different branch circuits.
·
Fasten cables using mounting screws to ensure adequate EMI control.
available from the U.S. Government Printing Office, Washington, DC 20402, Stock No. 004-000-00345-4.
T H E T R U S T E D S O U R C E F O R P R O J E C T O R L A M P S A N D A C C E S S O R I E S
C2
COMPACT
CARACTERISTIQUES TECHNIQUES
CONNECTEURS
2
15
11
15
4
5
10
6
10
8
5
1
5
7
COMPUTER
MONITOR
15 HIGH DENSITY DSUB
15 HIGH DENSITY DSUB
FEMALE
1 Analog R IN
1 Analog R OUT
2 Analog G IN
2 Analog G OUT
3 Analog B IN
3 Analog B OUT
4 AGND
4 Reserved
5 AGND
5 AGND
6 Analog R GND IN
6 Analog R GND OUT
7 Analog G GND IN
7 Analog G GND OUT
8 Analog B GND IN
8 Analog B GND OUT
9 Reserved
9 Reserved
10 Sync GND IN
10 Sync GND OUT
11 Not used
11 AGND
12 DDC/SDA
12 DDC/SDA
13 HSync IN
13 HSync OUT
14 VSync IN
14 VSync OUT
15 DDC/SCL
15 DDC/SCL
ing device, pursuant to Subpart J of Part 15 of FCC rules. Only peripherals (computer input/output
, if not installed and used in accordance with the instruction manual, may cause interference to radio
nications Commission (FCC): "How to identify and resolve radio and TV interference problems",
/ C6
COMPACT
DATOS T É CNICOS
DATI TECNICI
CONECTORES
CONNETORI
11
6
1
AUDIO
COMP IN
LINE OUT
3.5 mm
FEMALE
JACK
TIP: right
RING: left
STEM: common
STEM: common
3.5 mm
JACK
TIP: right
RING: left
STEM: common
www.askproxima.com
20
TEKNISKE DATA
KONTAKTER
4
3
2
1
VIDEO IN
VIDEO
S-VIDEO
3.5 mm
4 PIN MINIDIN
JACK
FEMALE
TIP: right
1 GND
RING: left
2 GND
3 Luma
4 Common
PHONO/RCA
FEMALE
STEM: composite
SHIELD: GND
