dirna Bergstrom bycool COMPACT 3.0 Montageanweisungen Seite 11

COMPACT 3.0
1

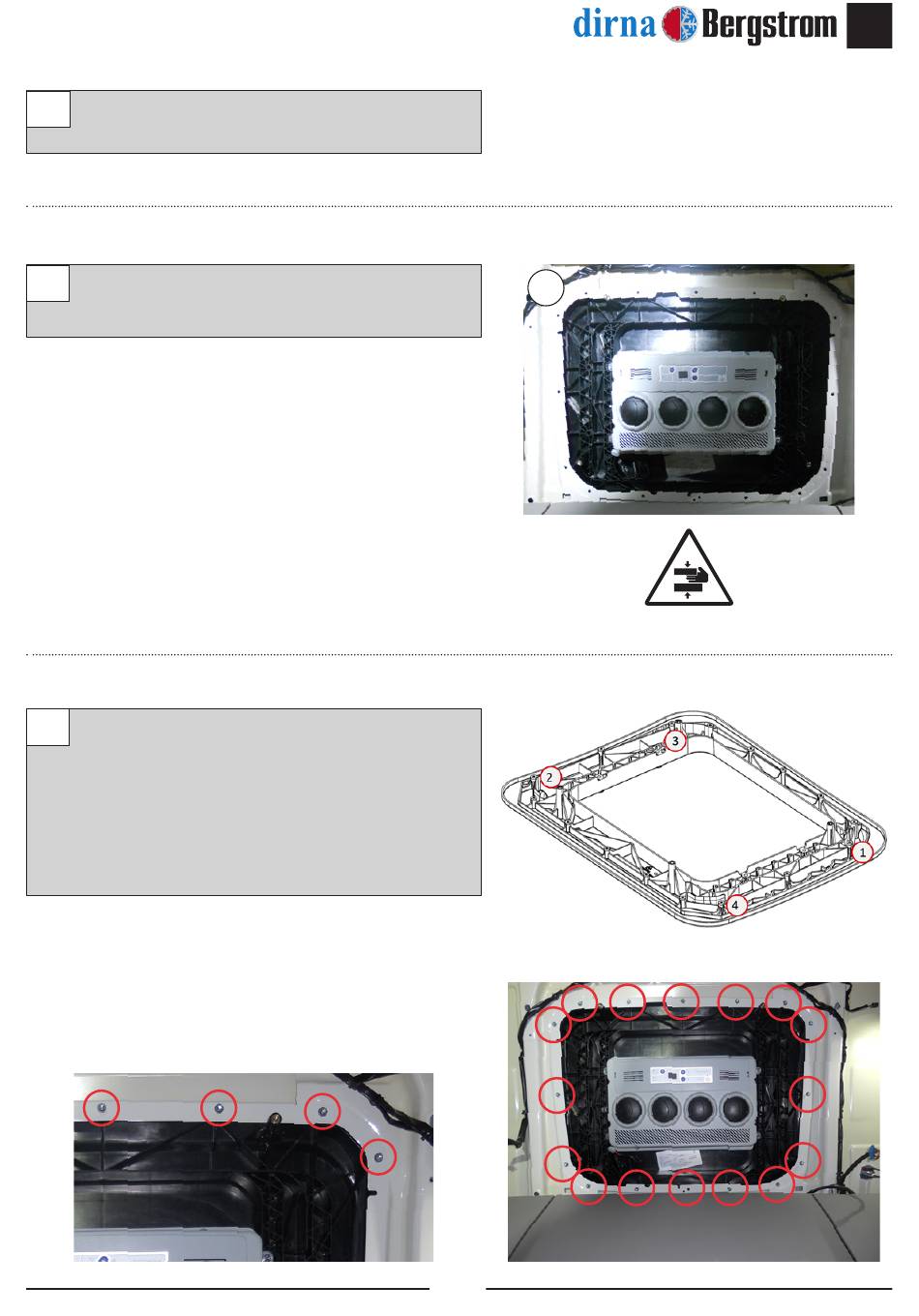

Remove cover hatch, fastening elements and hand
these over to the customer.
2
CABIN EXTERIOR:
Place the Compact in the hatch gap.
3
Fix the equipment with (16) WN5451 (60x20)
plastic screws with a tightening torque of 3,75 ±
10% Nm. maintaining the following order:
• First tighten the (4) corner screws (following the
numerical order of the attached figure) and then
the rest of the screws.
2
11
