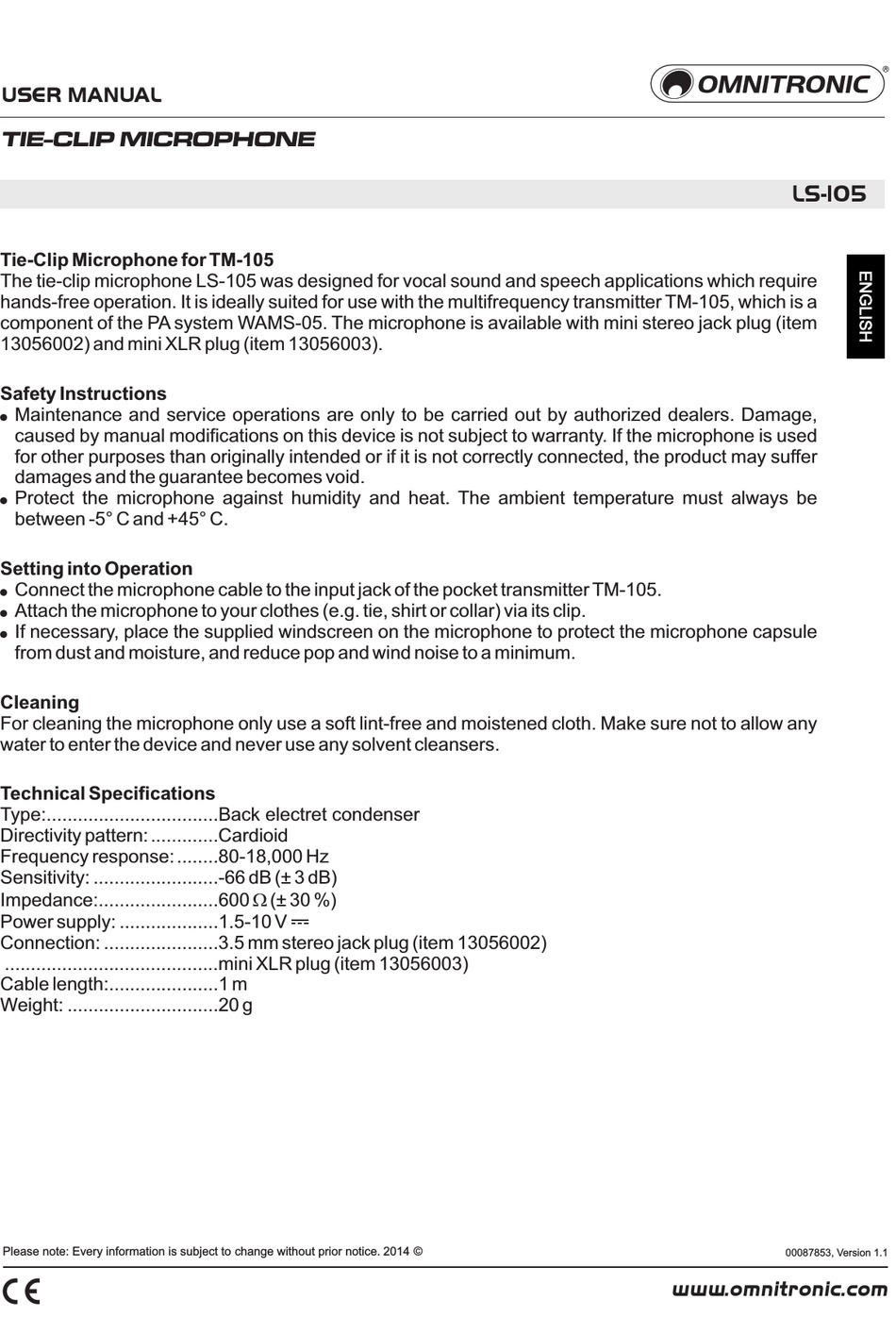

USER MANUAL
TIE-CLIP MICROPHONE
Tie-Clip Microphone for TM-105
The tie-clip microphone LS-105 was designed for vocal sound and speech applications which require
hands-free operation. It
component of the PA system WAMS-05. The microphone is available with mini stereo jack plug (item
13056002) and mini XLR plug (item 13056003).
Safety Instructions
Maintenance and service operations are only to be carried out by authorized dealers. Damage,
!
caused by manual modifications on this device is not subject to warranty. If the microphone is used
for other purposes than originally intended or if it is not correctly connected, the product may suffer
damages and the guarantee becomes void.
Protect the microphone against humidity and heat. The ambient temperature must always be
!
between -5° C and +45° C.
Setting into Operation
Connect the microphone cable to the input jack of the pocket transmitter TM-105.
!
Attach the microphone to your clothes (e.g. tie, shirt or collar) via its clip.
!
If necessary, place the supplied windscreen on the microphone
!
from dust and moisture, and reduce pop and wind noise to a minimum.
Cleaning
For cleaning the microphone only use a soft lint-free and moistened cloth. Make sure not to allow any
water to enter the device and never use any solvent cleansers.
Technical Specifications
Type:.................................Back electret condenser
Directivity pattern: .............Cardioid
Frequency response: ........80-18,000 Hz
Sensitivity: ........................-66 dB (± 3 dB)
Impedance:.......................600
Power supply: ...................1.5-10 V
Connection: ......................
.........................................mini XLR plug (item 13056003)
Cable length:.....................1 m
Weight: .............................20 g
Please note: Every information is subject to change without prior notice. 2014 ©
is ideally suited for use with the multifrequency transmitter TM-105, which is a
(± 30 %)
W
3.5 mm stereo jack plug (item 13056002)
to protect the microphone capsule
www.omnitronic.com
00087853, Version 1.1
