Limited One Year Warranty
T&S warrants to the original purchaser (other
than for purposes of resale) that such product is
free from defects in material and workmanship for
a period of one (1) year from the date of purchase.
During this one-year warranty period, if the product
is found to be defective, T&S shall, at its options,
repair and/or replace it. To obtain warranty service,
products must be returned to...
T&S Brass and Bronze Works, Inc.
Attn: Warranty Repair Department
2 Saddleback Cove
Travelers Rest, SC 29690
Shipping, freight, insurance, and other
transportation charges of the product to T&S and
the return of repaired or replaced product to the
purchaser are the responsibility of the purchaser.
Repair and/or replacement shall be made within a
reasonable time after receipt by T&S of the returned
product. This warranty does not cover Items which
have received secondary fi nishing or have been
altered or modifi ed after purchase, or for defects
caused by physical abuse to or misuse of the
product, or shipment of the products.
Any express warranty not provided herein, and
any remedy for Breach of Contract which might
arise, is hereby excluded and disclaimed. Any
implied warranties of merchantability or fi tness
for a particular purpose are limited to one year in
duration. Under no circumstances shall T&S be
liable for loss of use or any special consequential
costs, expenses or damages.
Some states do not allow limitations on how
long and implied warranty lasts or the exclusion or
limitation of incidental or consequential damages,
so the above limitations or exclusions may not apply
to you. Specifi c rights under this warranty and other
rights vary from state to state.
P/N: 098-011395-45 Rev.1
Date: 06-03-11
Drawn: TEH
Checked: JRM 06-06-11
Approved: JHB 06-06-11
Installation and
Maintenance
Instructions

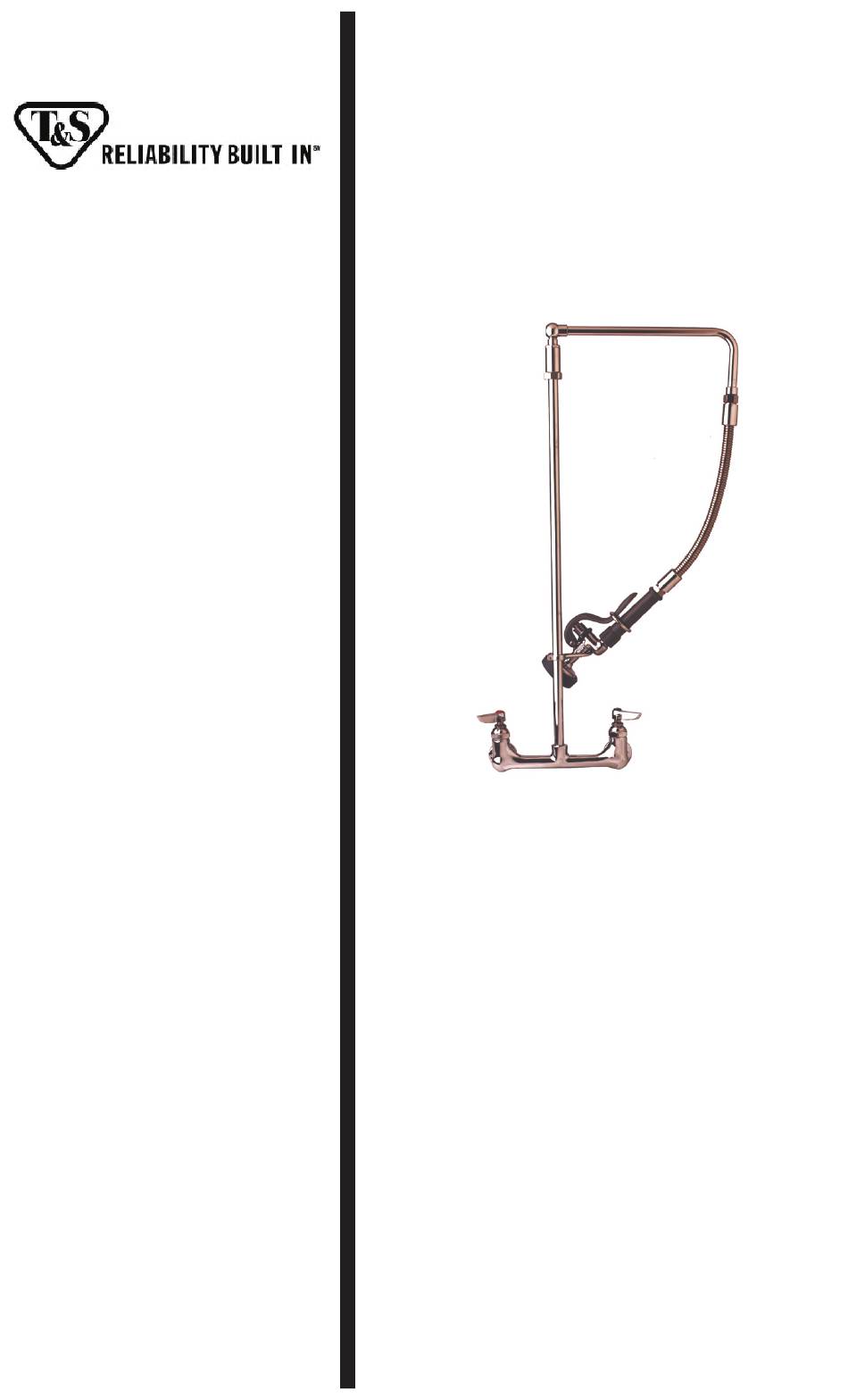

PRE-RINSE UNIT
B-0131
(Also for B-0111, B-0121,
B-0141, B-0171)
Deutsch: Installation- und
Wartungsanleitungen
Español: Ia Instalación y las Instrucciones
de Mantenimiento
Français: Ies Instructions d'Installation et
d'Entretien

Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für T&S B-0131

  • Seite 1 Any implied warranties of merchantability or fi tness for a particular purpose are limited to one year in B-0131 duration. Under no circumstances shall T&S be liable for loss of use or any special consequential (Also for B-0111, B-0121, costs, expenses or damages.
  • Seite 2: Exploded View

    Exploded View hose washer...
  • Seite 3 002832-40 B-0141 B-0430 & B-0512 B-0171 002827-40 Asm, Finger Hook w/ Screw 004R Nipple 3/8” x 26” (for B-0131 only) 000373-40 3/8”x 32” (for other models) 000376-40 Wall Bracket (optional - not included) B-0109-01 Asm, “L” Tube 12” 002882-40 Body, Swivel Unit 3/8”...
  • Seite 4: General Instructions

    General Instructions 6. Remove no.8 and no.9 from Installation: Riser & Hose no.6. Apply tefl on tape or pipe Assembly joint compound to threaded end See separate instructions for of no.8. installing no.1 into deck. 1. Shut off water supply and drain lines.
  • Seite 5: Instrucciones Generales

    Instrucciones Generales Installación: Extensión & 6. Remueva las partes No.8 y No.9 de la parte No.6. Aplique cinta para rosca Ensamble de manguera de tubería o compuesto de coyuntura Mire las instrucciones para la al extremo con rosca de la parte No.8. instalación de la parte No.1 dentro del mostrador.
  • Seite 6: Instructions Générales

    Instructions Générales L’Installation: L’Assemblée 6. Enlever N°.8 et N°.9 de N°.6. D’Augmentation Et Du Tuyau Appliquer le ruban en Téfl on ou le composé pour les tuyaux à l’extrémité Voir les instructions separées pour de N°.8 avec les fi lets. installer N°.1 dans l’égouttoir.
  • Seite 7: Allgemeine Anleitungen

    Allgemeine Anleitungen 6. Nr.8 und Nr.9 von 6 entfernen. Installation: Tefl onband oder Rohrkitt auf Zusammensetzung von Gewinde von Nr.8 schmieren. Steigleitung und Schlauch Teil 1 gemäß Anleitungen auf die Abdeckplatte montieren. 1. Wasser absperren und Wasserleitungen entleeren. 2. Tefl onband oder Rohrkitt auf beide Enden von 3 auftragen.
  • Seite 8 RELATED T&S BRASS PRODUCT LINE B-0137 PRE-RINSE UNIT T&S BRASS AND BRONZE WORKS, INC. A fi rm commitment to application-engineered plumbing products 2 Saddleback Cove, P.O. Box 1088 T & S Brass-Europe Travelers Rest, SC 29690 ‘De Veenhoeve’ Phone: (864) 834-4102 Oude Nieuwveenseweg 84 Fax: (864) 834-3518...
