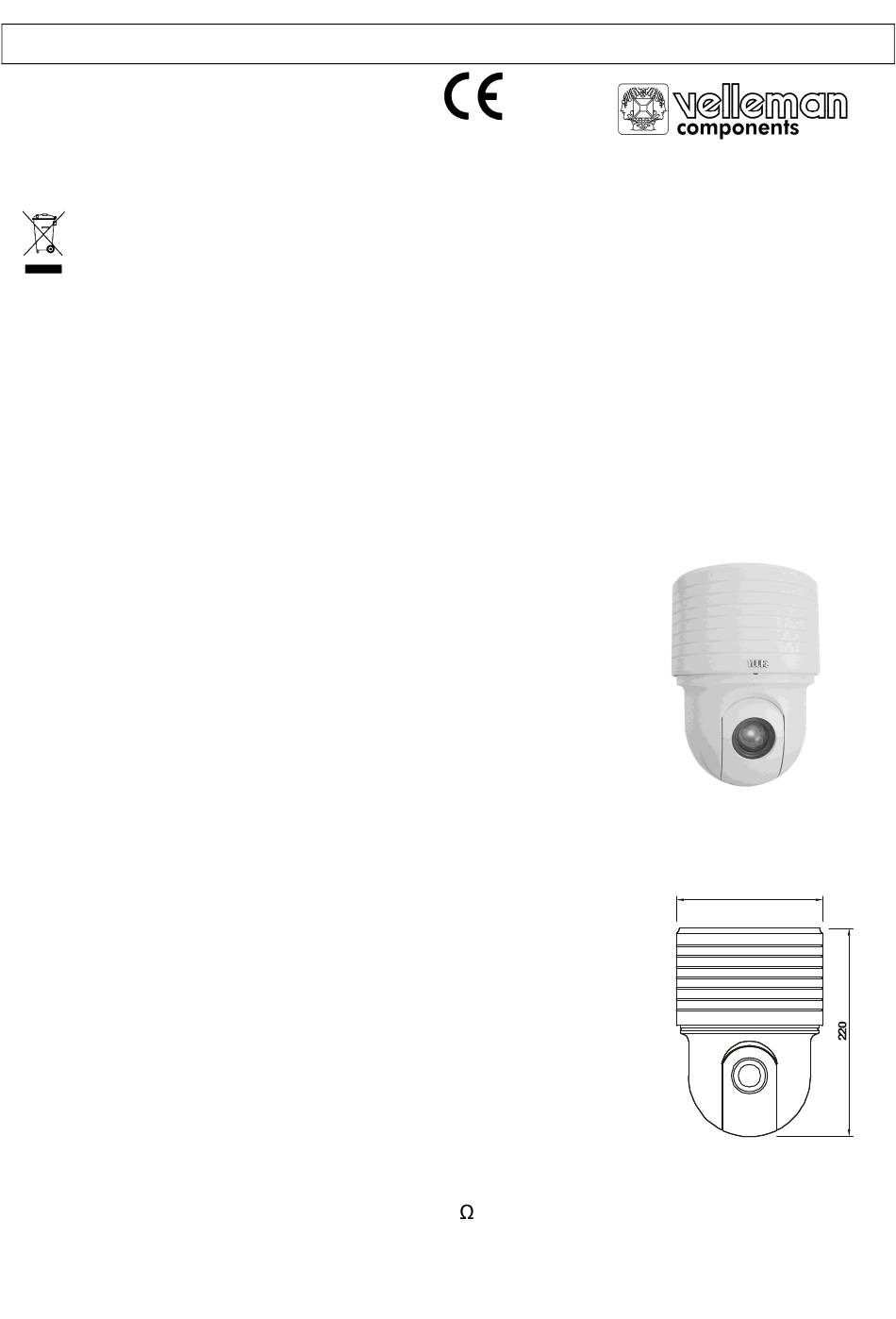

CAMCOLD2 – COLOUR DOME CAMERA – 22 x ZOOM
1. Introduction
To all residents of the European Union
Important environmental information about this product
This symbol on this unit or the package indicates that disposal of this unit after its lifecycle could harm the
environment.
Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be brought to a specialized
company for recycling.
This unit should be returned to your distributor or to a local recycling service.
Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities
Thank you for buying the CAMCOLD2! The CAMCOLD2 is a compact and light camera, easy to install and operate.
One dome contains: a 1/4" colour CCD camera with high light sensitivity, 22 x optical and 10 x digital zoom, auto iris
and practical pan/tilt control. Mounting brackets for wall mounting (CAMCOLD/B1 & CAMCOLD/HB) and ceiling
mounting (COMCOLD/CB) are available. The necessary wiring is pre-installed. You can control the zoom and lens with
the joystick on the CAMCOLD/CK controller keyboard.
If the device was damaged in transit, contact your dealer.
2. Features
System
Scanning system
Sync system
Lens
Resolution
Min. light intensity
Active pixels
Synchronisation
Auto electronic shutter
Gain control
White balance
Lens
Pan/tilt
Optional
3. Specifications
Voltage
Power consumption
S/N ratio
Video output
CAMCOLD2
PAL & NTSC
2:1 Interlace
Internal synchronization
1/3" Sony CCD image sensor
380 TV-lines
0.5 lux (F=1.4)
752 (H) x 582 (V)
Internal
1/50 – 1/10000 second
Automatic
Automatic
22 x zoom (f=3.9-85.8mm / F=1.6)
auto iris
manual/auto focussing, zoom
Rotating speed 4°/s ~ 32°/s
Rotating angle: pan 355° / tilt -10°~85°
Rotation range: adjustable horizontally / non adjustable
vertically
Housings CAMCOLD/HB, CAMCOLD/CB
Controller keyboard CAMCOLD/CK
Colour dome camera CAMCOLD1
12V DC (not included)
4.2 W / 2A
48dB
Composite video 1.0Vp-p, 75 (BNC connector)
1
φ 150
