Klaxon Sonos PSS-0084 Installationsanweisung

EN DE
TONE TONE TYPE
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
Type CPR Reference
PSS-0084 Reference 0832-CPR-0298
PSS-0089 Reference 0832-CPR-0298
Technical Data Doc.18-186213
Type A: For indoor use (Shallow Base) Type B: For outdoor use (Deep Base)
Fig. 1a
Texecom Ltd (Incorporating Klaxon Signals)
St Crispin Way, Haslingden, BB4 4PW, UK.
Tel: +44 1706 233879
FR NL
TONE DESCRIPTION/ APPLICATION
970Hz
800Hz/970Hz @ 2Hz
800Hz – 970Hz @ 1Hz
970Hz 1s OFF/1s ON
970Hz, 0.5s/ 630Hz, 0.5s
554Hz, 0.1s/ 440Hz, 0.4s (AFNOR NF S 32 001 )
500 – 1200Hz, 3.5s/ 0.5s OFF (NEN 2575:2000 Dutch Slow Whoop)
420Hz 0.6s ON/0.6s OFF (Australia AS1670 Alert tone)
1000 - 2500Hz, 0.5s/ 0.5s OFF x 3/1.5s OFF ( AS1670 Evacuation)
550Hz/440Hz @ 0.5Hz
970Hz, 0.5s ON/0.5s OFF x 3/ 1.5s OFF (ISO 8201 )
2850Hz, 0.5s ON/0.5s OFF x 3/1.5s OFF (ISO 8201)
1200Hz – 500Hz @ 1Hz (DIN 33 404)
400Hz
550Hz, 0.7s/1000Hz, 0.33s
1500Hz – 2700Hz @ 3Hz
750Hz
2400Hz
660Hz
660Hz 1.8s ON/1.8s OFF
660Hz 0.15s ON/0.15s OFF
510Hz, 0.25s/ 610Hz, 0.25s
800/1000Hz 0.5s each (1Hz)
250Hz – 1200Hz @ 12Hz
500Hz – 1200Hz @ 0.33Hz
2400Hz – 2900Hz @ 9Hz
2400Hz – 2900Hz @ 3Hz
500 - 1200Hz, 0.5s/ 0.5s OFF x 3/1.5s OFF ( AS1670 Evacuation)
800Hz – 970Hz @ 9Hz
800Hz – 970Hz @ 3Hz
800Hz, 0.25s ON/1s OFF
500Hz – 1200Hz, 3.75s/0.25s OFF (AS2220)
CPD Number
0832-CPD-0298
0832-CPD-0298
Fire Alarm Device - Sounder
Fig. 1b
Installation Instructions
ES PT
Essential Characteristics
Reproducibility
Operational performance
Durability
Dry Heat (operational)
Dry Heat (endurance)
Cold (operational)
Damp heat, cyclic (operational)
Damp heat, steady state (endurance)
Damp Heat, cyclic (endurance)
SO2 corrosion (endurance)
Shock (operational)
Impact (operational)
Vibration (operational)
Vibration (endurance)
Electrostatic discharge (operational)
Radiated electromagnetic fields
(operational)
Voltage transients, fast transient
bursts (operational)
Enclosure Protection
0832
sales@klaxonsignals.com www.klaxonsignals.com
06

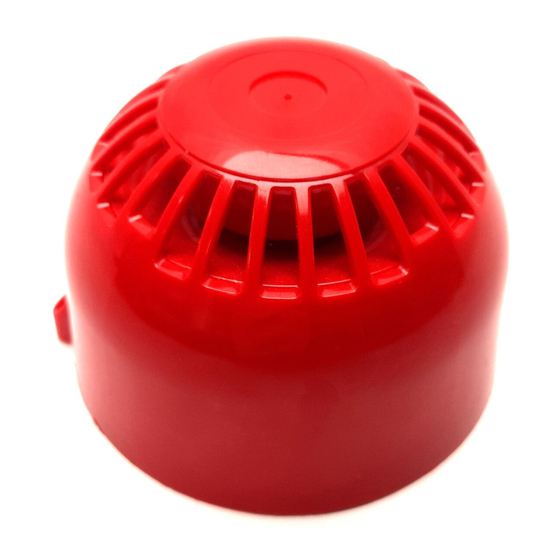

Sonos DC Sounder
IT PL
DIP SWITCH
dBA @ 1m
1 - 2 - 3 - 4 - 5
O - O - O - O - O
O - O - O - O - I
O - O - O - I - O
O - O - O - I - I
O - O - I - O - O
O - O - I - O - I
O - O - I - I - O
O - O - I - I - I
O - I - O - O - O
O - I - O - O - I
O - I - O - I - O
O - I - O - I - I
O - I - I - O - O
O - I - I - O - I
O - I - I - I - O
O - I - I - I - I
I - O - O - O - O
I - O - O - O - I
I - O - O - I - O
I - O - O - I - I
I - O - I - O - O
I - O - I - O - I
I - O - I - I - O
I - O - I - I - I
I - I - O - O - O
I - I - O - O - I
I - I - O - I - O
I - I - O - I - I
I - I - I - O - O
I - I - I - O - I
I - I - I - I - O
I - I - I - I - I
Declared Performance
EN54-3:2001+A1:2002
A2:2006 Subclause
5.2
5.3
5.4
5.5
5.6
5.7
5.8
5.9
5.10
5.11
5.12
5.13
5.14
5.15
5.16
5.16
5.16
5.17
Issue 20 (Dec 2014) INS533-20
Copyright © Texecom Ltd.
SE DK
mA
99 21
100 20
100 20
99 14
99 19
97 13
99 16
96 9
104 14
97 14
98 12
94 21
99 17
95 13
98 17
104 34
99 18
106 45
96 17
96 12
96 11
98 15
100 21
98 13
99 17
101 40
104 40
98 10
99 20
100 20
99 8
99 17
TYPE A TYPE B
PASS PASS
PASS PASS
PASS PASS
PASS PASS
PASS PASS
PASS PASS
PASS PASS
PASS PASS
N/A PASS
PASS PASS
PASS PASS
PASS PASS
PASS PASS
PASS PASS
PASS PASS
PASS PASS
PASS PASS
PASS PASS
