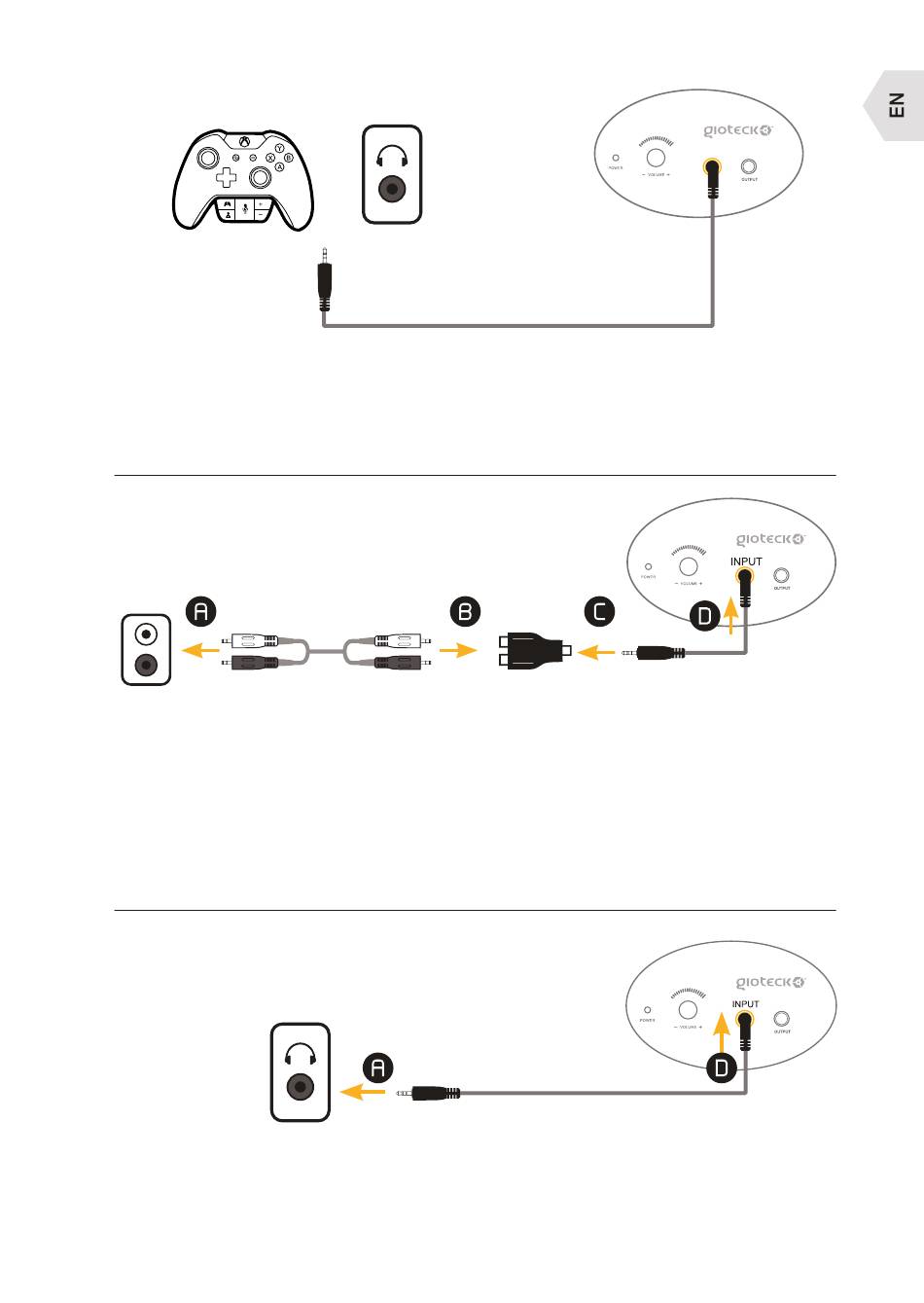

CONNECTION TO XBOX ONE
Option 1
Option 1 : Connect the Audio cable supplied with the RC-1 directly to the
Microsoft's Stereo Headset Adapter.
Option 2 : Connect the audio cable supplied with the RC-1 directly to the
headphone socket on your TV/Monitor.
CONNECTION TO TV, DVD, RECEIVER
AUDIO
OUT
(NOT INCLUDED)
1] Connect the female to female RCA cable (not included) to your chosen
AUDIO OUT source (A).
2] Connect the other ends of the RCA cable into the corresponding ports
of the RCA adapter (B).
3] Connect one end of the mini audio cable into the RCA adapter (C) and the
other end into the INPUT socket on the control panel (D).
CONNECTION TO HANDHELD DEVICE /IPOD / MP3
Connect one end of the mini audio cable into the headphone socket (A) of
your handheld device/iPOD/MP3 Player and the other end into the INPUT
socket on the control panel (D).
Option 2
