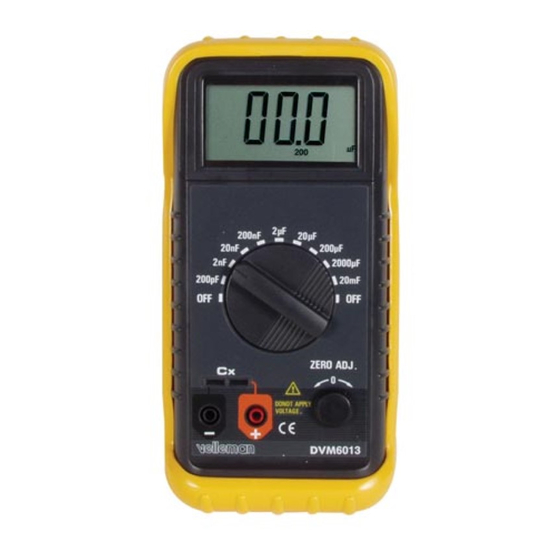

DVM6013 – DIGITAL CAPACITANCE METER
1. General
a) Introduction
Thank you for buying the DVM6013. This digital capacitance meter gives a direct reading of capacitance on a 3 ½-
digit LCD display. Nine ranges provide precise readings from 0.1pF to 20mF, which includes virtually all capacitors
used in maintenance services, schools, etc. The DVM6013's limited weight and small size make it a user-friendly
device.
b) Features
• LCD display with character height 21mm, 1999 counts.
• 9 ranges from 200pF to 20mF
• very accurate measurements
• external zero adjuster : ±20pF
• dual-slope integration A/D converter
• overload indication : "1"
• safe test probes
• dimensions : 31.5 x 91 x 189mm (H x W x L)
• weight : 240g (battery included)
2. Specifications
Maximum accuracy is achieved during a one-year period after calibration. Ideal circumstances require an operating
temperature of 18 to 28°C (64 to 82°F).
Power Supply
Battery-Low Indication
Fuse
Excitation Voltage
Operating Temperature
Storage Temperature
Range
200pF
2nF
20nF
200nF
2µF
20µF
200µF
2000µF
20mF
DVM6013
9V-battery NEDA1604 or 6F22 006P
the " " symbol is displayed
200mA/250V
2.8V peak MAX
0 to +40°C (+32 to +104°F)
-10 to +50°C (+14 to +122°F)
Resolution
0.1pF ± 0.5% of full scale ± 1 digit
1pF ± 0.5% of full scale ± 1 digit
10pF ± 0.5% of full scale ± 1 digit
100pF ± 0.5% of full scale ± 1 digit
1000pF ± 0.5% of full scale ± 1 digit
0.01µ F ± 0.5% of full scale ± 1 digit
0.1µ F ± 0.5% of full scale ± 1 digit
1µ F ± 1.0% of full scale ± 1 digit
10µ F ± 2.0% of full scale ± 2 digits
Accuracy Test Frequency
1
800Hz
800Hz
800Hz
800Hz
800Hz
80Hz
8Hz
8Hz
8Hz
