1. Introduction & Features
Thank you for buying the VTTEST11! Please read the manual thoroughly before bringing this device into service.
If the device was damaged in transit, do not use it and contact your dealer.
The VTTEST11 allows you to test and detect wiring and determine RJ12 connector polarity.

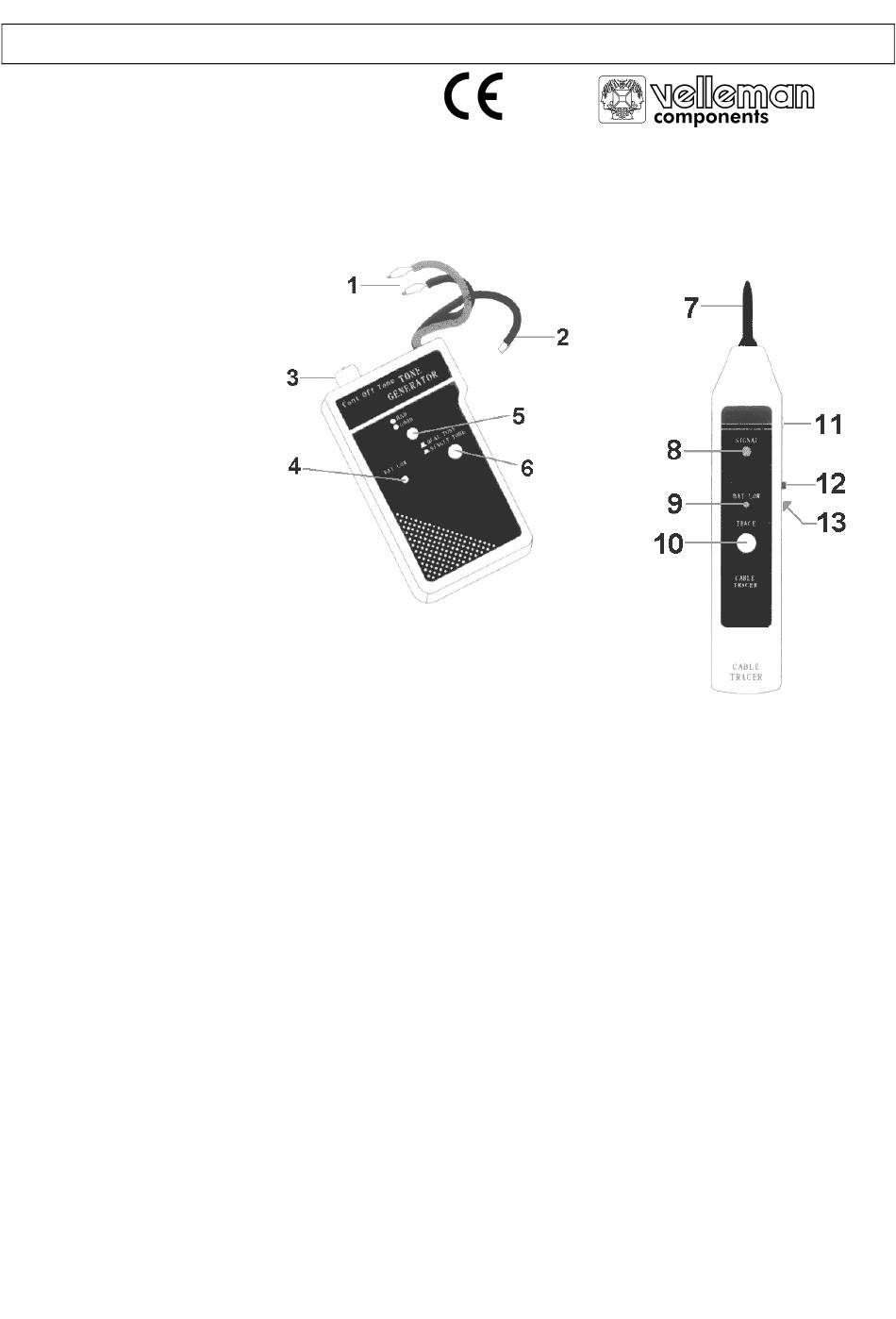

2. Contents
a. Tone Generator (A)
1. Test wires (2)
2. Test RJ12 plug
3. Mode switch
4. Low voltage indicator LED
5. Signal indicator LED
6. Audio signal switch
b. Cable Tracer Probe (B)
7. Test tip
8. Signal indicator LED
9. Low voltage indicator LED
10. Trace button
11. Volume control (on the side)
12. Mode switch (on the side)
13. Loudspeaker (at the back)
3. Technical Specifications
a. Tone Generator
Operating voltage
Operating current
Size (LxWxH)
Weight
Square wave output
1. Single audio frequency
2. Dual audio frequency
b. Cable Tracer Probe
Operating voltage
Operating current
Size (LxWxH)
Weight
Max. reception sensitivity
Max. output volume
VTTEST11
VTTEST11 – CABLE DETECTOR / TESTER
A
9Vdc ±15%
10mA (tone) ; 20mA (cont)
115 x 62 x 27mm
± 130g
± 10Vpp
± 900Hz
± 900-1000Hz
9Vdc ±15%
25mA (L)
80mA (SP @ max. volume)
100mA (S&L @ max. volume)
205 x 40 x 38mm
± 80g
>30mV
± 120dB
1
B
