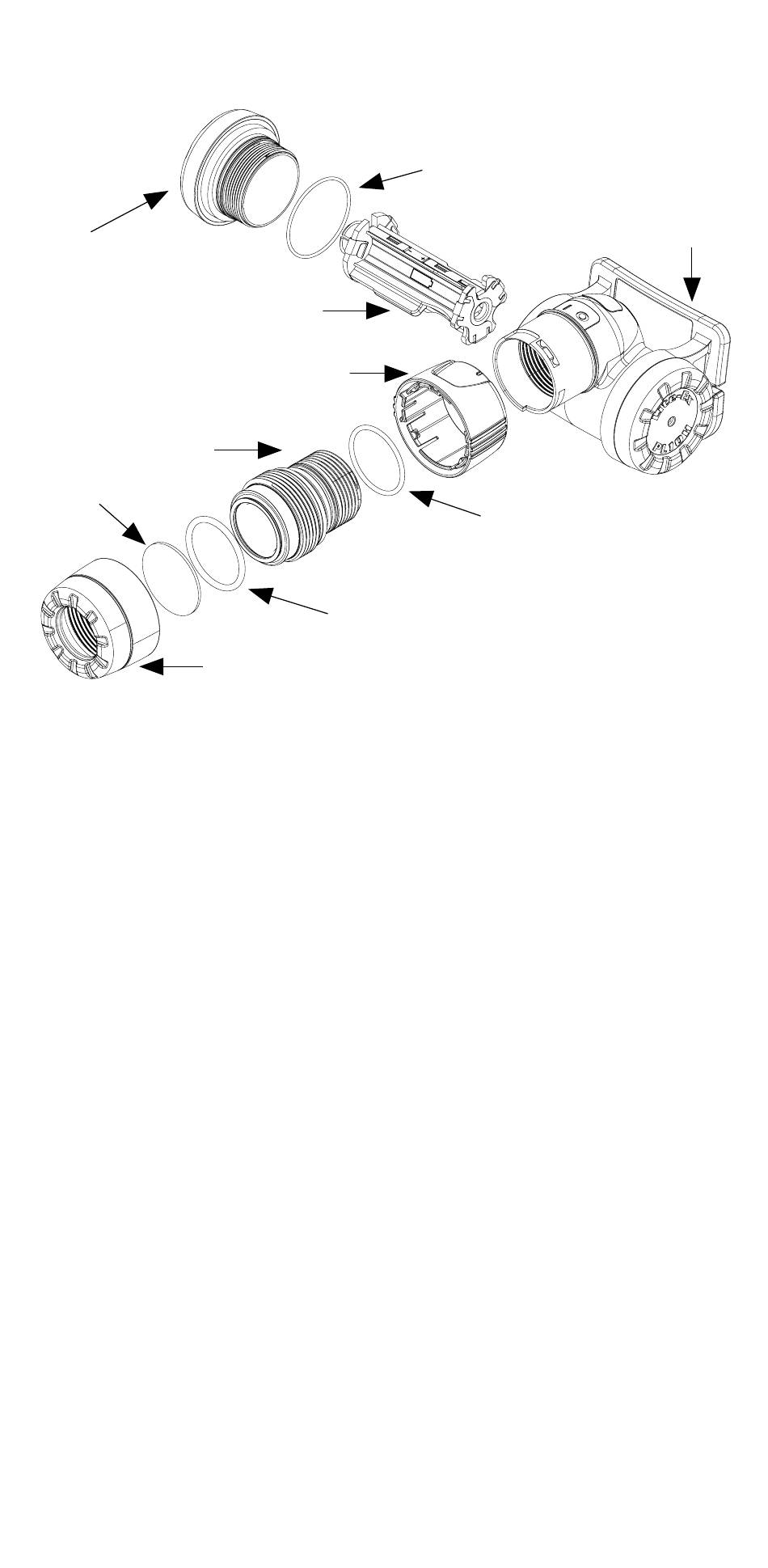

8.1 Assembly of the Lite-Ex PL 10e H
®
Sealing ring 27.0 x 1.0
Flashlight body
Cap
Battery adapter
Ring switch
LED housing
Disc
Sealing ring 22.5 x 1.5
Sealing ring 22.5 x 2.0
Lamp head
Fig. 1

8.2 Getting started

The supplied batteries must be inserted to begin with
(outside the Ex-area).
In order to be able to use the lamp in the Ex-area it must
be ensured that the lamp head and the body of the lamp
are screwed together tightly. The lamp can then be switched
on by lightly rotating the yellow ring switch clockwise.

8.3 Battery replacement

The batteries should be replaced if the level of luminance is
no longer deemed to be satisfactory.
It is advisable to change all 3 batteries at the same time.
Only the appropriate, approved types of batteries may be
used (see Table 1).
To replace the batteries turn the left-hand side cap (which
bears the „ecom" inscription) in the direction of the arrow
and then remove the entire battery adapter (see fig. 2).
You can then remove and exchange the batteries. After
inserting the new batteries (while observing the correct
polarity) the battery adapter can be reinserted (please ob-
