Instructions
SWIVEL REPLACEMENT
To replace swivel:
• Turn off or lockout air/fluid supply
to reel
• Remove all tension from reel (see
Tension Adjustment)
• Disconnect supply hose to swivel

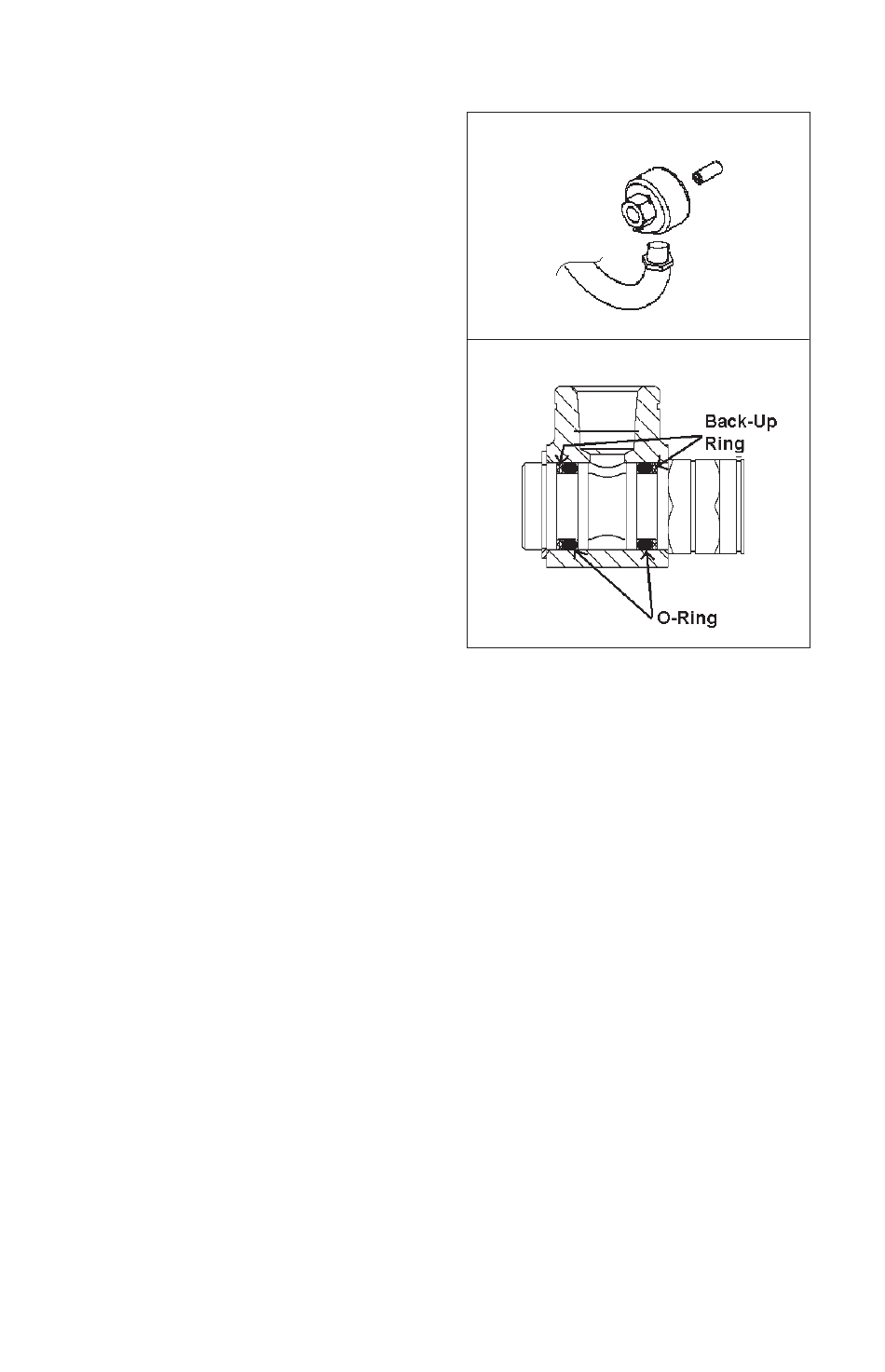

• (Fig. 12) Remove swivel by loosen-
ing hex end (round body is 24mm or,
square body is 27mm) and disconnect
spool hose.
• Reverse above procedure and
install new swivel (use thread tape or
sealant on connections)
O-RING REPLACEMENT
To replace o-ring:
• Remove swivel from reels as per
"Replace Swivel" procedure.
• Remove retaining ring and slowly
remove outer swivel from inner shaft
• Remove old o-rings and back-up rings.
• (Fig. 13) Install new o-rings and back-up rings, using supplied lubricant.
• Reverse above procedure and install new swivel (use thread tape or
sealant on hose connections)
Preventative Maintenance
HOSE
• Check wear near hose-stop and end fitting. If barb fitting or hose is dam-
aged cut off hose end and reattach new barb fitting and clamp.
• Check wear along entire hose length. Replace if needed.
SWIVEL
• Check leaks by spraying with soapy water from hand spray bottle. If
bubbles form, replace swivel.
ROLLER GUIDE
• Check rollers for wear. If rollers on one side have more wear than the other
side, then guide position might need readjustment (fig. 4).
MOUNTING
• Check tightness of mounting bolts and condition of safety cable/chain and
attachment points.
Fig. 12
Fig. 13
8
