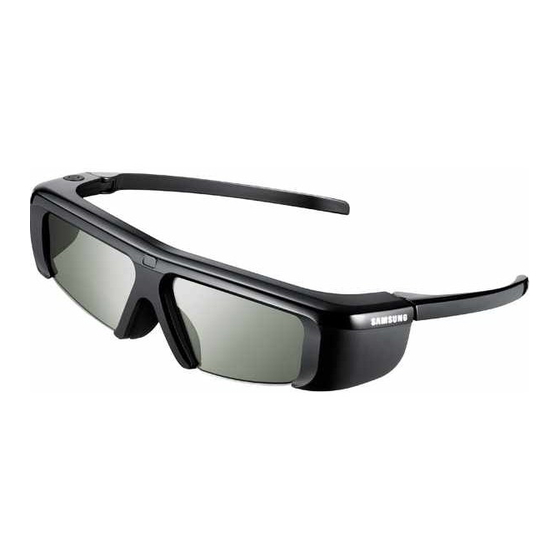

3D Active Glasses
SSG-S3000GR
Product Overview
The 3D glasses are designed for the viewing of 3D video.
To enjoy the 3D experience, 3D glasses and a Samsung TV are needed.
This product allows you to connect devices via the 2.4GHz RF band.
✎ The Samsung 3D glasses cannot connect to a non-Samsung wireless communication device.
✎ This product is only compatible with the Bluetooth headphone connection function on a Samsung 3D TV.
✎ This product can only connect to a Samsung 3D TV (D Series) released in 2011 (LED 6000 or later, or PDP
8000).
Detailed View
Rear view
Front view
Speakers
Charging status LED
USB port
Connects to a security wire
Pairing the 3D Glasses
What is Pairing? Pairing is a process of connecting 3D glasses and a 3D TV and exchanging data
between the two devices.
‹ Operating range
Recommended pairing distance
10cm
2~6m
Recommended viewing distance
Power (pairing) button
Recommended viewing
2~6m
distance
Recommended pairing
10cm
distance
Volume buttons
Reset button
✎ Ensure your Samsung TV and 3D glasses are within a
distance of 10cm while pairing or when a device search is in
progress.
✎ The maximum viewing distance depends on obstacles
(a person, metal, walls, etc.) or electromagnetic waves.
‹ Pairing for the first time
Set Store Demo mode to on, and perform pairing
following the steps below.
1. Change the TV display mode from Store Demo to 3D
mode.
2. Briefly press the power button on the 3D glasses. The
glasses will power on and pairing will start.
✎ The power button LED will blink from red to green.
When the pairing is completed, the LED will turn off.
3. The message "3D glasses are connected to TV.
Connecting to bluetooth headphone..." will be
displayed on the TV screen when the pairing is
successfully completed.
✎ You can view 3D picture when a connection to the
3D glasses is established.
✎ If the pairing failed, the 3D glasses will power off.
