What's New And Improved in the MK2
[Deep Edit]
The MK2's "Deep Edit" function lets you edit all effect parameters that make up the patch, set the
parameters that are controlled by the unit's three control knobs, and save these settings to memory.
With the original MAGICSTOMP, full editing and control knob assignment was performed using a
computer running the "Sound Editor for MAGICSTOMP" application. With the MAGICSTOMP MK2,
the same operations can be performed on the MAGICSTOMP MK2 unit itself.
→ Refer to page 2 in this book for more information.

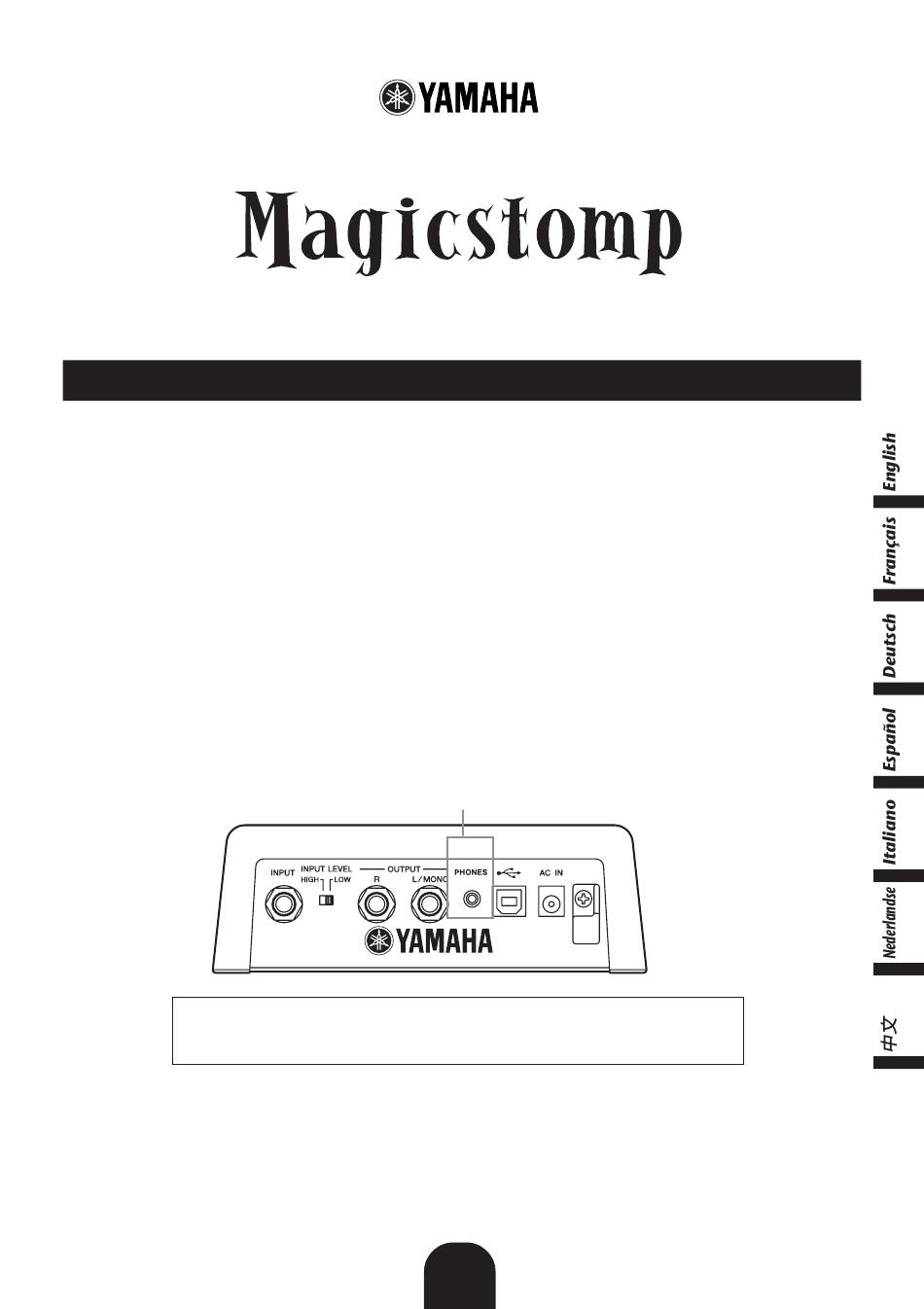

[PHONES Jack]
The PHONES Jack (stereo mini) lets you practice or edit patches while monitoring the MAGICSTOMP's
sound output through a pair of headphones. (Output level/Impedance: –10dBm/150Ω)
* Use the Volume Knob to adjust the volume.
* Output is still delivered from the OUTPUT jack when a pair of headphones is connected to the PHONES jack.
When monitoring through a pair of headphones, make sure you
properly adjust the volume so as not to damage your hearing.
[Auto Feedback Reduction Function]
Available in the "AcousticMulti" effect, the Auto Feedback Reduction (AFR) function can be operated
in real-time to neutralize problem feedback (howling).
→ Refer to page 4 in this book for more information.
GUITAR EFFECTS PROCESSOR
PHONES jack
1
