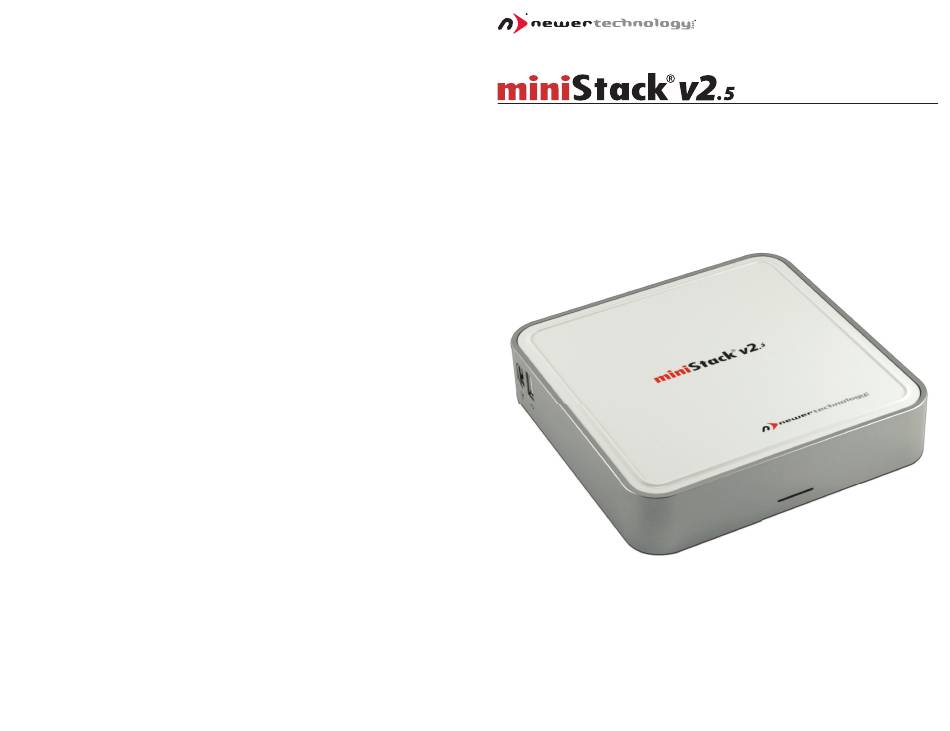

3.5" SATA Hard Drive
External Storage with integrated
Les informations contenues dans la présente sont, au mieux de nos connaissances, exactes et fi ables. Newer Technology, Inc. n'assume aucune
responsabilité à l' é gard d' e rreurs contenues dans la présente. Newer Technology, Inc. réserve le droit d'apporter des modifi cations dans les
FireWire 400 & USB 2.0 powered hubs
caractéristiques et/ou la conception de ce produit sans préavis. Les photographies contenues dans la présente peuvent diff érer du produit que vous
avez reçu et ne sont utilisées qu'à titre d'illustration. Newer Technology, Inc. n'assume aucune responsabilité en cas de diff érences entre le produit
décrit dans ce manuel et le produit que vous recevrez.
Die hierin enthaltenen Informationen sind nach bestem Wissen korrekt und zuverlässig. Newer Technology, Inc. übernimmt jedoch
keine Verantwortung für eventuelle Fehler darin. Newer Technology, Inc. behält sich das Recht vor, Änderungen der technischen
Daten und/oder der Ausführung dieses Produkts ohne Vorankündigung vorzunehmen. Die Fotos hierin können von dem Produkt,
das Sie erhalten, abweichen und dienen lediglich zur Anschauung. Newer Technology, Inc. übernimmt keine Verantwortung für
Unterschiede, die zwischen dem in diesem Handbuch beschriebenen Produkt und dem von Ihnen erhaltenen Produkt bestehen können.
本書に含まれている情報は正確で信頼性のあるものとします。 Newer Technology, Inc. は、 本書に含まれるいかなる誤り
についても責任を追わないものとします。 Newer Technology, Inc. は、 本製品の仕様またはデザイン、 またはその両方を
予告なく変更する権利を留保するものとします。 本書中の写真は実際に入手された製品とは異なる場合があり、 説明のみ
を目的として使用されています。 Newer Technology, Inc. はこのマニュアルに説明されている製品とお客様が入手された
製品との間のいかなる相違についても責任を負わないものとします。
Owner's Manual &
NWTMANMSV25ASSY
Assembly Guide
©2008 Newer Technology, Inc. All Rights Reserved
Revision 1, 5/08 - MCS
