1
Line

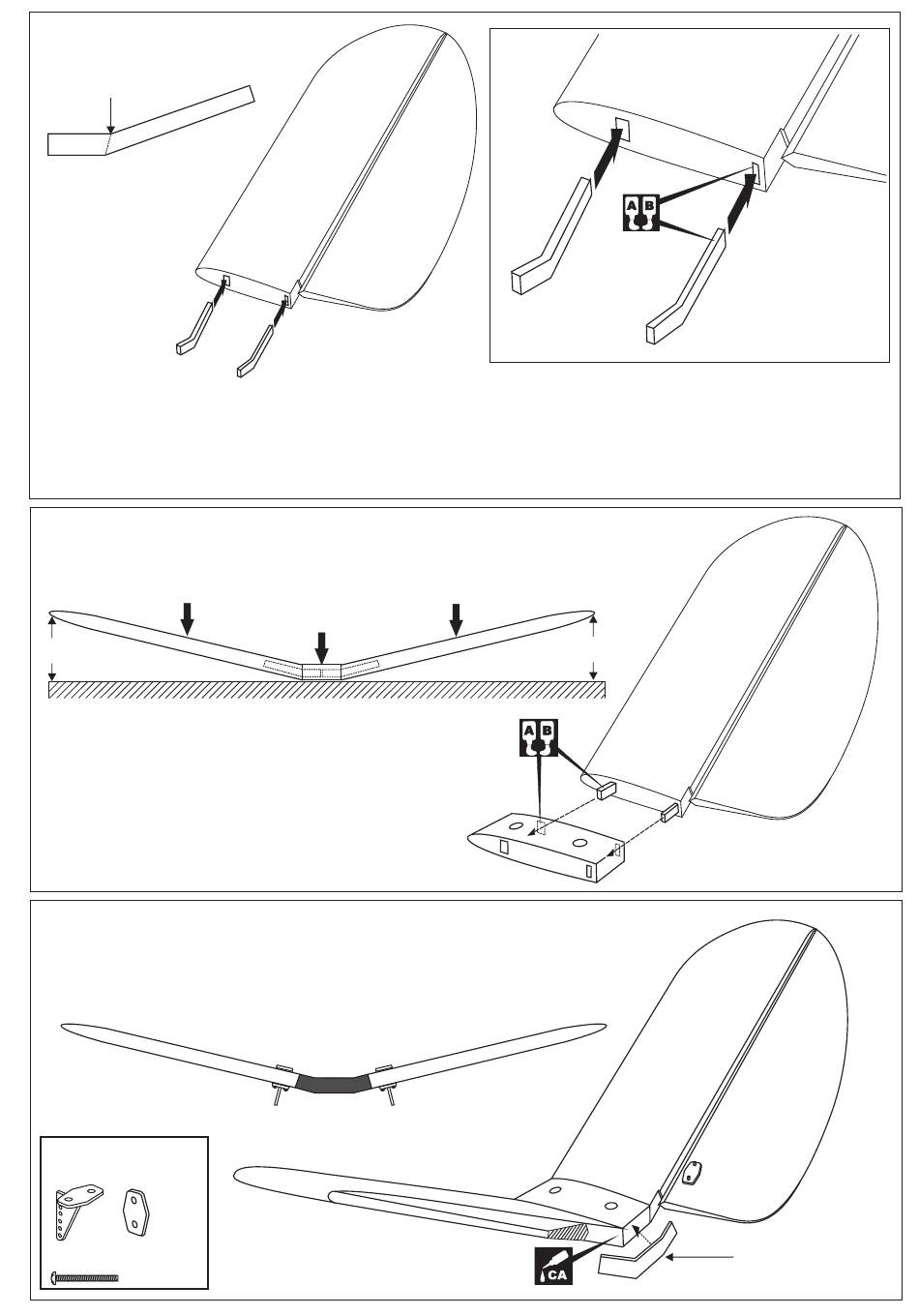

1- Using a pencil, mark the line on the braces.
2- Trial fit the horizontal tail joiner into one of the horizontal tail panel, It should insert smoothly up to the line marked
above. If the fit is over tight, it may be necessary to lightly sand the brace.
3- Remove the brace and coat one half of the brace with 30 minute epoxy up to the line.
4- Install the epoxy-coated side of the brace into the horizontal tail brace cavity up to the line.
5- Do the same way with other horizontal tail.
2
LEFT HORIZONTAL TAIL PANEL
A
Carefully slide the horizontal tail panels together,
ensuring that they are accurately aligned. Firmly
press the two horizontal tail panels to the
horizontal tail center, Making sure that the "V" of
dihedral brace is positioned correctly.
Control horn
Plastic control horn
and back plate
.....2
2x30mm screw
...........4
RIGHT HORIZONTAL TAIL PANEL
HORIZONTAL TAIL CENTER
A = A'
KA3
Control horn
Front tail brace (G)
Left and Right
A'
Tail brace (S)
Left and Right
Rear tail brace (Ka3)
