4. Mounting Onto Devices

For instructions on mounting the board onto a monitor or projector, see the respective
device's operating instructions. With some monitors, the SB-02AM optional adapter
may be required.
For connection, use 75 Ω coaxial cables with a thickness and performance of 5C-FB or
greater. Use BNC connectors.
NOTE
• Signals could be adversely affected and images could break up by the cables used
for connection.
• When the board is mounted on the projector, the picture may be disturbed during
access point search processing with the projector's wireless LAN.
• When installing this board, ensure that the top side of this board is facing the rear of
the display. This board and the display may be damaged if inserted with the wrong
orientation.

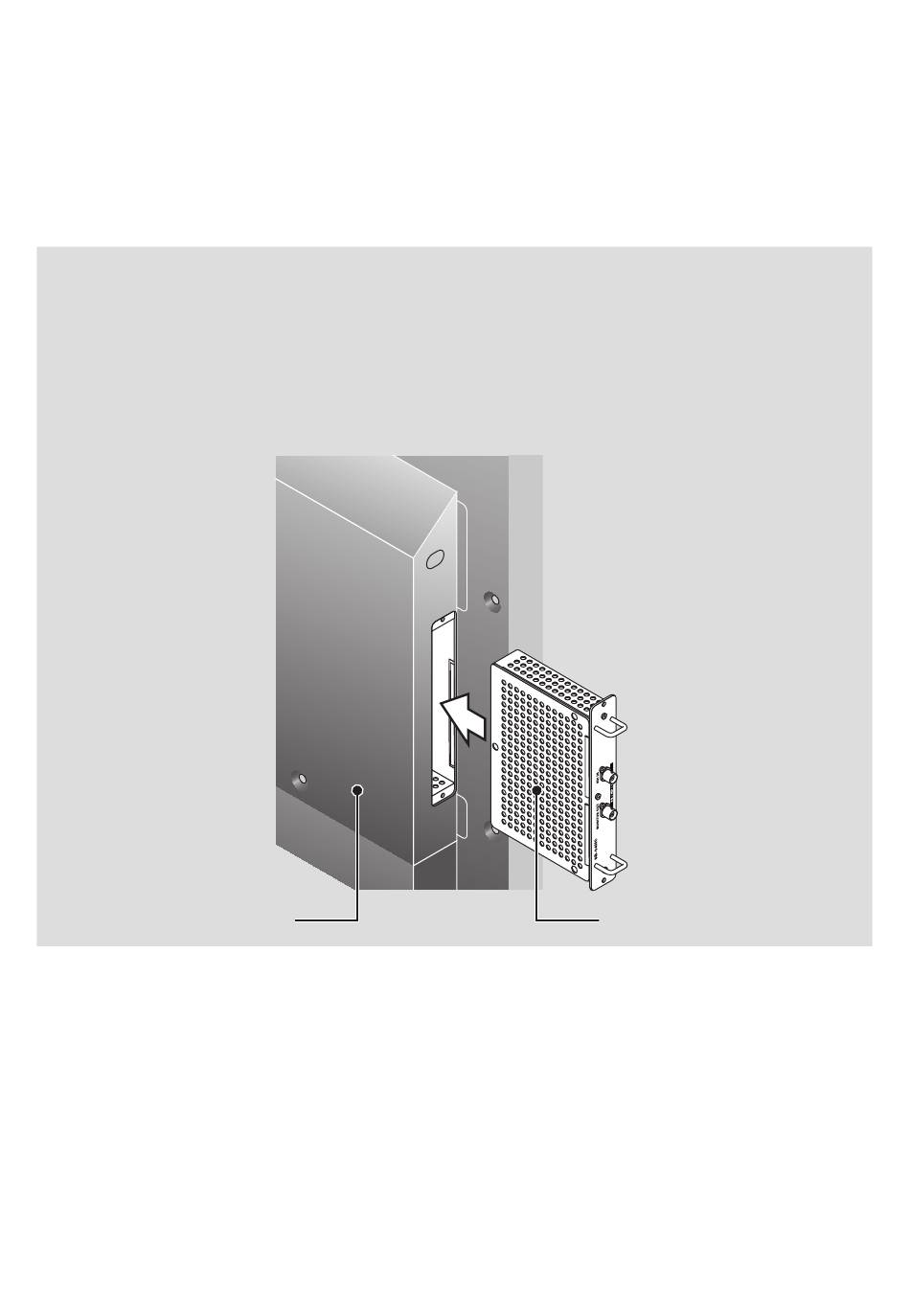

Rear of the display
Top side of this board
