Redundant MADI Function

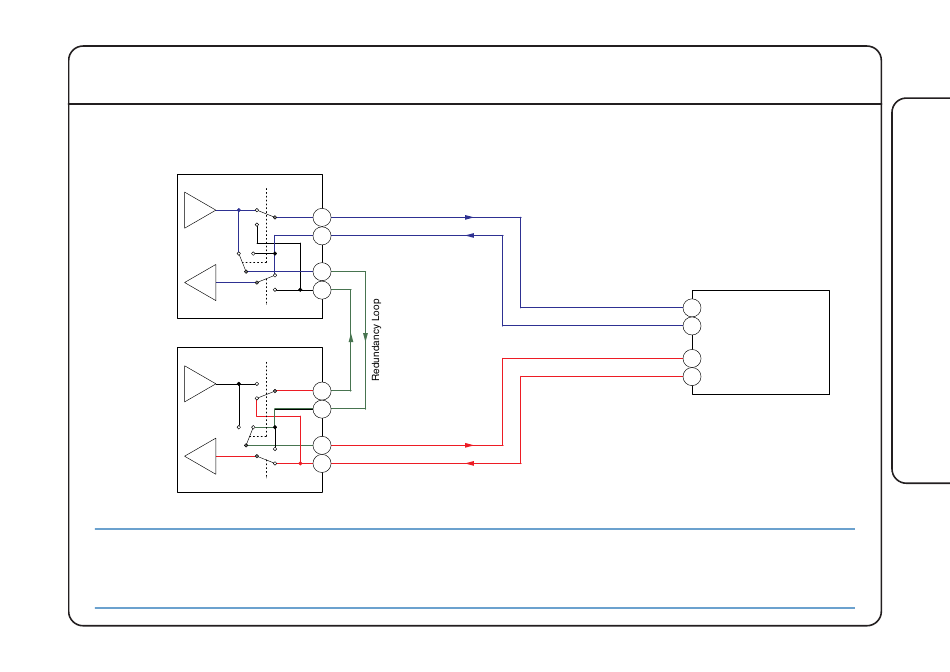

• Simple schematic illustrating the MADI changeover function in Loop redundancy mode.
BR C/O
Tx
Main
Blackrock
Rx
Fibre C/O
BR C/O
Tx
Backup
Blackrock
Rx
Fibre C/O
Alpha-Link LIVE-R will automatically switch to it's backup fibre port in the event of a main fibre failure with
audio and control still connected to the main Blackrock via the Redundancy Loop. Also if a Blackrock Core Swap
is initiated the Alpha-Link LIVE-R will automatically switch to it's backup fibre.
Tx
Main Fibre Port
Rx
Tx
Rx
Tx
Rx
Tx
Backup Fibre Port
Rx
Rx
Tx
Alpha-Link LIVE-R
Rx
Tx
