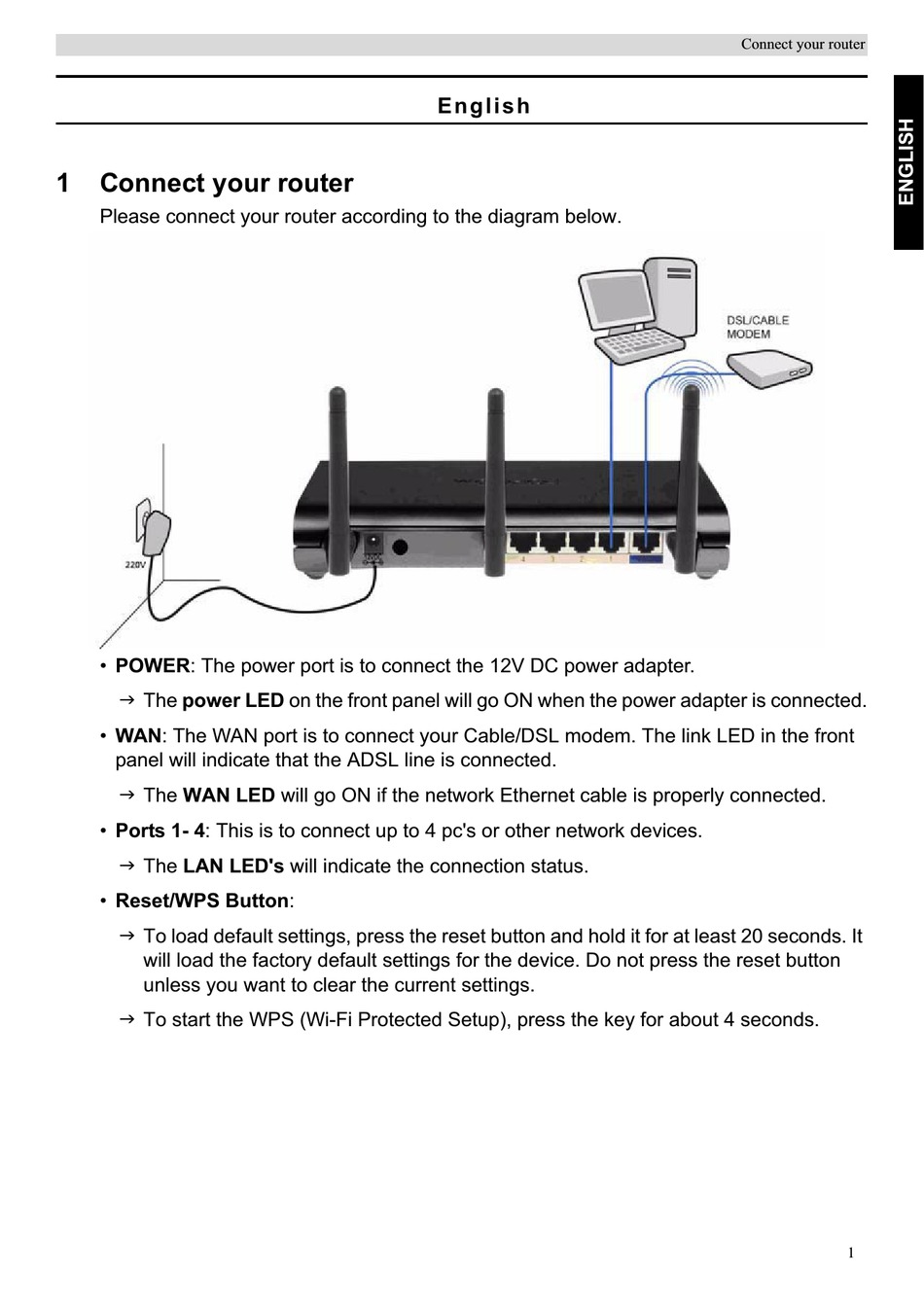

Connect your router

Please connect your router according to the diagram below.
• POWER: The power port is to connect the 12V DC power adapter.
J The power LED on the front panel will go ON when the power adapter is connected.
• WAN: The WAN port is to connect your Cable/DSL modem. The link LED in the front
panel will indicate that the ADSL line is connected.
J The WAN LED will go ON if the network Ethernet cable is properly connected.
• Ports 1- 4: This is to connect up to 4 pc's or other network devices.
J The LAN LED's will indicate the connection status.
• Reset/WPS Button:
J To load default settings, press the reset button and hold it for at least 20 seconds. It
will load the factory default settings for the device. Do not press the reset button
unless you want to clear the current settings.
J To start the WPS (Wi-Fi Protected Setup), press the key for about 4 seconds.
