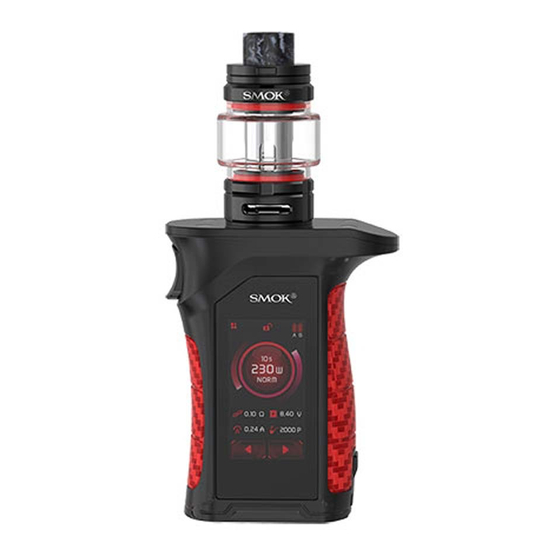

SMOK MAG P3 KIT Handbuch

MAG P3 KIT
General Safety Information
• This leaflet contains important safety information. Please read this leaflet carefully before
using the product. Inappropriate use or handling of this product may be harmful.
• This product is only intended to be used as an e-cigarette, for the consumption of certain
e-liquids. Do not use this product for any other purpose. This product is not designed to be a
smoking cessation device.
Please use the atomizer provided in this kit, or other SMOK-manufactured atomizers and coils
•
which meet the resistance range required by the mod. Do not use atomizers or coils that are
not in the range of resistance required by the mod in this kit..
To use this product, e-liquid must be inserted into the tank/pod – as explained below. ONLY
•
E-LIQUIDS WHICH COMPLY WITH EUROPEAN UNION LAW, AND OTHER RELEVANT LAW,
SHOULD BE USED IN THIS PRODUCT. Consult a reputable e-cigarette and e-liquid dealer for
advice on what e-liquids can be used in this product.
Before using this product, please read carefully any information and instructions for safe use
•
relating to the e-liquid which is vaped using this product.
•
The SMOK product must not be offered for sale outside of, independently or separately to, the
box or this leaflet.
Instructions For Safe Use
• Handle this product with care at all times:
-
Avoid damage to the product's internal and external components.
- Keep this product dry at all times. Do not immerse this product in water as the product is not
waterproof. Do not immerse this product in corrosive or conductive solution as serious
damage like short circuit may occur.
-
If you drop this product, make sure:
the product is not broken, cracked or smashed;
(1)
(2) there is no leaking or leakage of e-liquid;
(3) components are not loose and have not come apart;
(4)
the product functions normally and as intended;
(5)
there is no damage to the drip tip. Clean the product particularly the drip tip. Where
necessary, take the product for a service to a reputable e-cigarette dealer with the guarantee.
-
Do not attempt to disassemble or assemble the product by yourself as damage or personal
injury may occur.
-
Mechanical shock, extrusion, beating, or shaking to the device are strictly forbidden to
prevent damage to circuit and battery cell.
-
Follow storage instructions (below).
• Before using this product, please read this leaflet, in full, carefully.
• Before using this product for the first time, ensure the product contains all relevant parts and
components.
The Kit Includes
EU Standard Edition
• 1 x MAG P3 Mod
• 1 x TFV16 Tank (9ml)
• 1 x TFV16 Mesh 0.17Ω Coil(Pre-installed)
• 1 x TFV16 Dual Mesh 0.12Ω Coil
EU 2ML Edition
• 1 x MAG P3 Mod
• 1 x TFV-Mini V2 Tank (2ml)
• 1 x Mini V2 S1 0.15Ω Single Mesh Coil (Pre-installed)
• 1 x Mini V2 S2 0.15Ω Quadruple Coils
Components
1
2
3 4
6
5
8
7
9
The illustration is for reference only, please refer to the specific item.
• Before using this product for the first time:
Instructions on how to fill this product with e-liquid
Before the e-liquid in a SMOK product runs out, add e-liquid into the tank/pod. This should be
•
done before the e-liquid runs out to avoid burning the coil.
• For instructions on refilling the SMOK product with e-liquid, users should refer to these
instructions below, and the instructions for bottles containing e-liquid.
• Users should first ensure that the nozzle attached to an e-liquid bottle can easily connect – and
slot into – the SMOK tank. The nozzle attached to an e-liquid bottle must be smaller in diameter
than the opening (filling slot) in the SMOK tank. The opening (filling slot) of the SMOK product is
below. The nozzle of an e-liquid bottle must be smaller than the diameter measurements below.
Size of the filling slot of the tank
12.32mm
TFV16 Tank
This product doesn't include e-liquids, or containers containing e-liquids. E-liquids
must be bought separately – and then inserted into these products. When filling or
refilling a SMOK tank/pod, please check that the nozzle attached to an e-liquid
container:
- is securely attached to the e-liquid container itself.
- the nozzle is no less than 9mm long.
- that the nozzle size is narrower than the filling slot of the
SMOK tank to avoid the risk of dermal contact and accidental ingestion of e-liquid.
Filling Instructions
01
02
- Filling and refilling should be carried out in calm, stable surroundings. Refilling should not be
carried out in cars, trains, planes, boats while moving, or other places which may result in spillage.
- In the case of spillage during filling or refilling, please immediately:
(1) Secure and close the SMOK tank and the e-liquid refill container;
(2) Keep those products outside the reach of children, pets and animals;
(3) Immediately clean spillage by wiping and collecting spillage in a dry paper towel and
disposing of that towel well outside of the reach of children, pets and animals;
(4) Clean spillage area with disinfectant or other house-hold cleaning products. Gloves or
other personal protective equipment should be used to clean spillage when necessary. Wash
hands thoroughly after handling. Spillages should be cleaned-up as soon as possible.
Instructions For Storage
Store:
•
-
Out of reach of children.
- Locked up.
-
Separate and away from food and drink.
-
Separate and away from medical products and medication.
-
In a ventilated and dry indoor environment at room temperature to avoid short circuit caused
- by touching with other metal materials.
-
Well away from pets and animals.
Do not store for long periods containing an e-liquid. If the product is not going to be used for a
•
2-3 days period: remove the atomizer and pour out the inside e-liquid to avoid e-liquid
penetrating into the product and shortening the product's life-expectancy. To clean the inside
atomizer, go to a dealer. Do not clean the atomizer by yourself.
In case of not using the device for extended periods, turn it off and take out the battery if it is a
•
removable battery product (turn off the MOD in cases of built-in battery cells), seal off the
battery, mod and atomizer and store them separately.
• Do not place this product in the outdoor or in car under strong sunlight as overheating and
circuit damage may occur hence cause fire danger because of the high temperature.
Drip Tip Glass Tube
Top Cap
Instructions on servicing and disposal
• This product should be serviced every 6 months by a reputable e-cigarette dealer. Please retain
a copy of your guarantee and provide dealers with the guarantee for servicing.
If this product fails a service, is broken, or otherwise malfunctions: do not use this product,
•
and dispose of this product appropriately.
• For disposal – Do not discard or dispose this product in general waste cabin, please follow the
local law and regulations on battery recycling and disposal.
• Batteries should be removed and disposed of separately.
Warnings Regarding Children
KEEP THIS PRODUCT OUT OF REACH OF CHILDREN.
•
• This product is intended to contain nicotine containing -e-liquid. NICOTINE
CONTAINING E-LIQUID IS DANGEROUS. CHILDREN MUST NOT GAIN ACCESS TO
E-LIQUIDS.
• This product contains small parts which may pose a choking hazard to children.
Health Warning
The health warning below applies when the product is used as designed and charged / filled with
nicotine-containing liquid.
• This product should not be used by pregnant or breastfeeding women without seeking advice
from a doctor or health care professional.
Contra-indications
• You should consult your doctor or another health care professional before using this product if:
You have heart disease (such as a previous heart attack, stroke, or disorders affecting heart
-
rate and rhythm).
- You have respiratory problems (such as emphysema, asthma, bronchitis or other diseases that
affect your respiratory tract).
-
You have an overactive thyroid gland (or other disease that affects the thyroid, or if you have
adrenal or thyroid gland disorders).
- You have diabetes (use of nicotine may require changes to your medication, and more careful
monitoring of blood sugar levels).
- You are pregnant or breastfeeding (Nicotine is able to cross the placental barrier, and presents
risk to the unborn child. Nicotine use in pregnancy should be minimised or avoided altogether.
Nicotine can be excreted in breast milk).
-
You have CVD, renal or hepatic impairment, lung disorders or lung conditions.
-
You have stomach or duodenal ulcers.
Smoking and to a lesser extent nicotine may affect the uptake of certain medications.
Before you switch to a non-smoked nicotine source, you may need to talk to your doctor about
the need to adjust dosage of some drugs. (These include, but are not limited to, clozapine,
heparin, propranolol, ropinirole, and theophylline).
Possible Adverse Effects
• While vaping, users may experience possible adverse effects. To avoid adverse effects, it is
recommended to use the e-liquid with lower nicotine content or no nicotine. Adverse effects
may include:
- Irritation of the mouth and throat
- Cough
- Dizziness
- Nausea/vomiting
- Hiccoughs/hiccups
- Chest palpitations
Indication for delivery per doset
This product has been designed and manufactured to deliver nicotine doses at consistent levels
during normal conditions of use, over the course of the expected lifetime of the SMOK product.
Nicotine delivery per dose will depend on the e-liquid used. For e-liquid containing 3mg/mL of
nicotine: approximately 105 ug/10 puffs; For e-liquid containing 6mg/mL: approximately 216
ug/10 puffs; For e-liquid containing 12 mg/mL: approximately 408 ug/10 puffs. This is an
indication and estimate only.
Medical Contact and Poison Center Information
For emergencies – including ingestion or swallowing of e-liquid – seek immediate medical help
•
at your local hospital's Accident and Emergency Department or phone 999.
Otherwise, for medical advice or information you should contact your GP or NHS 111 (or NHS
•
24 in Scotland) on 111 (for 24 hour health advice).
The National Poisons Information Service in the United Kingdom is unable to provide clinical
•
advice to members of the public.
Complaints And Adverse Events
Please report complaints or adverse events to:
Shenzhen IVPS Technology Co., Ltd.
Address:101, Building #69, Liantang Industrial Area, Tangwei Community,
•
Fenghuang Subdistrict, Guangming District, Shenzhen, China
Website: www.smoktech.com
•
• Email: support@smoktech.com
• Phone number: + 86 755 86347180
Contact Details Of Manufacturer
Shenzhen IVPS Technology Co., Ltd.
Address:101, Building #69, Liantang Industrial Area, Tangwei Community,
•
Fenghuang Subdistrict, Guangming District, Shenzhen, China
• Website: www.smoktech.com
• Email: support@smoktech.com
• Phone number: + 86 755 86347180
English / 01
• 1 x Bulb Glass Protective Silicone Sleeve
• 1 x Glass Tube Replacement
• 1 x USB Cable
• 1 x User Manual
• Spare parts
• 1 x USB Cable
• 1 x User Manual
• Spare Parts
Drip Tip
1
Top Cap
2
Glass Tube
3
Coil Head
4
Airflow System
5
Base
6
TP Screen
7
Fire Key
8
USB Port
9
English / 03
03
English / 05
English / 07
Base
Coil Head Airflow
System
English / 09
English / 11
English / 13
-
Do not overcharge the batteries. If the batteries overheat do not use this product.
-
Do not place the product in a hot or humid environment.
-
Do not expose your product to hot, cold, damp or direct sunlight.
-
KEEP THIS PRODUCT OUT OF REACH OF CHILDREN.
• DO NOT use this product if:
-
broken, leaking, if parts are cracked or deformed, or if the product has malfunctioned.
- abnormal heat occurs during vaping or charging. Do not overcharge the batteries.
- there is concerning leakage of e-liquid from the tank/pod.
-
if conductive or corrosive liquids enter the mod.
- there is any perceptible change in flavor of the e-liquid.
- where microbial contamination or other contamination is suspected.
-
the tank/pod is empty or almost empty. E-liquid should always be in the tank/pod to avoid
dry heating and burning the coil.
-
THIS PRODUCT SHOULD BE SERVICED EVERY 6 MONTHS. If the product fails a service, do not
use. Defective items and parts must be replaced before re-use.
• General use:
-
Do not eat, drink, or smoke while using this product.
- This product must be used under temperature 0-40℃.
- Always close the airflow slot after using this product.
-
Use this product in moderation and in accordance with the instructions of use.
-
Vaping products, including this product, should not be used in prohibited or restricted areas.
- Vaping products, including this product, should not be used in high oxygen environments.
-
We recommend that you do not use vaping products, including this product, while driving.
-
Using electronic cigarettes may create undesirable effects to you and the people around you.
Instructions on how to use this product for the first time
• Before purchasing the product, please verify that the product is an authentic SMOK product.
Fake and counterfeit products may be harmful to personal health. To verify the product, please
use our new AB product verification code system. Note: Please carefully keep the AB
verification codes on the package. AB verification codes are required and will be used in
product verification and after-sales service.
-
Please download and install IVPS Tour APP.
- Please refer to:
htpps://www.smoktech.com/new-anti-counterfeiting-system,
and then follow the steps described in THE NEW
ANTI-COUNTERFEITING SYSTEM to verify your product.
-
Only the verified product can get warranty service.
-
If you have any questions, please contact SMOK via e-mail, phone or our website to get more help.
English / 02
- Install applicable lithium battery follow the directions for positive and negative poles (see below).
- Connect the power supply to the tank.
- Make sure the set wattage is in the range of recommended wattage for coil,the version of the
coil and the recommended wattage are printed at the front and back of the coil.
- Touch or to adjust the wattage.
Resistance
3
(1) Power on: While the mod is off, fast press Fire Key 5 times to turn it on.(If you have set
passwords, you need to input your passwords first)
(2) Power off: Press the Fire Key five times until the interface displays "POWER OFF? Yes or No";
choose "Yes" to power off. Alternatively, you can touch the screen and choose
"SETTING"->"GENERAL"->"Power Off" to turn off the device.
(3) Fast press the Fire Key three times to lock your device.
(4) Move the arrow to the right to unlock the touch function, and then you can touch the icons
on the interface to perform actions.
(5) Touch or to adjust the current wattage or temperature value;
(6) You can touch "Setting" -> "Passcode" to set your own passwords.
- Make sure the coil is tightly screwed onto the atomizer base.
- Fill the tank completely with e-liquid (see below).
- Take 2-3 puffs while the power is off and without pressing the Fire Key.
- Begin vaping.
- If e-liquid is sucked through the SMOK product into the mouth, immediately wash your mouth
out completely, seek medical assistance if needed (see below), then remove the atomizer and
clean the spillage before vaping again.
English / 04
Before filling the e-liquid, the user had better drip some e-liquid on the coil head for better
e-liquid saturated and avoid coil heating without e-liquid.
1) The tank uses top refill system, you just need to hold the tank with one hand, and use another
one to screw off its drip tip.
2) Add e-liquid through the slot, and pay attention not to drip it into the central airflow tube.
3) Close the cap carefully and firmly. Then let it stand for several minutes to get the organic
cotton completely saturated.
Please use a securely attached
nozzle no less than 9mm long
when refilling e-liquid
- Before filling or refilling the SMOK tank, please read carefully these instructions below. Please
also read carefully the filling instructions provided with the e-liquid which you vape.
-
Before filling the SMOK product with e-liquid: first check that the nozzle on the e-liquid container is
securely attached to the e-liquid container itself, and that the nozzle is at least 9mm long.
-
Then check that the nozzle attached to an e-liquid refill container can easily connect – and slot
into – the SMOK tank. The nozzle attached to an e-liquid refill container must be narrower, and
smaller in diameter, than the opening in the SMOK tank.
- Carefully connect the nozzle attached to an e-liquid refill container, into the opening (i.e. filling
slot) of the SMOK tank.
- Ensure that the nozzle of the e-liquid refill container is fully inserted into the filling slot of the SMOK
tank, and that there is no release of e-liquid until the nozzle is fully inserted into the filling slot by
refraining from touching the release mechanism of the e-liquid refill container (see instructions for the
container containing e-liquid) until the nozzle is fully inserted into the SMOK tank.
-
Once the nozzle is fully and securely inserted, and the docking system is therefore fully
connected, release e-liquid from the e-liquid refill container (see instructions for the e-liquid
refill container). Release of e-liquid from the e-liquid refill container should be slow, careful
and monitored by users to ensure absolutely no spillage is possible.
-
Filling and refilling should be carried out, outside the reach of children.
English / 06
Instructions regarding battery installment and charging
(1) Open the battery cover as the picture shows;
(2) Place the batteries into the device according to the correct directions;
(3) Close the battery cover.
1 2
Please use 18650 batteries produced by a reputable company.
•
• Do not charge this product in hot, cold, damp environment or under direct sunlight as short
circuit may occur.
• Do not charge this product near fire, hot stove or combustible or explosive materials or gas.
Do not use a battery charger higher than 5V. Please use the original charging line and
•
reputable charger.
•
Please unplug the USB cable within 2 hours after battery is fully charged to extend the life of
the battery.
• If the battery is found peeling, bulging, overheating, leaking, emitting foreign odor etc., please
stop using the device immediately and contact the dealer.
Instructions on changing the coil
After dripping e-liquid into a tank with a new coil, please stand the tank for 15 minutes to avoid
•
the possibility of coil-burning.
Please make sure the set wattage is in the range of recommended wattage for coil using.
•
• Replace coil head.
Screw off the base, pull out the old coil and install a new one in .
Control air input.
•
Rotate the adjustable airflow system to control air input.
English / 08
This product contains nicotine which is a highly addictive substance.
It is not recommended for use by young people and non-smokers.
• This product is suitable only for persons of 18 years or older.
• This product is not recommended for women that are pregnant or breastfeeding.
Recommendation Regarding Young People And Non-smokers
This product is not recommended for use by young people and non-smokers.
Contra-indications For Vulnerable Groups
• This product is not suitable for:
- Persons of below 18 years of age.
- Persons who are ill or have certain medical conditions.
- Persons taking certain medication.
- Persons with certain allergies.
• This product is not recommended for use by:
- Young people and non-smokers.
- Women that are pregnant or breastfeeding.
• The consumption of e-liquids is not recommended for people suffering from heart disease,
high blood pressure, diabetes or those taking medication for depression or asthma.
The consumption of e-liquids is not suitable for those who are hypersensitive to nicotine or any
•
other relevant ingredient contained in an e-liquid (see e-liquid ingredients for further details).
E-liquids may contain allergens. Users should not consume e-liquids, and should not use this
•
product, if they have an allergy to any of the ingredients in an e-liquid (see e-liquid ingredients
for further details).
• E-liquids may contain skin sensitizers, or substances with the potential to cause skin
sensitization. Users should not consume or use e-liquids, and should not use this product, if
they have a contact sensitization-type allergic reaction to any ingredients in an e-liquid (see
e-liquid ingredients for further details).
• The consumption of e-liquids is not recommended for people suffering from liver or kidney
problems or for people suffering from long term throat disease.
English / 10
- Headache
- Dizziness
- Feeling lightheaded or faint
- Abnormal heart rate
- Stomach discomfort
- Nasal congestion
If you experience any of the above symptoms, or other adverse effects, stop using the product
•
immediately, seek medical attention, and provide the medical expert with the label and leaflet
of the e-liquid. Do not drive, and do not operate machinery or engage in similar activities.
• If e-liquid is swallowed – refer to the instructions of the e-liquid product –
immediately seeking medical assistance when necessary (see Poison centre
information below).
If e-liquid is splashed onto skin or in the mouth – wash skin and mouth thoroughly with cold
•
water – refer to the instructions of the e-liquid product – immediately seeking medical
assistance when necessary (see Poison centre information below).
If you experience significant nausea or changes in heart rate, seek immediate medical
•
attention. If a child comes into contact with or swallows an e-liquid, you should contact your
local hospital's accident and emergency department immediately.
Addictiveness And Toxicity
Nicotine is a highly addictive substance, it is not recommended to be used by young people,
•
non-smokers and those who are not already vaping. Once you have started using nicotine, you
may find it hard to stop. Most people experience little benefit from the use of nicotine, so it is
better never to start.
• Although the levels experienced during the use of this product should not be dangerous, if
you suffer persistently from any side effects, or experience significant changes to breathing or
heart rate, you should consult your doctor.
• Nicotine is toxic if ingested (swallowed).
• Nicotine-containing products should be stored out of the sight and reach of children (and pets
and animals).
Ingredients
This product does not contain an e-liquid when sold to the consumer. For a list of ingredients of
the e-liquid – see e-liquid information.
English / 12
Contact details of legal or natural person within the EU
Manufacturer's EU Representative: IVPS Technology B.V
•
Address: IVPS Technology B.V, Zekeringstraat 17 A, 1014BM Amsterdam,
•
Netherlands
• Website: www.smoktech.com
• Email: support@smoktech.com
• Phone number: 0036 1 6188870
English / 14
Puff Time
1
2 Working Power
Voltage
4
No less
than 9 mm
3
