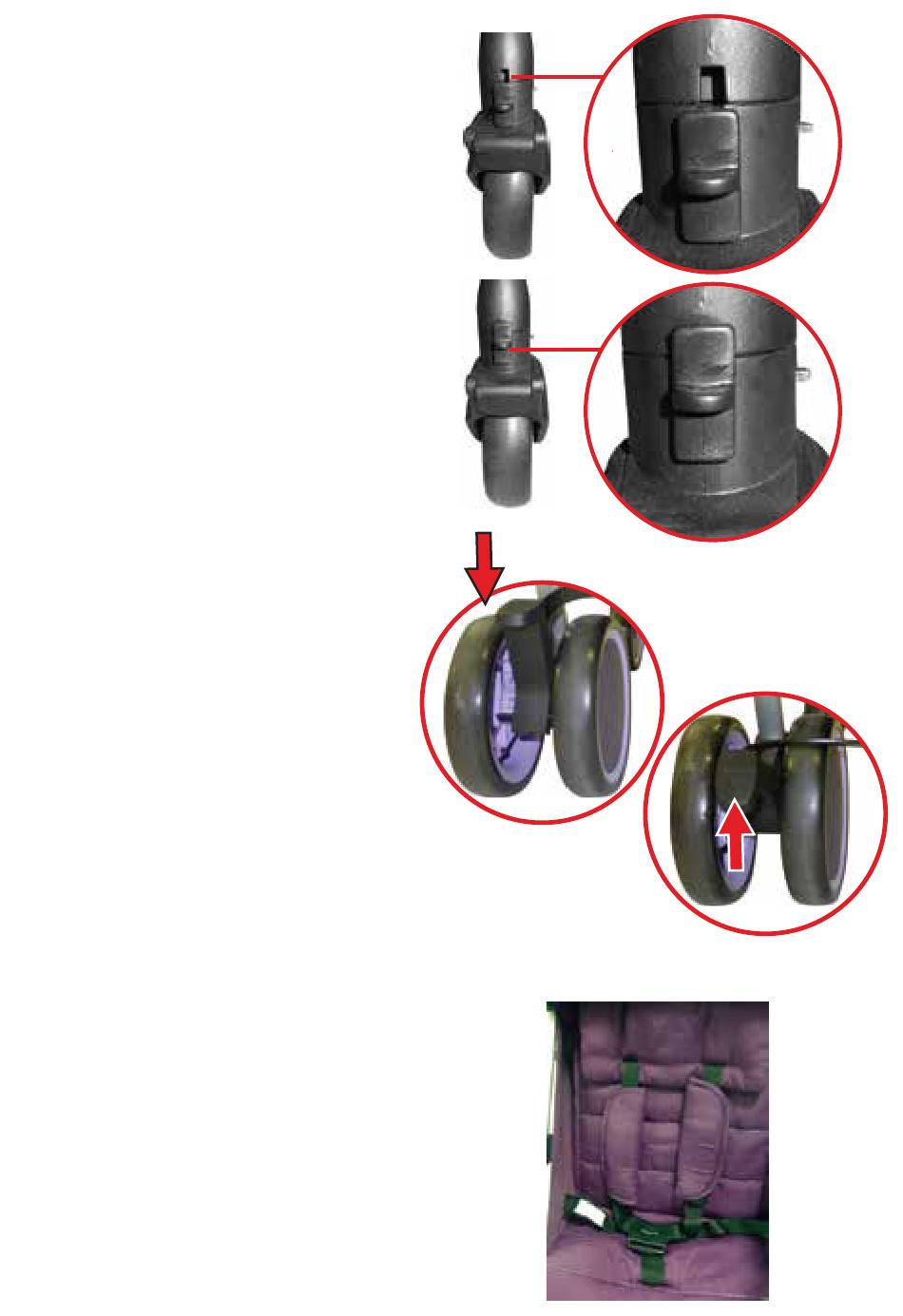

DIRECTIONAL LOCKING
To lock the front wheels, press the
black plastic lever.
Image (1) = Down position = unloc-
ked
Image (2) =
locked

PARKING BRAKE

To apply the brake, use your foot to
push the break pedal (left or right)
down (3). Both wheels will then be
locked.
Reverse the process to unlock
the wheels.
HARNESS
It is equiped with 2 plastic double
loops used to adjust the harness
and with a quick release buckle.
Always be sure to buckle and adjust
the harness, and check the state of the
straps on a regular basis.
Upper position =
(3)
(4)
(1)
(2)
9
