The line cutter is now attached.

Attaching the brush blade

! Please be careful during this procedure, the
brush blade is sharp.
The following parts are required for fitting the
brush blade –
1 x Brush blade
1 x 4mm Allen key

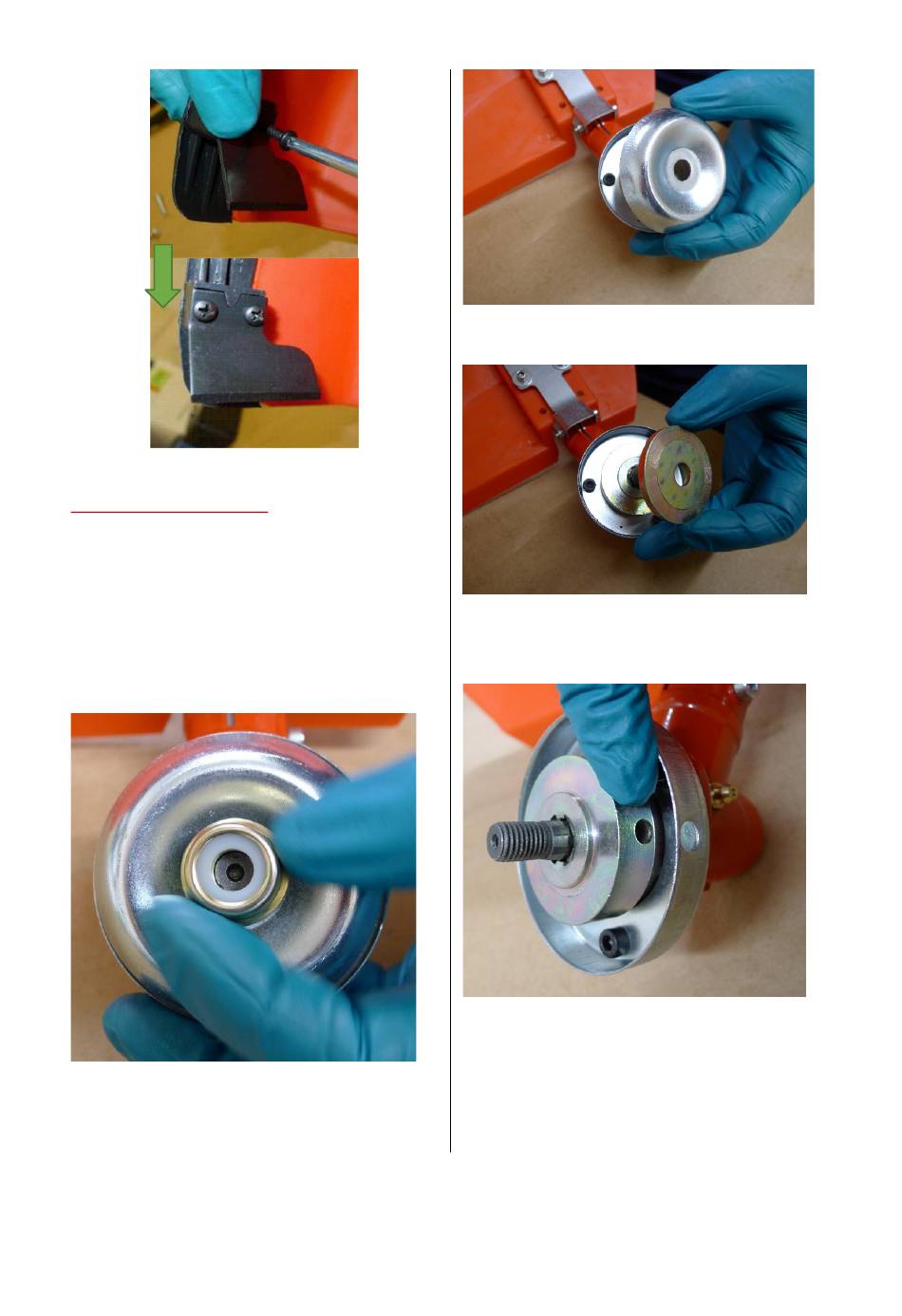

Remove the nut on the head assembly by
rotating it clockwise.
Once the nut is removed, pull the bell
shaped washer away from the head
assembly.
Now lift and remove the flat spacer washer
from the head assembly.
Line up the hole on the side of the large
washer with the hole in the side of the head
assembly.
Insert the 4mm Allen key through both holes
(This will prevent the head from rotating while
you attach the blade).
Now carefully remove the brush blade from
the packaging.
