7. Close the IntesisHome's and toshiba's lid again.
8. Plug the toshiba system to mains electricity.
If connection with the toshiba system has been successful, IntesisHome device LeD will start
blinking Green and then will change to steady Green.
9. Connect the external antenna into the antenna connector.
10. Place the antenna preferably in a vertical position and pointing directly to the Wi-Fi Router or
Access Point (AP). see section 3.
2.2 Without Control Panel
this method assumes that you want to control the toshiba system through IntesisHome
exclusively.
1. Unplug the toshiba system from mains electricity.
2. open the top lid of the IntesisHome device.
3. Remove IntesisHome's top Hole cover.
4. Connect one end of toshiba's bus cable into IntesisHome device K1 connector.
5. Connect the other end of toshiba's bus cable into toshiba's Indoor Unit AB connector or Remote Control
Wiring (see www.intesishome.com/docs/to-RC-WIFI-1-Install_sketch.pdf for more information).
6. Close IntesisHome's lid again.
7. Plug the toshiba system to mains electricity.
If connection with the toshiba system has been successful, IntesisHome device LeD will start
blinking Green and then will change to steady Green.
8. Connect the external antenna into the antenna connector.
9. Place the antenna preferably in a vertical position and pointing directly to the Wi-Fi Router or Access
Point (AP). see section 3.

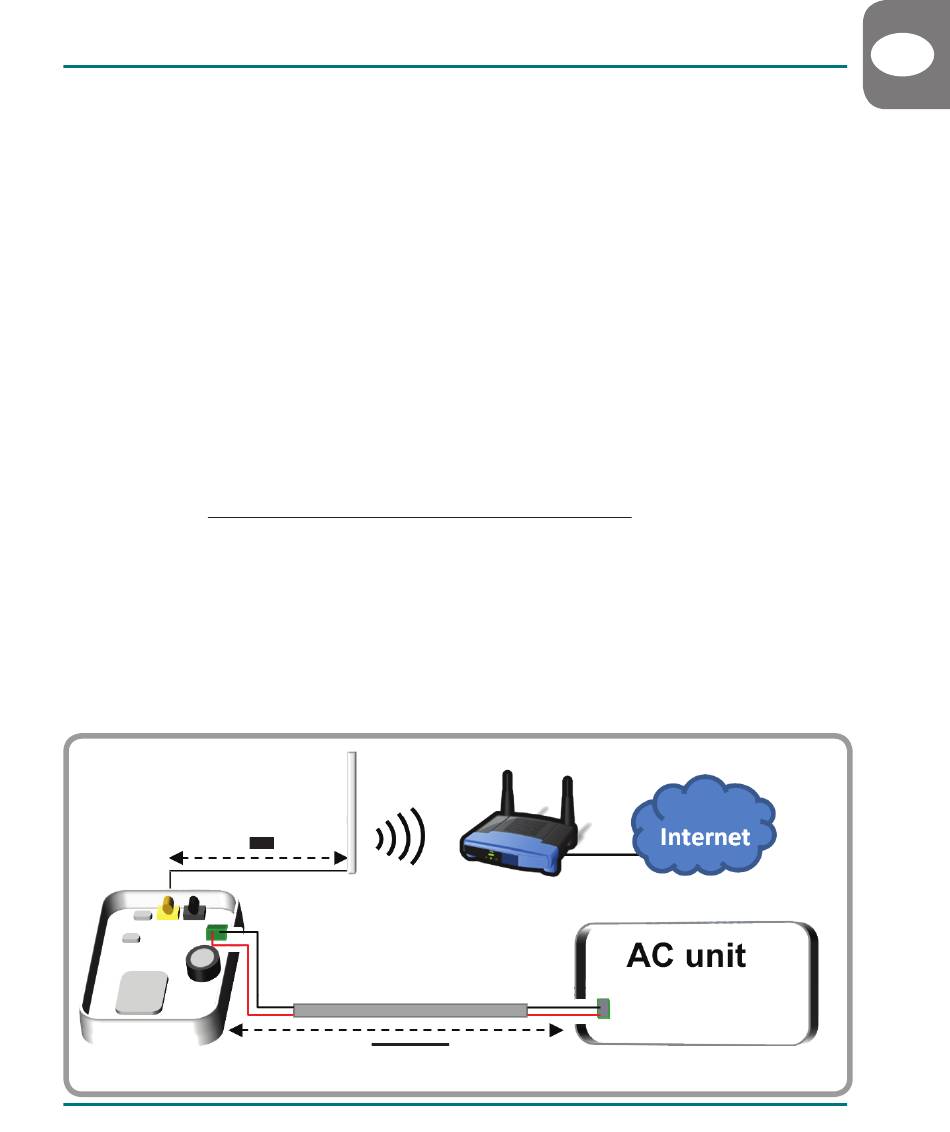

K1
