System Configuration Examples

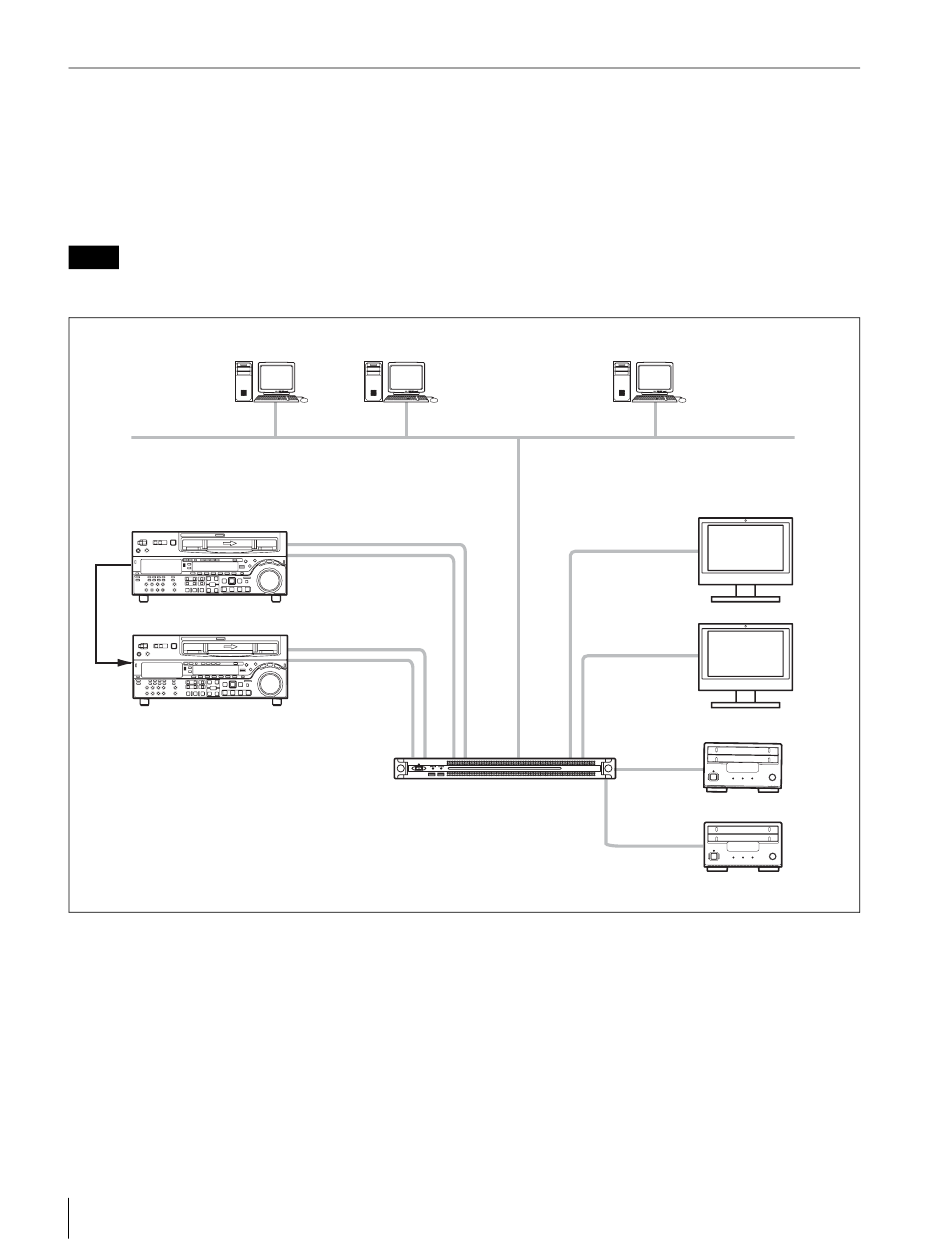

Connect VTRs to the SDI 1 and SDI 2 connectors, and
external monitors to the SDI 3 and SDI 4 connectors. You
can use this configuration to digitize video from two VTRs
in parallel.
You can connect up to two drive units to the
PWS-100TD1.
Notes
• If multiple VTRs are connected, make sure that all VTRs are synchronized
(±1H).
VTR
REF
16
Overview
Operator Operator
HD/SD SDI
RS-422
HD/SD SDI
RS-422
• Set the EE/PB setting of the VTR to PB.
• The PWS-100TD1 is synchronized to the SDI 1 connector input signal.
Accordingly, always input a synchronized video signal on the SDI 1
connector.
Manager
Gigabit Ethernet
HD SDI
HD SDI
SDI 1
USB 3.0
PWS-100TD1
USB 3.0
External monitor
Drive unit
