Wiring Diagram - Velleman components KSR5 SCARAB Kurzanleitung

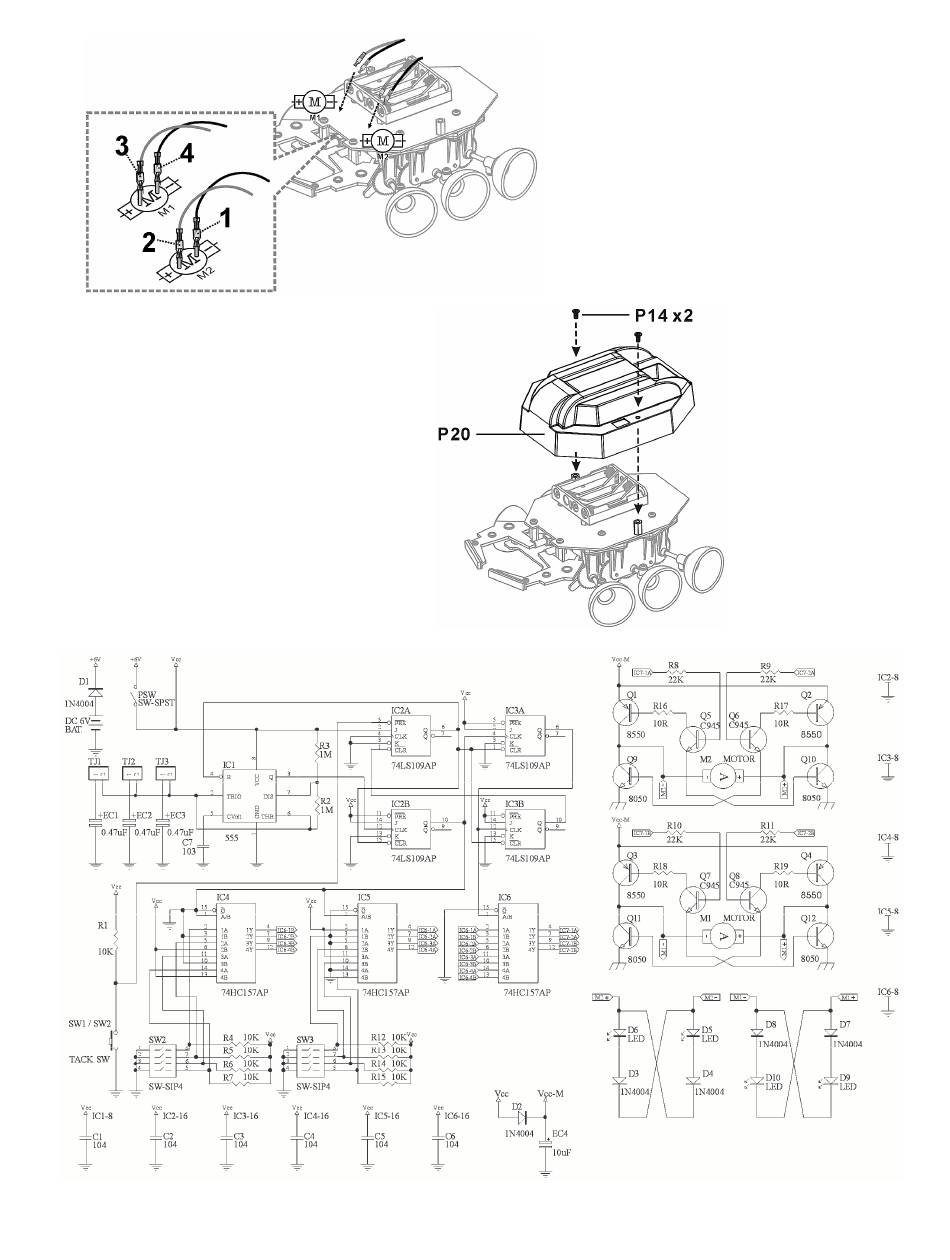

4. Connect the wires to the pins on the M-terminals.
Fig. 10
5. Mount the body on the PCB/gearbox assembly:
Fig. 11

5. Wiring Diagram

Fig. 12
KSR5 6 VELLEMAN
