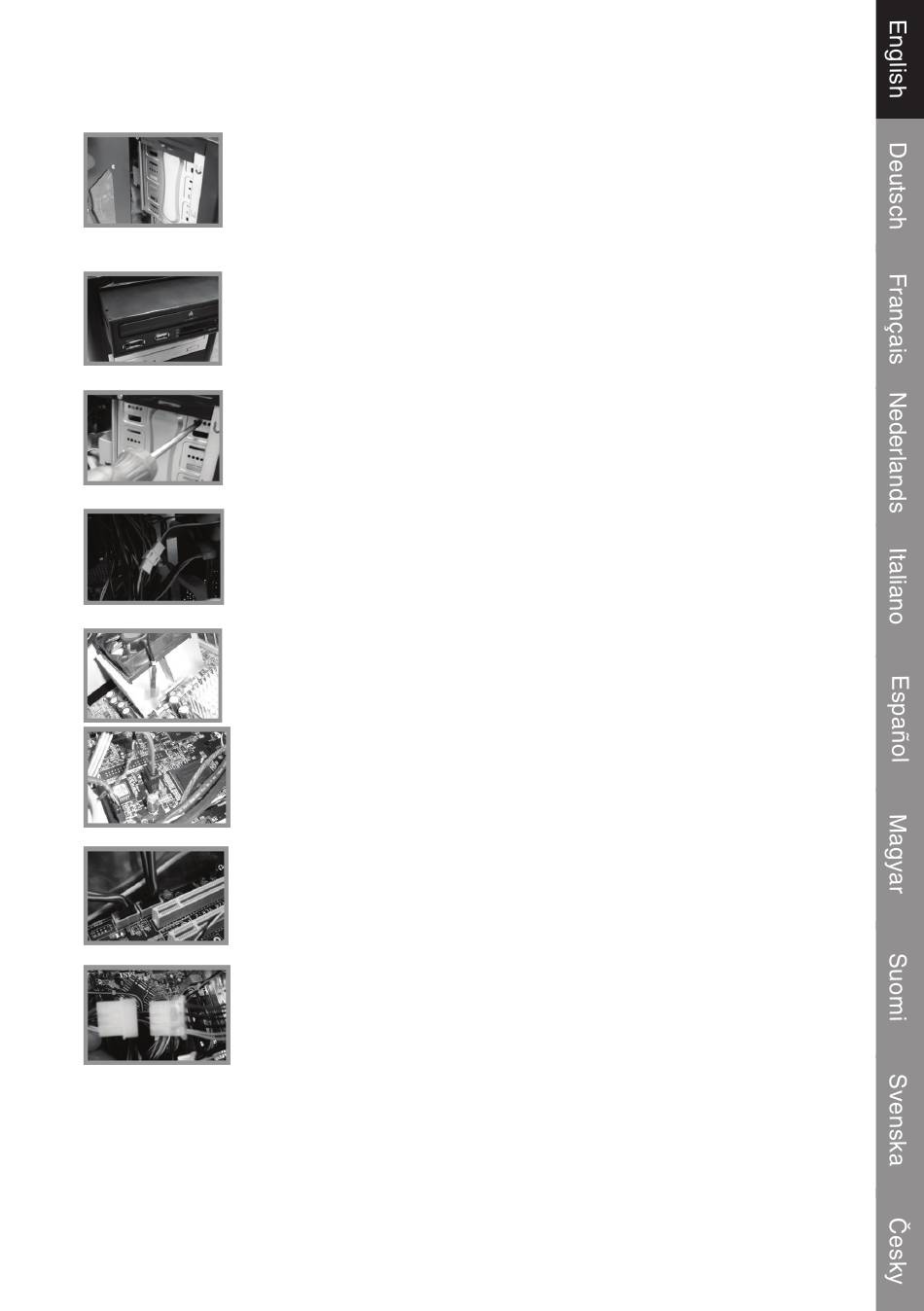

4.2 Hardware installation
1. Remove the side cover of pc case.
2. Remove the cover of 5.25" drive bay.
3. Insert all cables into this bay and push this panel into the
bay until the screw holes should align with the chassis
screw holes.
4. Secure the panel with screws that we provided.
5. Connect the fan cables connector to your cooling fans
6. Connect the temperature sensor cable connector from
the panel to the corresponding heat location.
7. Connect the SATA cable to the SATA pin header on the
M/B
8. Connect the USB cable to the USB pin header on the
M/B
9. Connect the HDD access cable to the pin header on the
M/B
(7.8.9. please refer to your motherboard user manual for
pin location)
10. Connect the DC power cable connector to the PSU 4-pin
connector.
11. Secure the side case cover with screws.
