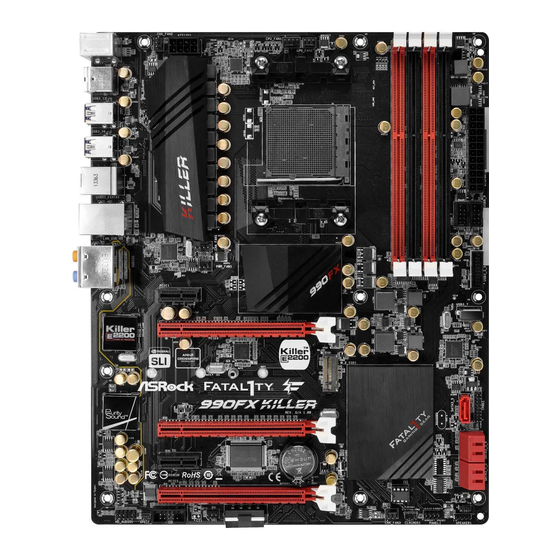

Fatal1ty 990FX Professional Series Motherboard

Werbung

Inhaltsverzeichnis
loading

Inhaltszusammenfassung für Fatal1ty 990FX Professional Series

  • Seite 1 Quakecon 2004, I became the World’s 1st Doom3 Champion by defeating Daler in a series of very challenging matches and earning $25,000 for the victory. Since then Fatal1ty has traveled the globe to compete against the best in the world, winning prizes and acclaim, including the 2005 CPL World Tour Championship in New York City for a $150,000 fi...
  • Seite 2 fl uid movement around the maps. My vision for Fatal1ty hardware is to allow gamers to focus on the game without worrying about their equipment, something I’ve preached since I began competing. I don’t want to worry about my equipment.
  • Seite 3 California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance. “Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/perchlorate” ASRock Website: http://www.asrock.com Published June 2011 Copyright©2011 ASRock INC. All rights reserved. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 4: Motherboard-Layout

    PCI Slot (PCI1) SATA3 Connector (SATA3_3_4, Red) PCI Express 2.0 x1 Slot (PCIE3; Black) SATA3 Connector (SATA3_1_2, Red) PCI Express 2.0 x16 Slot (PCIE2; Red) Chassis Fan Connector (CHA_FAN1) PCI Express 2.0 x1 Slot (PCIE1; Black) Fatal1ty 990FX Professional Series Motherboard...
  • Seite 5 See the table below for connection details in accordance with the type of speaker you use. TABLE for Audio Output Connection Audio Output Channels Front Speaker Rear Speaker Central / Bass Side Speaker (No. 12) (No. 9) (No. 10) (No. 8) Fatal1ty 990FX Professional Series Motherboard...
  • Seite 6 Choose “2CH”, “4CH”, “6CH”, or “8CH” and then you are allowed to select “Realtek HDA Pri- mary output” to use Rear Speaker, Central/Bass, and Front Speaker, or select “Realtek HDA Audio 2nd output” to use front panel audio. *** eSATA3 connector supports SATA Gen3 in cable 1M. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 7: Package Contents

    1. Introduction Thank you for purchasing Fatal1ty 990FX Professional Series motherboard, a reli- able motherboard produced under ASRock’s consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock’s commit- ment to quality and endurance. In this manual, chapter 1 and 2 contain introduction of the motherboard and step- by-step guide to the hardware installation.
  • Seite 8 - Premium Blu-ray audio support - Supports THX TruStudio - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Broadcom BCM57781 - Supports Wake-On-LAN - Supports Energy Effi cient Ethernet 802.3az - Supports Dual LAN with Teaming function - Supports PXE Fatal1ty 990FX Professional Series Motherboard...
  • Seite 9 - 1 x Coaxial SPDIF Out Port - 1 x Optical SPDIF Out Port - 5 x Ready-to-Use USB 2.0 Ports - 1 x Fatal1ty Mouse Port (USB 2.0) - 2 x Ready-to-Use USB 3.0 Ports - 2 x eSATA3 Connectors...
  • Seite 10 Overclocking may affect your system stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 11 Your friends can then load the OC profi le in to their own system to get the same OC settings. In Mouse Polling mode, F-Stream allows you to adjust the mouse polling rate of the Fatal1ty Mouse port to add a professional level mouse confi guration. In IES (Intelligent Energy Saver) mode, the voltage regulator can reduce the number of output phases to improve effi...
  • Seite 12 Before you resume the system, please check if the CPU fan on the moth- erboard functions properly and unplug the power cord, then plug it back again. To improve heat dissipation, remember to spray thermal grease between the CPU and the heatsink when you install the PC system. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 13 Intel’s suggestion, the EuP ready power supply must meet the standard of 5v standby power effi ciency is higher than 50% under 100 mA current consumption. For EuP ready power supply selection, we recommend you checking with the power supply manufacturer for more details. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 14 When placing screws into the screw holes to secure the mother- board to the chassis, please do not over-tighten the screws! Doing so may damage the motherboard. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 15: Cpu Installation

    Then connect the CPU fan to the CPU FAN connector (CPU_FAN1, see Page 4, No. 4 or CPU_FAN2, see Page 4, No. 5). For proper installation, please kindly refer to the instruc- tion manuals of the CPU fan and the heatsink. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 16 It is not allowed to install a DDR or DDR2 memory module into DDR3 slot; otherwise, this motherboard and DIMM may be dam- aged. If you adopt DDR3 2100 memory modules on this motherboard, it is recommended to install them on DDR3_A2 and DDR3_B2 slots. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 17: Installing A Dimm

    DIMM if you force the DIMM into the slot at incorrect orientation. Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends fully snap back in place and the DIMM is properly seated. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 18: Installing An Expansion Card

    Align the card connector with the slot and press fi rmly until the card is completely seated on the slot. Step 5. Fasten the card to the chassis with screws. Step 6. Replace the system cover. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 19 PCIE2 slot and the other graphics card to PCIE4 slot. Make sure that the cards are properly seated on the slots. Step2. If required, connect the auxiliary power source to the PCI Express graphics cards. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 20 Set PhysX GPU acceleration item, please select Enabled. In Select an SLI confi guration item, please select Enable SLI. And click Apply. C. Reboot your system. D. You can freely enjoy the benefi t of SLI feature. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 21 Quad SLI feature. ® * SLI appearing here is a registered trademark of NVIDIA Technologies Inc., and is used only for identifi cation or explanation and to the owners’ benefi t, without intent to infringe. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 22 Step 1. Insert one Radeon graphics card into PCIE2 slot and the other Radeon graphics card to PCIE4 slot. Make sure that the cards are properly seated on the slots. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 23 Connect the DVI monitor cable to the DVI connector on the Radeon graph- ics card on PCIE2 slot. (You may use the DVI to D-Sub adapter to convert the DVI connector to D-Sub interface, and then connect the D-Sub monitor cable to the DVI to D-Sub adapter.) Fatal1ty 990FX Professional Series Motherboard...
  • Seite 24 Bridge to connect Radeon graphics cards on PCIE4 and PCIE5 slots. (CrossFire Bridge is provided with the graphics card you purchase, not bundled with this motherboard. Please refer to your graphics card vendor for details.) Fatal1ty 990FX Professional Series Motherboard...
  • Seite 25 Connect the DVI monitor cable to the DVI connector on the Radeon graph- ics card on PCIE2 slot. (You may use the DVI to D-Sub adapter to convert the DVI connector to D-Sub interface, and then connect the D-Sub monitor cable to the DVI to D-Sub adapter.) Fatal1ty 990FX Professional Series Motherboard...
  • Seite 26 ”, and then check the item “Enable CrossFireX ”. Select “2 GPUs” and click “Apply” (if you install two Radeon graphics cards). Select “3 GPUs” and click “OK” (if you install three Radeon graphics cards). Fatal1ty 990FX Professional Series Motherboard...
  • Seite 27 Express VGA cards, you can easily enjoy the benefi ts of Surround Display feature. For the detailed instruction, please refer to the document at the following path in the Support CD: ..\ Surround Display Information Fatal1ty 990FX Professional Series Motherboard...
  • Seite 28 Please be noted that the password, date, time, user default profi le, 1394 GUID and MAC address will be cleared only if the CMOS battery is removed. The Clear CMOS Switch has the same function as the Clear CMOS jumper. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 29 Besides six default USB 2.0 USB_PWR ports on the I/O panel, there (9-pin USB6_7) are two USB 2.0 headers on DUMMY (see p.4 No. 26) this motherboard. Each USB 2.0 header can support two USB USB PWR 2.0 ports. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 30 HDA to function correctly. Please follow the instruction in our manual and chassis manual to install your system. 2. If you use AC’97 audio panel, please install it to the front panel audio Fatal1ty 990FX Professional Series Motherboard...
  • Seite 31 LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assign-ments are matched correctly. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 32 If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this motherboard, please connect it to Pin 1-3. Pin 1-3 Connected 3-Pin Fan Installation (3-pin CPU_FAN2) +12V CPU_FAN_SPEED (see p.4 No. 5) Fatal1ty 990FX Professional Series Motherboard...
  • Seite 33 IEEE 1394 header (see p.4 No. 33) (FRONT_1394) on this motherboard. This IEEE 1394 header can support one IEEE 1394 port. Serial port Header This COM1 header supports a serial port module. (9-pin COM1) (see p.4 No.30) Fatal1ty 990FX Professional Series Motherboard...
  • Seite 34 Plug the Front USB 3.0 cable into The Front USB 3.0 Panel is ready Step 5 Step 6 the USB 3.0 header (USB3_1_2 or to use. USB3_3_4) on the motherboard. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 35: Smart Switches

    (RSTBTN) the system. (see p.4 No. 21) Clear CMOS Switch Clear CMOS Switch is a smart switch, allowing users to quickly (CLRCBTN) clear the CMOS values (see p.5 No. 20) Fatal1ty 990FX Professional Series Motherboard...
  • Seite 36 CPU post-memory initialization is started 0x33 CPU post-memory initialization. Cache initialization 0x34 CPU post-memory initialization. Application Processor(s) (AP) initialization 0x35 CPU post-memory initialization. Boot Strap Processor (BSP) selection 0x36 CPU post-memory initialization. System Management Mode (SMM) initialization Fatal1ty 990FX Professional Series Motherboard...
  • Seite 37 Reserved for future AMI progress codes 0xF8 Recovery PPI is not available 0xF9 Recovery capsule is not found 0xFA Invalid recovery capsule 0xFB – 0xFF Reserved for future AMI error codes 0x60 DXE Core is started 0x61 NVRAM initialization Fatal1ty 990FX Professional Series Motherboard...
  • Seite 38 USB Detect 0x9D USB Enable 0x9E – 0x9F Reserved for future AMI codes 0xA0 IDE initialization is started 0xA1 IDE Reset 0xA2 IDE Detect 0xA3 IDE Enable 0xA4 SCSI initialization is started 0xA5 SCSI Reset Fatal1ty 990FX Professional Series Motherboard...
  • Seite 39 No Console Input Devices are found 0xD8 Invalid password 0xD9 Error loading Boot Option (LoadImage returned error) 0xDA Boot Option is failed (StartImage returned error) 0xDB Flash update is failed 0xDC Reset protocol is not available Fatal1ty 990FX Professional Series Motherboard...
  • Seite 40: Installing Windows

    B.Set the “SATA Mode” option to [IDE]. (For SATA3_1 to SATA3_6 ports.) Set the option “Marvell SATA3 Operation Mode” to [IDE]. (For eSATA3 ports.) ® STEP 2: Install Windows XP / XP 64-bit OS on your system. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 41 PCI / PCIE buses are in the fi xed mode so that FSB can operate under a more stable overclocking environment. Please refer to the warning on page 10 for the possible overclocking risk before you apply Untied Overclocking Technology. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 42 “Unassigned Adapters” sections, which means all adapters are already assigned to teams. 3. Click Expert Mode. * If you want to always use Expert Mode to create a team, click Default to Expert Mode on next start. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 43 * Adding a network adapter to a team where its driver is disabled may negatively affect the of oading capabilities of the team. This may have an impact on the team’s performance. Therefore, it is recommended that only driver-enabled network adapters be added as members to a team. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 44 * When con guring an SLB team, although connecting team members to a hub is supported for testing, it is recommended to connect team members to a switch. * Not all network adapters made by others are supported or fully certi ed for teaming. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 45 On the General tab, click Internet Protocol (TCP/IP), and then click Properties. d. Con gure the IP address and any other necessary TCP/IP con guration for the team, and then click OK when nished. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 46 It will display the Main Menu automatically if “AUTORUN” is enabled in your computer. If the Main Menu does not appear automatically, locate and double-click on the fi le “ASSETUP.EXE” from the BIN folder in the Support CD to display the menus. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 47: Einführung

    1. Einführung Wir danken Ihnen für den Kauf des Fatal1ty 990FX Professional Series Moth- erboard, ein zuverlässiges Produkt, welches unter den ständigen, strengen Qual- itätskontrollen von ASRock gefertigt wurde. Es bietet Ihnen exzellente Leistung und robustes Design, gemäß der Verpfl ichtung von ASRock zu Qualität und Halbarkeit.
  • Seite 48: Spezifikationen

    Quad SLI und SLI - 7.1 CH HD Audio mit dem Inhalt Schutz Audio (Realtek ALC892 Audio Codec) - Premium Blu-ray-Audio-Unterstützung - Unterstützt THX TruStudio - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Broadcom BCM57781 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 49 - 1 x Koaxial-SPDIF-Ausgang - 1 x optischer SPDIF-Ausgang - 5 x Standard-USB 2.0-Anschlüsse - 1 x Fatal1ty Mausanschluss (USB 2.0) - 2 x Standard-USB 3.0-Anschlüsse - 2 x eSATA3-Anschlüsse - 2 x RJ-45 LAN Port mit LED (ACT/LINK LED und SPEED...
  • Seite 50 ® ® Betriebssysteme - Unterstützt Microsoft Windows 7 / 7 64-Bit / Vista Vista 64-Bit / XP / XP 64-Bit Zertifi zierungen - FCC, CE, WHQL - Gemäß Ökodesign-Richtlinie (ErP/EuP) (Stromversorgung gemäß Ökodesign-Richtlinie (ErP/EuP) erforderlich) Fatal1ty 990FX Professional Series Motherboard...
  • Seite 51 4 GB betragen, da unter Windows 7 / Vista™ / XP etwas Speicher zur Nutzung durch das System reserviert wird. Unter ® Windows OS mit 64-Bit-CPU besteht diese Einschränkung nicht. Der Mikrofoneingang dieses Motherboards unterstützt Stereo- und Mono- Fatal1ty 990FX Professional Series Motherboard...
  • Seite 52 (S4) aufruft oder ausgeschaltet wird (S5). Nach der Installation des APP Charger-Treibers können Sie im Handumdrehen das großartigste Ladeerlebnis überhaupt genießen. ASRock-Webseite: http://www.asrock.com/Feature/AppCharger/index. 10. ASRock SmartView, eine neue Internetbrowserfunktion, ist eine intel- ligente IE-Startseite, die meist besuchte Internetseiten, Ihren Browserver- Fatal1ty 990FX Professional Series Motherboard...
  • Seite 53 Standard entsprechen, was bedeutet, dass bei einem Stromverbrauch von 100 mA die 5-Volt-Standby-Energieeffi zienz höher als 50% sein sollte. Für die Wahl einer EuP-fähigen Stromversorgung empfehlen wir Ihnen, weitere Details beim Hersteller der Stromversorgung abzufragen. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 54: Sicherheitshinweise Vor Der Montage

    Unterlage, oder zurück in die Tüte, mit der die Komponente geliefert wurde. Wenn Sie das Motherboard mit den Schrauben an dem Computergehäuse befestigen, überziehen Sie bitte die Schrauben nicht! Das Motherboard kann sonst beschädigt werden. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 55: Installation Des Cpu-Lüfters Und Des Kühlkörpers

    Kontakt zueinander haben. Verbinden Sie dann den CPU-Lüfter mit dem CPU-LÜFTER-Anschluss (CPU_FAN1, siehe Seite 4, Nr. 4 oder CPU_FAN2, siehe Seite 4, Nr. 5). Beziehen Sie sich für eine richtige Installation auf die Handbücher des CPU-Lüfters und des Kühlkörpers. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 56: Installation Der Speichermodule (Dimm)

    2.3 Installation der Speichermodule (DIMM) Die Motherboards Fatal1ty 990FX Professional Series bieten vier 240-pol. DDR3 (Double Data Rate 3) DIMM-Steckplätze und unterstützen die Dual-Kanal- Speichertechnologie. Für die Dual-Kanalkonfi guration dürfen Sie nur identische (gleiche Marke, Geschwindigkeit, Größe und gleicher Chiptyp) DDR3 DIMM-Paare in den Steckplätzen gleicher Farbe installieren.
  • Seite 57: Einsetzen Eines Dimm-Moduls

    Steckplätze zu zwingen, führt dies zu dauerhaften Schäden am Mainboard und am DIMM-Modul. Schritt 3: Drücken Sie die DIMM-Module fest in die Steckplätze, so dass die Halteklammern an beiden Enden des Moduls einschnappen und das DIMM-Modul fest an Ort und Stelle sitzt. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 58: Erweiterungssteckplätze: (Pci- Und Pci Express-Slots)

    2.4 Erweiterungssteckplätze: (PCI- und PCI Express-Slots): Es stehen 2 PCI- und 5 PCI Express-Slot auf dem Fatal1ty 990FX Professional Series Motherboard zur Verfügung. PCI-Slots werden zur Installation von Erweiterungskarten mit dem PCI-Slots: 32bit PCI-Interface genutzt. PCI Express-Slots: PCIE1 / PCIE3 (PCIE x1-Steckplatz; schwarz) wird für PCI Express x1 Lane-Breite-Karten verwendet, z.B.
  • Seite 59: Tm - Und Quad Crossfirex

    3-Way CrossFireX -und Quad CrossFireX -Funktion wird nur vom Betriebssystem ® Windows Vista / 7 unterstützt. Schauen Sie auf der AMD-Website nach, ob es CrossFireX -Treiber-Updates gibt. Beachten Sie den detailliert erklärten Installationsablauf auf Seite Fatal1ty 990FX Professional Series Motherboard...
  • Seite 60: Einstellung Der Jumper

    CMOS gelöscht wurde. Wenn Sie den CMOS- Inhalt gleich nach dem Aktualisieren des BIOS löschen müssen, müssen Sie zuerst das System starten und dann wieder ausschalten, bevor Sie den CMOS-Inhalt löschen. Der CMOS löschen-Schalter hat dieselbe Funktion wie der CMOS löschen-Jumper. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 61: Integrierte Header Und Anschlüsse

    Datenübertragungsrate bis 6,0 Gb/s. USB 2.0-Header Zusätzlich zu den sechs USB_PWR üblichen USB 2.0-Ports an den (9-pol. USB6_7) DUMMY I/O-Anschlüssen befi nden sich (siehe S.4 - No. 26) zwei USB 2.0- Anschlussleisten am USB PWR Fatal1ty 990FX Professional Series Motherboard...
  • Seite 62 (siehe S.4 - No. 31) Anschluss für Audio auf Dieses Interface zu einem der Gehäusevorderseite Audio-Panel auf der Vorder seite Ihres Gehäuses, (9-Pin HD_AUDIO1) ermöglicht Ihnen eine bequeme (siehe S.4 - No. 34) Anschlussmöglichkeit und Kontrolle über Audio-Geräte. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 63 Gehäuses. Die LED leuchtet, wenn das System in Betrieb ist. Die LED blinkt, wenn sich das System im Ruhezustand S1 befi ndet. Die LED schaltet sich aus, wenn sich das System in den Modi S3/S4 befi ndet oder ausgeschaltet ist (S5). Fatal1ty 990FX Professional Series Motherboard...
  • Seite 64 (3-pin CHA_FAN2) +12V FAN1/2/3-Lüftergeschwindigkeit (siehe S.4 - No. 6) CHA_FAN_SPEED kann über UEFI oder AXTU gesteuert werden. +12V (3-pin CHA_FAN3) CHA_FAN_SPEED (siehe S.4 - No. 24) +12V PWR_FAN_SPEED (3-pin PWR_FAN1) (siehe S.4 - No. 10) Fatal1ty 990FX Professional Series Motherboard...
  • Seite 65 Verfügung stellt, kann sie noch arbeiten, wenn Sie einen traditionellen 4-Pin ATX 12V Energieversorgung adoptieren. Um die 4-Pin ATX Energieversorgung zu verwenden, stecken Sie bitte Ihre Energieversorgung zusammen mit dem Pin 1 und Pin 5 ein. Installation der 4-Pin ATX 12V Energieversorgung Fatal1ty 990FX Professional Series Motherboard...
  • Seite 66 Audioausgang für eine HDMI- (siehe S.4 - No. 1) VGA-Karte zur Verfügung und ermöglicht den Anschluss von HDMI-Digitalgeräten wie Fernsehgeräten, Projektoren, LCD-Geräten an das System. Bitte verbinden Sie den HDMI_SPDIF-Anschluss der HDMI-VGA-Karte mit diesem Anschluss. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 67 Schließen Sie das USB 3.0-Kabel an USB 3.0-Panel. das USB 3.0-Blech an. Schritt 3 Schritt 4 Fixieren Sie das USB 3.0-Blech mit Setzen Sie das USB 3.0-Blech an Schrauben an der Rückwand. der Rückwand des Gehäuses ein. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 68 Schnellschalter, mit dem (RSTBTN) Benutzer das System schnell (siehe S4 - No. 21) zurücksetzen können. CMOS löschen-Schalter Der CMOS löschen-Schalter ist ein Schnellschalter, mit dem (CLRCBTN) Benutzer die CMOS-Werte (siehe S.5 - No. 20) schnell löschen können. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 69: Treiberinstallation

    B.Stellen Sie “SATA Mode” (SATA-Modus) auf [IDE]. (Für SATA3_1 zu SATA3_6.) Stellen Sie “Marvell SATA3 Operation Mode” (SATA-Modus) auf [IDE]. (Für eSATA3.) ® SCHRITT 2: Installieren Sie Windows XP / XP 64-Bit in Ihrem System. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 70: Installation Von Windows

    B.Stellen Sie “SATA Mode” (SATA-Modus) auf [AHCI]. (Für SATA3_1 zu SATA3_6.) Stellen Sie “Marvell SATA3 Operation Mode” (SATA-Modus) auf [AHCI]. (Für eSATA3.) ® SCHRITT 2: Installieren Sie Windows 7 / 7 64-Bit / Vista / Vista 64-Bit in Ihrem System. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 71 ASSETUP.EXE im BIN-Verzeichnis der Support-CD, um die Menüs aufzurufen. Das Setup-Programm soll es Ihnen so leicht wie möglich machen. Es ist menüges- teuert, d.h. Sie können in den verschiedenen Untermenüs Ihre Auswahl treffen und die Programme werden dann automatisch installiert. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 72: Contenu Du Paquet

    1. Introduction Merci pour votre achat d’une carte mère Fatal1ty 990FX Professional Series, une carte mère très fi able produite selon les critères de qualité rigoureux de ASRock. Elle offre des performances excellentes et une conception robuste conformément à l’engagement d’ASRock sur la qualité et la fi abilité au long terme.
  • Seite 73 - Prend en charge NVIDIA Quad SLI et SLI Audio - 7,1 CH HD Audio avec protection de contenu (Realtek ALC892 Audio Codec) - Prise en charge de l’audio Premium Blu-ray - Prend en charge THX TruStudio Fatal1ty 990FX Professional Series Motherboard...
  • Seite 74 - 1 x Port de sortie coaxial SPDIF - 1 x Port de sortie optique SPDIF - 5 x ports USB 2.0 par défaut - 1 x Fatal1ty port souris (USB 2.0) - 2 x ports USB 3.0 par défaut - 2 x Connecteurs eSATA3...
  • Seite 75 - Ventilateur silencieux d’unité centrale - Commande de ventilateur CPU/boîtier à plusieurs vitesses - Monitoring de la tension: +12V, +5V, +3.3V, Vcore ® ® - Microsoft Windows 7 / 7 64-bit / Vista / Vista 64-bit / Fatal1ty 990FX Professional Series Motherboard...
  • Seite 76 Web pour connaître barrettes de mémoire compatibles. Site Web ASRock : http://www.asrock.com Du fait des limites du système d’exploitation, la taille mémoire réelle ® réservée au système pourra être inférieure à 4 Go sous Windows Fatal1ty 990FX Professional Series Motherboard...
  • Seite 77 APP est installé, vous découvrez un mode de mise en charge tout à fait inédit. Site web ASRock : http://www.asrock.com/Feature/AppCharger/index.asp 10. SmartView, nouvelle fonction pour les navigateurs Internet, est une page de démarrage intelligente pour IE qui combine vos sites web les plus visi- Fatal1ty 990FX Professional Series Motherboard...
  • Seite 78 électrique de 5v en mode de veille doit être supérieure à 50% pour 100 mA de consommation de courant. Pour choisir une alimentation électrique conforme à la norme EuP, nous vous recommandons de con- sulter votre fournisseur de courant pour plus de détails. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 79 5. Lorsque vous placez les vis dans les orifi ces pour vis pour fi xer la carte mère sur le châssis, ne serrez pas trop les vis ! Vous risquez sinon d’endommager la carte mère. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 80 CPU à la prise du VENTILATEUR DU CPU (CPU_FAN1, reportez- vous en page 4, No. 4 ou CPU_FAN2, reportez-vous en page 4, No. 5). Pour une bonne installation, veuillez vous référer aux manuels d’instruction sur le ventilateur du CPU et le dissipateur. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 81 2.3 Installation des modules m émoire [DIMM] La carte mère Fatal1ty 990FX Professional Series dispose de quatre emplace- ments DIMM DDR3 (Double Data Rate 3) de 240-broches, et supporte la Techno- logie de Mémoire à Canal Double. Pour effectuer une confi guration à canal double, vous devez toujours installer des paires de DIMM DDR3 identiques (de la même...
  • Seite 82 DIMM. tape 3. Insérez fermement le module DIMM dans son emplacement jusqu’à ce É que les clips de maintien situés aux deux extrémités se ferment complètement et que le module DIMM soit inséré correctement. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 83 2.4 Slot d’extension (Slots PCI et Slots PCI Express) Il y a 2 ports PCI et 5 ports PCI Express sur la carte mère Fatal1ty 990FX Profes- sional Series. Slots PCI: Les slots PCI sont utilisés pour installer des cartes d’extension dotées d’une interface PCI 32 bits.
  • Seite 84 Windows Vista / 7 uniquement. Veuillez consulter le site d’AMD pour les mises à jour de driver AMD CrossFireX . Veuillez suivre les instructions d’installation de la page pour plus de détails. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 85 CMOS. Veuillez noter que le mot de passe, la date, l’heure, le profi l par défaut de l’utilisateur, 1394 GUID et l’adresse MAC seront effacés seulement si la batterie du CMOS est enlevée. Le commutateur Effacer CMOS présente la même fonction que le cavalier Effacer CMOS. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 86 (SATA3_1_2: voir p.4 No. 19) charge les câbles SATA pour (SATA3_3_4: voir p.4 No. 18) les périphériques de stockage (SATA3_5_6: voir p.4 No. 17) internes. L’interface SATA3 actuelle permet des taux transferts de données pouvant aller jusqu’à 6,0 Gb/s. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 87 (voir p.4 No. 31) fi l. Connecteur audio panneau C’est une interface pour un câble avant audio en façade (HD_AUDIO1 br. 9) qui permet le branchement et (voir p.4 No. 34) le contrôle commodes de périphériques audio. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 88 Ce voyant DEL est allumé lorsque le système est en marche. Le voyant DEL clignote lorsque le système est en mode veille S1. Le voyant DEL est éteint lorsque le système est en mode veille S3/ S4 ou lorsqu’il est éteint (S5). Fatal1ty 990FX Professional Series Motherboard...
  • Seite 89 Veuillez connecter le câble de de l’UC ventilateur d’UC sur ce CPU_FAN_SPEED +12V FAN_SPEED_CONTROL connecteur et brancher le fi l (CPU_FAN1 br. 4) noir sur la broche de terre. (voir p.4 No. 4) 1 2 3 4 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 90 ATX 12V, il peut toujours travailler si vous adoptez une approche traditionnelle à 4 broches ATX 12V alimentation. Pour utiliser l’alimentation des 4 broches ATX, branchez votre alimentation avec la broche 1 et la broche 5. 4-Installation d’alimentation à 4 broches ATX 12V Fatal1ty 990FX Professional Series Motherboard...
  • Seite 91 (voir p.4 No. 1) et permettant au système de se connecter au un téléviseur numérique HDMI /un projecteur / un périphérique LCD. Veuillez brancher le connecteur HDMI_SPDIF de la carte VGA HDMI sur ce connecteur. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 92 Assemblez le câble USB 3.0 et le avant USB 3.0. support arrière USB 3.0. Étape 3 Étape 4 Vissez les deux vis dans le support Placez le support arrière USB 3.0 arrière USB 3.0. dans le châssis. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 93 64-bit / XP / XP 64-bit avec fonctions RAID ® Si vous souhaitez installer Windows 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit OS sur votre lecteur de disque dur SATA3 avec les fonctions RAID, veuillez Fatal1ty 990FX Professional Series Motherboard...
  • Seite 94 B.Réglez «SATA Mode « sur [IDE]. (Pour SATA3_1 à SATA3_6.) Réglez «Marvell SATA3 Operation Mode « sur [IDE]. (Pour eSATA3.) ® ÉTAPE 2: Installer le système d’exploitation Windows 7 / 7 64-bit / Vista / Vista 64-bit sur votre système. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 95 B.Réglez «SATA Mode « sur [AHCI]. (Pour SATA3_1 à SATA3_6.) Réglez «Marvell SATA3 Operation Mode « sur [AHCI]. (Pour eSATA3.) ® ÉTAPE 2: Installer le système d’exploitation Windows 7 / 7 64-bit / Vista / Vista 64-bit sur votre système. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 96 CD-ROM. Le Menu principal s’affi che automatiquement si “AUTORUN” est activé dans votre ordinateur. Si le Menu principal n’apparaît pas automatiquement, locali- sez dans le CD technique le fi chier “ASSETUP.EXE” dans le dossier BIN et double- cliquez dessus pour affi cher les menus. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 97: Contenuto Della Confezione

    1. Introduzione Grazie per aver scelto una scheda madre Fatal1ty 990FX Professional Series, una scheda madre affi dabile prodotta secondo i severi criteri di qualità ASRock. Le prestazioni eccellenti e il design robusto si conformano all’impegno di ASRock nella ricerca della qualità e della resistenza.
  • Seite 98 Audio - 7.1 CH HD Audio con protezioni contenuti (Realtek ALC892 Audio Codec) - Supporto audio Blu-ray Premium - Supporto THX TruStudio - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Broadcom BCM7781 - Supporta Wake-On-LAN Fatal1ty 990FX Professional Series Motherboard...
  • Seite 99 - 1 x porta coassiale SPDIF Out - 1 x porta ottica SPDIF Out - 5 x porte USB 2.0 già integrate - 1 x porta Fatal1ty per Mouse (USB 2.0) - 2 x porte USB 3.0 già integrate - 2 x connettori eSATA3 - 2 x porte LAN RJ-45 con LED (LED azione/collegamento e LED velocità)
  • Seite 100 / XP / XP 64 bit - FCC, CE, WHQL Certifi cazioni - Predisposto ErP/EuP (è necessaria l’alimentazione predis posta per il sistema ErP/EuP) (vedi ATTENZIONE 15) * Per ulteriori informazioni, prego visitare il nostro sito internet: http://www.asrock.com Fatal1ty 990FX Professional Series Motherboard...
  • Seite 101 Questa scheda madre supporta l’ingresso stereo e mono per il microfono. Questa scheda madre supporta le modalità 2 canali, 4 canali, 6 canali e 8 canali per l’uscita audio. Controllare la tavola a pagina 5 per eseguire il collegamento appropriato. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 102 / Vista 64 bit e che la versione del browser sia IE8. Sito ASRock: http://www.asrock.com/Feature/SmartView/index.asp 11. ASRock XFast USB può accelerare le prestazioni del dispositivo d’archi- viazione USB. Le prestazioni dipendono dalle proprietà del dispositivo. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 103 5 v è più alta del 50% con un consumo di corrente di 100 mA. Per la scelta di un’ali- mentatore predisposto EuP consigliamo di verifi care ulteriori dettagli con il produttore. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 104 5. Nell’usare i giraviti per fi ssare la scheda madre al telaio non serrare eccessivamente le viti! Altrimenti si rischia di danneg- giare la scheda madre. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 105 PU FAN (CPU_FAN1, fare riferimento a pagina 4, Numero 4 o CPU_FAN2, fare riferimento a pagina 4, Numero 5). Per eseguire un’installazione appropriata, fare riferimento al manuale d’istruzioni della ventolina CPU e del dispersore di calore. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 106 2.3 Installazione dei moduli di memoria (DIMM) La scheda madre Fatal1ty 990FX Professional Series fornisce quattro alloggia- menti DIMM DDR3 (Double Data Rate 3) a 240 pin, e supporta la tecnologia Dual Channel Memory. Per la confi gurazione a due canali, è necessario installare sempre coppie identiche (stessa marca, velocità, dimensioni e tipo di chip) di DIMM DDR3...
  • Seite 107 DIMM stessa. Fase 3. Inserire saldamente la DIMM nello slot fi no a far scattare completamente in posizione i fermagli di ritegno alle due estremità e fi no ad installare correttamente la DIMM nella sua sede. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 108 2.4 Slot di espansione (Slot PCI ed Slot PCI Express) Sulla scheda madre Fatal1ty 990FX Professional Series c’è 2 slot PCI ed 5 slot PCI Express. Sono utilizzati per installare schede di espansione con Interfaccia PCI Slot PCI: a 32-bit.
  • Seite 109 Quad CrossFireX è supportata solo dal sistema operativo ® Windows Vista / 7. Visitare il sito AMD per gli aggiornamenti dei driver AMD CrossFireX . Attenersi alle procedure d’installazione, a pagina 22, per i dettagli. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 110 1394 GUID e indirizzo MAC saranno cancellati solo se è rimossa la batteria della CMOS. L’interruttore Clear CMOS (Cancella CMOS) ha la stessa funzione del jumper Clear CMOS. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 111 6.0 Gb/s. USB_PWR Collettore USB 2.0 Oltre alle sei porte USB 2.0 predefi nite nel pannello I/O, la (9-pin USB6_7) DUMMY scheda madre dispone di (vedi p.4 Nr. 26) due intestazioni USB 2.0. USB PWR Fatal1ty 990FX Professional Series Motherboard...
  • Seite 112 1. La caratteristica HDA (High Defi nition Audio) supporta il rilevamento dei connettori, però il pannello dei cavi sul telaio deve supportare la funzione HDA (High Defi nition Audio) per far sì che questa operi in modo corretto. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 113 è in stato di standby S1. Il LED è spento quando il sistema è in stato di sospensione /ibernazione S3/S4 oppure spento (S5). HDLED (LED attività disco rigido): Va collegato al LED attività disco rigido del pannello frontale del telaio. Il Fatal1ty 990FX Professional Series Motherboard...
  • Seite 114 Connettore ventolina CPU Collegare il cavo della ventolina CPU_FAN_SPEED CPU a questo connettore e far (4-pin CPU_FAN1) +12V FAN_SPEED_CONTROL combaciare il fi lo nero al pin (vedi p.4 Nr. 4) terra. 1 2 3 4 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 115 12V, l‘unita‘ puo‘ ancora essere funzionante se viene utilizzata una fornitura elettrica tradizionale a 4-pin ATX 12V. Per usare tale fornitura elettrica 4-pin ATX 12V, prego collegare la presa elettrica al Pin 1 e Pin 5. Installazione elettrica 4-Pin ATX 12V Fatal1ty 990FX Professional Series Motherboard...
  • Seite 116 SPDIF su scheda (2-pin HDMI_SPDIF1) HDMI VGA, consente al (vedi p.4 Nr. 1) sistema di collegare dispositivi per TV digitale HDMI/proiettori/ LCD . Collegare il connettore HDMI_SPDIF della scheda VGA HDMI a questo header. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 117 Punto 2 Collegare il cavo USB 3.0 e il anteriore. supporto USB 3.0 posteriore. Punto 3 Punto 4 Avvitare le due viti nel supporto USB 3.0 Inserire il supporto USB 3.0 posteriore. posteriore nel telaio. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 118 (vedi p.4 Nr. 21) agli utenti di resettare rapidamente il sistema. Interruttore pulizia CMOS L’interruttore di pulizia CMOS è (CLRCBTN) un interruttore rapido che (vedi p.5 Nr. 20) consente agli utenti di cancellare velocemente i valori CMOS. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 119 A.Entrare in UTILIT → UEFI SETUP → Avanzate → Confi gurazione Storage. B.Impostare “SATA Mode” su [IDE]. (Per SATA3_1 a SATA3_6.) Impostare “Marvell SATA3 Operation Mode” su [IDE]. (Per eSATA3.) ® 2° PASSO: Installazione di Windows XP / XP 64-bit sul sistema. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 120 B.Impostare “SATA Mode” su [AHCI]. (Per SATA3_1 a SATA3_6.) Impostare “Marvell SATA3 Operation Mode” su [AHCI]. (Per eSATA3.) ® Passo 2: Installazione di Windows 7 / 7 64-bit / Vista / Vista 64-bit sul sistema. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 121 Inserire il CD di supporto nel lettore CD-ROM. Se la funzione “AUTORUN” è attivata nel computer, apparirà automaticamente il Menù principale. Se il Menù principale non appare automaticamente, posizionarsi sul fi le “ASSETUP.EXE” nel CESTINO del CD di supporto e cliccare due volte per visualizzare i menù. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 122: Contenido De La Caja

    1. Introducción Gracias por su compra de Fatal1ty 990FX Professional Series placa madre, una placa de confi anza producida bajo el control de calidad estricto y persistente. La placa madre provee realización excelente con un diseño robusto conforme al com- promiso de calidad y resistencia de ASRock.
  • Seite 123 - 7.1 CH HD Audio con Protección de Contenido Audio (Realtek ALC892 Audio Codec) - Compatible con audio Blu-ray de alta calidad - Compatible con THX TruStudio - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Broadcom BCM57781 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 124 - 1 x puerto de salida coaxial SPDIF - 1 x puerto de salida óptica SPDIF - 5 x puertos USB 2.0 predeterminados - 1 x puerto de ratón Fatal1ty (USB 2.0) - 2 x puertos USB 3.0 predeterminados - 2 x conectores eSATA3 - 2 x puertos LAN RJ-45 con LED (LED de ACCIÓN/...
  • Seite 125 - Sensibilidad a la temperatura de la placa madre - Taquimetros de los ventiladores del procesador y del CPU / chasis / alimentacion - Ventilador silencioso para procesador - Control de ajuste de la velocidad del ventilador de la CPU y el chasis Fatal1ty 990FX Professional Series Motherboard...
  • Seite 126 Que la velocidad de memoria de 2100 MHz se admita o no se admita, depende de la confi guración AM3/AM3+ Procesador que adopte. Si de- sea adoptar el módulo de memoria DDR3 2100 en esta placa base, con- Fatal1ty 990FX Professional Series Motherboard...
  • Seite 127 ASRock APP Charger. Simplemente mediante la instalación del controlador de APP Charger, podrá cargar su iPhone de forma mucho más rápida que antes, hasta un 40%, desde su equipo. ASRock APP Charger le permite cargar de forma Fatal1ty 990FX Professional Series Motherboard...
  • Seite 128 EuP. Según las directrices de Intel, una fuente de alimentación que cum- pla con la directiva EuP debe satisfacer el estándar, es decir, la efi ciencia de energía de 5v en modo de espera Fatal1ty 990FX Professional Series Motherboard...
  • Seite 129 4. Ponga cualquier componente deslocalizado sobre la bolsa anti-estástica que viene con la placa madre. 5. Al colocar los tornillos en sus agujeros para fi jar la placa madre en el chasis, no los apriete demasiado. Eso podría dañar la placa madre. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 130 CPU FAN (CPU_FAN1, consulte Página 4, N. 4 o CPU_FAN2, consulte Página 4, N. 5). Para realizar la instalación correctamente, consulte el manual de instruc ciones del ventilador de la CPU y el radiador. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 131 2.3 Instalación de Memoria La placa Fatal1ty 990FX Professional Series ofrece cuatro ranuras DIMM DDR3 de 240 pines, y soporta Tecnología de Memoria de Doble Canal. Para la confi gura- ción de doble canal, necesitará instalar siempre pares DIMM DDR3 idénticos (de la misma marca, velocidad, tamaño y tipo) en las ranuras del mismo color.
  • Seite 132 DIMM. Paso 3. Inserte la DIMM con fi rmeza dentro de la ranura hasta que los clips de sujeción de ambos lados queden completamente introducidos en su sitio y la DIMM se haya asentado apropiadamente. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 133 2.4 Ranuras de Expansión (ranuras PCI y ranuras PCI Express) La placa madre Fatal1ty 990FX Professional Series cuenta con 2 ranuras PCI y 5 ranuras PCI Express. Ranura PCI: Para instalar tarjetas de expansión que tienen 32-bit Interface PCI. Ranura PCI Express:...
  • Seite 134 / 7. Consulte el sitio web de AMD si desea obtener más información acerca de las actualizaciones de los controladores de AMD CrossFireX . Por favor, siga los procedimientos de instalación de la página 22 para conocer las instrucciones detalladas. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 135 Tenga en cuenta que la contraseña, la fecha, la hora, el perfi l predeterminado del usuario, el GUID 1394 y la dirección MAC solamente se borrará si la batería CMOS se quita. El conmutador Borrar CMOS tiene la misma función que el puente Borrar CMOS. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 136 Además de seises puertos USB_PWR USB 2.0 predeterminados en el (9-pin USB6_7) DUMMY panel de E/S, hay dos bases (vea p.4, N. 26) de conexiones USB 2.0 en esta placa base. Cada una de USB PWR Fatal1ty 990FX Professional Series Motherboard...
  • Seite 137 Conector de audio de Este es una interface para panel frontal cable de audio de panel frontal que permite conexión y control (9-pin HD_AUDIO1) conveniente de apparatos de (vea p.4, N. 34) Audio. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 138 El LED se enciende cuando el sistema esté en funcionamiento. El LED parpadea cuando el sistema se encuentre en estado de suspensión S1. El LED se apaga cuando el sistema se encuentre en estado de suspensión S3/S4 o se apaga (S5). Fatal1ty 990FX Professional Series Motherboard...
  • Seite 139 La velocidad del venti- +12V (3-pin CHA_FAN2) CHA_FAN_SPEED lador CHA_FAN1/2/3 se puede (vea p.4, N. 6) controlar mediante UEFI o AXTU. +12V (3-pin CHA_FAN3) CHA_FAN_SPEED (vea p.4, N. 24) (3-pin PWR_FAN1) +12V PWR_FAN_SPEED (vea p.4, N. 10) Fatal1ty 990FX Professional Series Motherboard...
  • Seite 140 Tenga en cuenta que es necesario conectar este (8-pin ATX12V1) conector a una toma de (vea p.4, N. 2) corriente con el enchufe ATX 12V, de modo que proporcione sufi ciente electricidad. De lo contrario no se podrá encender. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 141 (HDMI_SPDIF1 de 2 pin) VGA HDMI, permite al sistema (vea p.4, N. 1) conectarse a dispositivos de TV Digital HDMI / proyectores / Dispositivos LCD. Conecte el conector HDMI_SPDIF de la tarjeta VGA HDMI a esta cabecera. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 142 USB3_3_4) de la placa base. Guía de instalación del soporte USB 3.0 posterior Paso 1 Paso 2 Desatornille los dos tornillos del panel Coloque el cable USB 3.0 el soporte USB 3.0 frontal. USB 3.0 posterior juntos. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 143 CMOS. Conmutador de borrado de memoria CMOS El conmutador de encendido es (CLRCBTN) un conmutador rápido que (vea p.5, N. 20) permite al usuario encender / apagar rápidamente el sistema. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 144 B.Confi gure la “SATA Mode” a [IDE]. (Para SATA3_1 a SATA3_6.) Confi gure la “Marvell SATA3 Operation Mode” a [IDE]. (Para eSATA3.) ® PASO 2: Instale el sistema operativo Windows XP / XP 64 bits en su sistema. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 145 B.Con gure la “SATA Mode” a [AHCI]. (Para SATA3_1 a SATA3_6.) Con gure la “Marvell SATA3 Operation Mode” a [AHCI]. (Para eSATA3.) ® PASO 2: Instale el sistema operativo Windows 7 / 7 64 bits / Vista Vista 64 bits en su sistema. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 146 Para iniciar la instalación, ponga el CD en el lector de CD y se des- plegará el Menú Principal automáticamente si «AUTORUN» está habilitado en su computadora. Si el Menú Principal no aparece automáticamente, localice y doble-pulse en el ar- chivo “ASSETUP.EXE” para iniciar la instalación. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 147 3,5- 1 x I/O USB 3.0 1 x К USB 3.0 ASRock SLI_Bridge_2S ASRock а и а Д ® Windows 7 / 7 64-bit / Vista / Vista 64-bit BIOS Storage Configuration (К AHCI. BIOS Fatal1ty 990FX Professional Series Motherboard...
  • Seite 148 Premium Blu-ray audio THX TruStudio В - PCIE x 1 Gigabit LAN 10/100/1000 Mb/s - Broadcom BCM57781 Wake-On-LAN Ethernet 802.3az I/O Panel - 1 x PS/2 - 1 x PS/2 - 1 x Coaxial SPDIF Out Fatal1ty 990FX Professional Series Motherboard...
  • Seite 149 Clear CMOS - 1 x Power Switch - 1 x Reset Switch - 32Mb AMI UEFI Legal BIOS ckoro p e ca BIOS “Plug and Play” - ACPI 1.1, SMBIOS 2.3.1 CPU, VCCM, NB, SB Fatal1ty 990FX Professional Series Motherboard...
  • Seite 150 Microsoft Windows 7 / 7 64-bit / Vista Vista / XP / XP 64-bit - FCC, CE, WHQL ErP/EuP Ready ( ErP/EuP) ( * Д http://www.asrock.com В И А И BIOS, Untied Overclocking . М Fatal1ty 990FX Professional Series Motherboard...
  • Seite 151 F-Stream – Hardware Monitor ( ), Fan Control ( Overclocking (« » ), OC DNA ( « ») and IES (А Hardware Monitor ( Fan Control Overclocking Ц (« » DNA ( « ») « » Fatal1ty 990FX Professional Series Motherboard...
  • Seite 152 З (S3), (S4) (S5). APP Charger, ASRock: http://www.asrock.com/Feature/AppCharger/index.asp 10. SmartView — Facebook ASRock SmartView, ® SmartView Windows 7/7, / Vista /Vista , 64- IE8. ASRock: http://www.asrock.com/Feature/SmartView/index.asp ASRock XFast USB USB. ASRock MP3- ACPI S5)! К Fatal1ty 990FX Professional Series Motherboard...
  • Seite 153 3,5- 15. EuP Energy Using Product. . Д . К Intel 100 А ( EuP. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 154 2. У а вка ATX (12,0 x 9,6 , 30,5 x 24,4 К ДА . К Д Fatal1ty 990FX Professional Series Motherboard...
  • Seite 155 Ш К 90° З Ц ША 1. ША 2, ША 3. ША 4. Ц я Ц Ц Ц . Ц . З Ц Ц (CPU_FAN1, . 4, 4 / CPU_FAN2, . 4, 5). Д Ц Fatal1ty 990FX Professional Series Motherboard...
  • Seite 156 DDR3_B2 З З З З З З З З (3), DDR3 DIMM. (DDR3_A2 DDR3_B2) Д (DDR3_A1 DDR3_B1), (DDR3_A2 DDR3_B2). DDR3 DIMM Dual Channel Memory Technology А А DDR3_A1 DDR3_A2), Dual Channel Memory Technology DDR, DDR2 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 157 DDR3 ; DIMM DDR3 2100 DDR3_A2 DDR3_B2. я DIMM DIMM Ш DIMM, Ш DIMM notch break notch break DIMM- Ш DIMM- – Fatal1ty 990FX Professional Series Motherboard...
  • Seite 158 3-Way CrossFireX PCI Express x16 PCIE2. CrossFireX PCI Express x16 PCIE2 PCIE4. x16. 3-Way CrossFireX PCI Express x16 PCIE2, PCIE4 PCIE5. PCIE2 PCIE4 x16, PCIE5 - (CHA_FAN1, CHA_FAN2 CHA_FAN3) я Ш Ш Ш Ш 4. З Fatal1ty 990FX Professional Series Motherboard...
  • Seite 159 Д CrossFireX , 3- CrossFireX Quad CrossFireX CrossFireX К. К , CrossFireX CrossFireX Win- ® dows XP Service Pack 2 / Vista / 7. CrossFi- Quad CrossFireX ® Windows Vista / 7. CrossFireX . 22 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 160 К . К “ ” (short). “ ” (open). CMOS (CLRCMOS1, . 4, . 28) CMOS К CMOS. Д CLRCMOS1 CLRCMOS1. CMOS BIOS. CMOS BIOS, CMOS, 1394 GUID MAC- CMOS. Clear CMOS Clear CMOS. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 161 . 4, . 19) (SATA3_3_4, . 4, . 18) (SATA3_5_6, . 4, . 17) SATA3. SATA \ 6,0 К USB 2.0 USB_PWR USB 2.0 USB6_7) DUMMY . 4, . 26) USB 2.0. К USB PWR Fatal1ty 990FX Professional Series Motherboard...
  • Seite 162 USB 3.0 (19- USB3_1_2) . 4, . 12) USB 3.0. К USB 3.0 USB 3.0. (19- USB3_3_4) . 4, . 13) К Д IR1) . 4, . 31) А HD_AUDIO1) . c . 4, .34) Fatal1ty 990FX Professional Series Motherboard...
  • Seite 163 ). З «FrontMic» ( Д ® Windows 7 / 7 64- , Vista / Vista «FrontMic» ( Realtek. «Recording Volume» ( К Д PANEL1) . 4, . 27) я): PWRBTN ( RESET ( « » Fatal1ty 990FX Professional Series Motherboard...
  • Seite 164 +12V . 4, . 6) CHA_FAN_SPEED FAN1/2/3 UEFI AXTU. CHA_FAN3) +12V CHA_FAN_SPEED . 4, . 24) PWR_FAN1) +12V PWR_FAN_SPEED . 4, . 10) CPU_FAN_SPEED +12V FAN_SPEED_CONTROL CPU_FAN1) 1 2 3 4 . 4, . 4) Fatal1ty 990FX Professional Series Motherboard...
  • Seite 165 1-3. К CPU_FAN2) +12V . 4, . 5) CPU_FAN_SPEED К ATX. (24- ATXPWR1) . 4, . 11) ATX, ATX. Д К 12V-ATX ATX12V1) . 4, . 2) ATX 12 , 4-Pin 12V 4-Pin, 4-Pin 12V Fatal1ty 990FX Professional Series Motherboard...
  • Seite 166 IEEE 1394 1394 FRONT_1394) . 4, . 33) IEEE 1394 К Д COM- COM- COM1) . 4, . 30) COM. К К HDMI_SPDIF HDMI_SPDIF HDMI_SPDIF1) VGA- . 4, . 1) HDMI, HDMI. HDMI_SPDIF VGA- HDMI. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 167 З Ш 2,5”- USB 3.0, USB 3.0 Ш З Ш USB 3.0 USB 3.0 2,5”- Ш Ш USB 3.0 USB 3.0 USB 3.0 (USB3_1_2 USB3_3_4) USB 3.0 Ш Ш USB 3.0 USB 3.0. USB 3.0. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 168 USB 3.0 CMOS, CMOS, К Power Switch Power Switch (PWRBTN) . 22) Reset Switch К Reset Switch (RSTBTN) . 4, . 21) К Clear CMOS Switch Clear CMOS Switch (CLRCBTN) . 5, . 20) CMOS. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 169 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit RAID, ® 2.13.1 Windows XP / XP 64-bit ц я RAID ® Windows XP / XP 64-bit RAID, И ц я SATA3 я Fatal1ty 990FX Professional Series Motherboard...
  • Seite 170 SATA3 я ША 1. UEFI. UEFIЎ AdvancedЎ Storage Confi guration. “SATA Mode” [AHCI]. (Д SATA3_1 SATA3_6) “Marvell SATA3 Operation Mode” [AHCI]. (Д eSATA3.) ША 2. ® Windows 7 / 7 64-bit / Vista Vista 64-bit. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 171 <Ctrl> + <Alt> + <Delete> BIOS Setup PDF) 4. И ц я ® Д Microsoft ® Windows : 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit. CD-ROM. (AUTORUN), (Main Menu). ASSETUP.EXE Fatal1ty 990FX Professional Series Motherboard...
  • Seite 172 1. Giriş ASRock’ın kesintisiz titiz kalite denetimi altında üretilen güvenilir bir anakart olan Fatal1ty 990FX Professional Series anakartını satın aldığınız için teşekkür ederiz. ASRock’ın kalite ve dayanıklılık konusundaki kararlılığına uygun güçlü tasarımıyla mükemmel bir performans sunar. Bu Hızlı Takma Kılavuzu anakarta giriş ve adım adım takma kılavuzu içerir. Anakart hakkında daha ayrıntılı...
  • Seite 173 - Premium Blu-ray ses desteği - THX TruStudio destekler - PCIE x1 Gigabit LAN 10/100/1000 Mb/sn - Broadcom BCM57781 - LAN’da Uyan özelliğini destekler - Enerji Verimli Ethernet 802.3az desteği Ekip Oluşturma işlevi ile Çift LAN’I destekler Fatal1ty 990FX Professional Series Motherboard...
  • Seite 174 - 1 x 1 x Koaksiyel SPDIF Çıkışı Portu - 1 x Optik SPDIF Çıkışı Portu - 5 x Kullanıma Hazır USB 2.0 Portu - 1 x Fatal1ty Fare Portu (USB 2.0) - 2 x Kullanıma Hazır USB 3.0 Portu - 2 x eSATA3 konektörler - 2 x RJ-45 LAN Portu, LED’li (AKT/L NK LED’i ve HIZ LED)
  • Seite 175 üçüncü taraf aşırı hızlandırma araçlarını kullanma gibi durumlarda aşırı hızlandırmayla ilgili risk olduğunu unutmayın. Aşırı hızlandırma sisteminizin kararlılığını etkiler veya hatta sisteminizin bileşenlerini ve cihazlarına zarar verebilir. Bu risk size aittir ve zararı siz ödersiniz. Aşırı hızlandırmadan kaynaklanan olası zarardan sorumlu değiliz. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 176 ASRock Anında Flash, Flash ROM'a katıştırılmış bir BIOS fl ash yardımcı programıdır. Bu kullanışlı BIOS güncelleme aracı, sistem BIOS'unu MS- ® DOS veya Windows gibi ilk önce işletim sistemine girmeden güncellemenizi sağlar. Bu yardımcı programla, POST sırasında <F6> Fatal1ty 990FX Professional Series Motherboard...
  • Seite 177 14. CPU aşırı ısınması algılandığında, sistem otomatik olarak kapatılır. Sistemi devam ettirmeden önce, lütfen anakarttaki CPU fanının düzgün çalıştığını kontrol edin ve güç kablosunu çıkarın, sonra geri takın. Isı geçişini artırmak için, PC sistemini yüklediğinizde CPU ile ısı emici arasına ısı macunu sürmeyi unutmayın. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 178 Bileşenleri kenarlarından tutun ve entegre devrelere dokunmayın. Herhangi bir bileşeni çıkardığınızda, bileşeni topraklı bir antistatik altlık üzerine veya bileşenle birlikte gelen poşete koyun. Ana kartı kasaya sabitlemek için vida deliklerine vida takarken lütfen vidaları aşırı sıkmayın! Aksi halde anakart zarar görebilir. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 179 şekilde sabitlendiğinden ve birbiriyle iyi temas ettiğinden emin olun. Ardından CPU fanını CPU FAN konektörüne bağlayın (CPU_FAN1, bkz. Sayfa 4, No. 4 örneğin CPU_FAN2, bkz. Sayfa 4, No. 5). Düzgün şekilde takmak için lütfen CPU fanının ve ısı emicinin kullanım kılavuzlarına bakın. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 180 Bellek Teknolojisi etkinleştirilemez. Bir DDR veya DDR2 bellek modülünü DDR3 yuvasına takmaya izin verilmez; aksi halde bu anakart ve DIMM zarar görebilir. Bu anakartta DDR3 2100 bellek modüllerini çalıştırırsanız, bunlar DDR3_A2 ve DDR3_B2 yuvalarına takmanız önerilir. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 181 DIMM'nin takılabileceği yalnızca bir doğru yön vardır. DIMM'yi yanlış yönde zorla yuvaya takarsanız anakart ve DIMM kalıcı hasar görür. İki uçtaki tutucu klipsler yerine geri oturuncaya ve DIMM düzgün Adım 3. şekilde yerleşinceye kadar DIMM'yi yuvanın içinde bastırın. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 182 Kullanmak istediğiniz yuvaya bakan braketi çıkarın. Vidaları daha sonra kullanmak üzere saklayın. Adım 4. Kartın konektörünü yuvaya hizalayın ve kart yuvaya tam olarak otu- runcaya kadar sıkıca bastırın. Adım 5. Vidalarla kartı kasaya sabitleyin. Adım 6. Sistem kapağını yerleştirin. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 183 XP, Service Pack 2 / Vista / 7 İS’de ® CrossFireX ve Quad CrossFireX özelliği yalnızca Windows Vista desteklenir. AMD CrossFireX sürücü güncellemeleri için lütfen AMD web sitesini kontrol edin. Lütfen ayrıntılar için sayfa 22’ye bakın. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 184 CMOS temizleme işlemini gerçekleştirmeden önce kapatmanız gereklidir. Parola, tarih, saat, kullanıcı varsayılan profi li, 1394 GUID ve MAC adresinin yalnızca CMOS pili çıkarıldığında temizleneceğini lütfen aklınızda bulundurunuz. CMOS Devresini Temizle, CMOS Ayarı'nı Temizle ile aynı işleve sahiptir. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 185 G/Ç panelindeki varsayılan altı USB_PWR USB 2.0 portundan başka, bu (9-pinli USB6_7) anakartta iki USB 2.0 fi şi (bkz. s.4 No. 26) DUMMY bulunur. Her USB 2.0 fi şi iki USB 2.0 portunu destekler. USB PWR Fatal1ty 990FX Professional Series Motherboard...
  • Seite 186 (5-pinli IR1) modülünü destekler. (bkz. s.4 No. 31) Ön Panel Ses Fişi Bu, panel ses kablosu için uygun bağlantı sağlayan ve (9-pinli HD_AUDIO1) ses cihazlarını kontrol (bkz. s.4 No. 34) etmeyi sağlayan bir arayüzdür. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 187 Sistem S3/S4 uyku modunda veya kapalı (S5) iken LED söner. HDLED (Sabit Disk Çalışma LED’i): Kasa üzerindeki sabit disk çalışma LED'ini ön panele bağlayın. Sabit disk veri okurken veya yazarken LED yanar. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 188 Bu anakart 4-Pinli CPU fan (Sessiz Fan) desteği sağlasa da, 3-Pinli CPU fan hızı kontrol işlevi olmadan bile hala başarılı bir şekilde çalışabilir. 3-Pinli CPU fanı bu konektördeki CPU fan konektörüne bağlamayı planlıyorsanız, lütfen Pin 1-3'e bağlayın. Pin 1-3 Bağlı 3-Pinli Fanı Takma Fatal1ty 990FX Professional Series Motherboard...
  • Seite 189 (bkz. s.4 No. 33) (FRONT_1394) de bulunur. Bu IEEE 1394 fi şi bir IEEE 1394 portunu destekler. Bu COM1 fi şi bir seri port Seri port Fişi modülünü destekler. (9-pinli COM1) (bkz. s.4 No. 30) Fatal1ty 990FX Professional Series Motherboard...
  • Seite 190 Ön USB 3.0 Paneli zaten kullanılıyor. 3.0 başlığına (USB3_1_2 veya USB3_3_4) takın. Arka USB 3.0 Braketinin Kurulum Kılavuzu Adım 1 Adım 2 Ön USB 3.0 Panelinden iki vidayı sökün. USB 3.0 kablosunu ve arka USB 3.0 braketini bir araya getirin. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 191 şekilde (RSTBTN) Reset sistemi sıfırlamalarını (bkz. s.4 No.21) sağlayan akıllı bir anahtardır. CMOS'u Temizleme Anahtarı CMOS'u Temizleme Anahtarı, kullanıcıların hızlı bir şekilde (CLRSBTN) CMOS değerlerini (bkz. s.5 No.20) temizlemelerini sağlayan akıllı bir anahtardır. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 192 Gelişmiş ekran Depolama Yapılandırması. B.“SATA Modu” seçeneğini [IDE] olarak ayarlayın. (Için SATA3_1 için SATA3_6) “Marvell SATA3 Operation Modu” seçeneğini [IDE] olarak ayarlayın. (Için eSATA3.) XP / XP 64-bit İS'yi sisteminize yükleyin. ® ADIM 2: Windows Fatal1ty 990FX Professional Series Motherboard...
  • Seite 193 B.“SATA Modu” seçeneğini [AHCI] olarak ayarlayın. (Için SATA3_1 için SATA3_6) “Marvell SATA3 Operation Modu” seçeneğini [AHCI] olarak ayarlayın. (Için eSATA3.) 64-bit İS’yi sisteminize ® ADIM 2: Windows 7 / 7 64-bit / Vista / Vista yükleyin. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 194 Destek CD'sini kullanmaya başlamak için, CD'yi CDROM sürücünüze takın. Bilgisayarınızda "OTOMATİK KULLAN" özelliği etkinleştirilmişse, Ana Menüyü otomatik olarak görüntüler. Ana Menü otomatik olarak görüntülenmezse, menüleri görüntülemek için Destek CD'sinin “BIN” klasöründeki "ASSETUP.EXE" dosyasını bulun ve çift tıklatın. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 195 HDD 나사목족 개 섀시나사목6 개 후면목얻S야목조.사목브래킷목삭개 AS억oc역목SLI_ 브릿지 _암S목카드목삭 개 AS억oc역은사용자에게목알 니다 AS억oc역은사용자에게목알 니다 ... ®목 T높목 T높 Window지 7목넣목7목6족-비트목넣목얼i지직a 넣목얼i지직a 목6족-비트의목성능을목향상시키기목 위해서목 S직ora박e목 약on바i박배ra직ion(스토리지목 성)에서목 야IOS목 옵션을목 AH약I목 모드로목설정하는목것이목좋습니다.목야IOS목설정과목관련하여목자세한목내용은목지 원목약D에목포 된목 사용목설명서 를목참조하 시오. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 196 지원목 ® T높 T높목 목 -목놓얼IDIA 목어배ad목SLI 목및목SLI 지원 목오디오목 -목7.삭목약H목HD목A배dio목 목보호목 목 목목(억eal직e역목AL약치칙암목A배dio목약odec) 목 -목Premi배m목야l배-ra픽목오디오목지원 T높 목 -목THX목Tr배S직배dio 지원 목랜목 -목P약IE목피삭목Gi박abi직목LA놓목삭사넣삭사사넣삭사사사목높b넣지목 목 -목야roadcom목야약높577치삭 목 -목웨이크 - 온 - 랜목지원 목 -목절전형목이더넷목치사암.조a집목지원 목 -목티밍목기능이목있는목듀 목LA놓목지원 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 197 목 -목전면부목오디오목콘넥터 목 -목얻S야목암.사목헤더목암 개목(족 개의목 가목얻S야목암.사목포트를목지원하는목헤더목목 목 목목목암 개목)목 목 -목얻S야목조.사목헤더 암 개목(족 개의목 가목얻S야목조.사목포트를목지원하는목헤더목목 목 목목목암 개목)목 목 -목Dr.목Deb배박목(7 세그먼트목디버그목LED)목삭 개목 목빠른목스위치목 -목LED 가목달린목약높OS목삭제목스위치목삭 개 목 -목LED 가목달린목전원목스위치목삭 개 목 -목LED 가목달린목리셋목스위치목삭 개 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 198 -목F약약,목약E,목WH어L 목 -목ErP넣E배P목지원 (ErP넣E배P목지원목전원목공급기가목요 됨 )목 목 목목( 주의목삭5목참조 ) 목*목상세한목제품정보는목당사의목웹사이트를목방문할수있습니다 .목h직직p:넣넣www.a지roc역.com 경고 오버클로킹에는목야IOS목설정을목조정하거나목얻n직ied목O백ercloc역in박목Technolo박픽 를목적용하목 거나타 체의목오버클로킹목도 를목사용하는목것을목포 하여목어느목정도의목위험이목따른다는목목 것을목유념하 시오 .목오버클로킹은목시스템목안정성에목영향을목주거나목 지어목시스템의목 성목목 요 와목장치에목손상을목 힐지도목모릅니다 .목오버클로킹은목사용자목스스로목위험과목비용을목감목 수하고목해야목 니다 .목당사는목오버클로킹에목의해목발생할목수목있는목손상에목대해서목책 이목 목 습니다 . Fatal1ty 990FX Professional Series Motherboard...
  • Seite 199 치.목 AS억oc역목In지직an직목Fla지h 는목플래시 억O높 에목내장된목야IOS목유틸리티 목 목 목 니다 .목이목편리한목야IOS목 데이트목툴을목사용하면목먼 목높S-DOS 나목 목 목 목 Window지 ® 같은목운영체제에목들어가지목않고도목시스템목야IOS 를목 데 목 목 목 이트할목수목있습니다 .목POST목중에목야IOS목셋 목메뉴에서목<F6침목키를목누 목 목 목 르거나목<F암침목키를목누르면이목유틸리티로목AS억oc역목In지직an직목Fla지h 에목 목 목 목 액세스할목수목있습니다 ..목이제목이목툴을목시 하여목얻S야목플래시목드라이 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 200 삭5.목 E배P 는목Ener박픽목얻지in박목Prod배c직목( 에너지목사용목제품 ) 의목 어이며목유 목 목 목 럽목연 이목완제품목시스템의목전력목 비량을목정의하기목위해목제정한목표 목 목 목 준이었습니다 .목E배P 에목따르면 ,목완제품목시스템의목총목A약목전원은목끄 목 목 목 기목모드목상 에서목삭.사사W목 만이어야목 니다 .목E배P목표준을목충 하 목 목 목 면목E배P목지원목마더보드목및목E배P목지원목전원공급장치가목필요 니다 .목인 목 목 목 텔 (In직el) 의목제안에목따르면목E배P목지원목전목원공급장치는목5얼목대기목전력목 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 201 암.목목 메인보드의목손상을목피하기목위하여목정전기목방지를목해주시고 ,목 카펫이나목그와목유사한목장 에서의목취급은목절대목 가목해목주시 기목바랍니다 .목부품들을목취급하기목전에목반드시목정전기목방지용목 손 목띠를목 용하거나목안전하게 지된목장 에서목사용해야목 한다는목것을목잊지목마시기목바랍니다 . 조.목 날카로운목것으로목부품을목 거나목I약 를목만지지목마세요 . 족.목 부품들을목제거할목때에도목 지된목방전목패드나목 에목담으시기목 바랍니다 . 5.목 나사를목나사목 멍에목맞춰목마더보드를목샤시에목고정시킬목때 ,목 나사를목너무세게목조이지목않도 목하 시오 .목너무목세게목조이면목 마더보드에목무리가목갈수목있습니다 . Fatal1ty 990FX Professional Series Motherboard...
  • Seite 202 눌러서목 급니다 치시킵니다 암.암목목약P얻목팬과목방열판목설치 본목머더보드에목약P얻 를목설치한목후에는목더목큰목방열판과목냉 팬을목설치하여목열을목분산 시킬목필요가목있습니다 .목또한 ,목열목분산을목향상시킬목수목있도 목약P얻 와방열판목사이에목 서멀목그리스를목뿌릴목필요가목있습니다 .목약P얻 와목방열판이목 실하게목고정되고목서로목잘목 되도 목하 시오 .목그런목다음목약P얻목팬을목약P얻목FA놓목커넥터 (약P얻_FA놓삭,목족 페이 지 ,목족 번목참조목넣목약P얻_FA놓암,목족 페이지 ,목5 번목참조 ) 에목연결하 시오 .목올바른목설치를목 위하여목약P얻목팬과목방열판의목사용설명서를목참조하 시오 . Fatal1ty 990FX Professional Series Motherboard...
  • Seite 203 치한목경우목듀 목 널목메모리목기술은목활성 되지목않습니다 . 족.목 한목쌍의목메모리목모듈을목동 한 “ 듀 목 널 ”( 예를목들어목DD억조_A삭 과목 DD억조_A암) 에목설치하지목않은목경우목듀 목 널목메모리목기술은목활성 되지목않습니다 .목 5.목 DD억,목DD억암 을목DD억조목슬롯에목설치하거나목면목안 니다 .목잘못목설치하 면목이목마더보드와 DI높높목메모리가목손상될목수목있습니다 . 6.목 이목메인보드에서목DD억조목암삭사사목메모리목모듈을목 한목경우 ,목DD억조_ A암목및목DD억조_야암목슬롯에목설치할목것을목권장 니다 . Fatal1ty 990FX Professional Series Motherboard...
  • Seite 204 을목풀어주세요 . 단계목암.목 메모리목 켓에목DI높높목모듈을목맞 어목끼워목주세요 . notch break notch break DI높높 은목바른목위치에목정 하게목 하여야목 니다 .목만 목무리한목힘을 주어목잘못목 하면목DI높높 이나목메인보드에목치명적인목불량을목유발목 시킵니다 .목 단계목조.목 DI높높목모듈을목 목시목바깥에목있는목손 이목두개가목완전히목돌아목올목때목까지목 목 목( 끼워목질목때목까지 )목눌러서목정 히목장 목될목수목있도 목하여야목 니다 . Fatal1ty 990FX Professional Series Motherboard...
  • Seite 205 음목진행해목주시기목바랍니다 .목그리고목설치목하시기목전에목 장목카드의목 목 사용자목설명서목등을목 으시고 ,목카드에목필요한목하드웨어목셋팅을목하여목 목 주시기목바랍니다 . 단계목암.목 사용하고자목하는목슬롯의목브라켓목덮개를목제거하여목주세요 .목나사는목 목 나중에목사용을목위하여목보관하여목주세요 . 단계목조.목 카드와목슬롯을목 치시키고목슬롯에목카드가목안 목될목때까지목부드럽게목 목 눌러주세요 . 단계목족.목 케이스와목카드를목나사로목고정하여목주세요 . 단계 5.목 나사를목조여목카드를목섀시에목고정시킵니다 .목 단계 6.목목 시스템목덮개를목 습니다 . Fatal1ty 990FX Professional Series Motherboard...
  • Seite 206 목XP목( 서비 T높 T높목 목 스목 목암)목넣목얼i지직a 목넣목7목OS 에서목지원 니다 .목조-Wa픽목약ro지지FireX 및 어배ad목약ro지지Fi- T높 T높 ® 목기능은목Window지 목얼i지직a 목넣목7목OS 에서만목지원 니다 .목A높D목웹목사이트에서목 T높 T높 A높D 목약ro지지FireX 목드라이버목 데이트를목 인하 시오 .목자세한목내용은목암암 페이 지의목설치목절 를목참조하 시오 . Fatal1ty 990FX Professional Series Motherboard...
  • Seite 207 목동안목단 하 시오 .목그러나목야IOS목 데이트목 후에는목 약높OS 를목 삭제하지목 마 시오 .목 야IOS 를목 데이트하자마자목 약높OS 를목 삭제해야목하는목경우목먼 목시스템을목부팅하고목약높OS 를목종료하고목삭제목 을목해 야목 니다 .목약높OS목 터리를목제거할목경우에만목 호 ,목날짜 ,목시간 ,목사용자목기본목프 로파 ,목삭조칙족목G얻ID,목높A약목주 가목삭제 니다 . 약lear목약높OS목Swi직ch는목약lear목약높OS목점퍼와목동 한목기능을목 고목 있습니다.목 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 208 목 데이터목전송목 도를지원 니다 . 얻S야목암.사목헤더 본목머더보드에는목I넣O목패널에목있목 USB_PWR 목 는목6 개의목기본목얻S야목암.사목포트목목목 (칙 핀목얻S야6_7) 목 외에도목얻S야목암.사목헤더가목암 개목있목 (족 페이지 ,목암6 번목항 목참조 ) DUMMY 목 습니다 .목 의목얻S야목암.사목헤더목 목 는목암 개의목얻S야목암.사목포트를목지원목 목 할목수목있습니다 . USB PWR Fatal1ty 990FX Professional Series Motherboard...
  • Seite 209 이목헤더는목선 품 인목무선목 목 적외선목송수신목모듈을목 (5 핀목I억삭) 목 지원 니다 . (족 페이지 ,목조삭 번목항 목참조 ) 전면부목오디오목콘넥터목 이목콘넥터는목오디오목장치를목 목 편리하게목조절하고목연결할목수목목 (칙 핀 HD_A얻DIO삭)목 목 있는목전면목오디오목인터페이스목목 (목족 페이지 ,목조족 번목항 목참조 )목 목 니다 . Fatal1ty 990FX Professional Series Motherboard...
  • Seite 210 을목때는 LED 가목켜져목있습니다 .목시스템이목S삭목대기목상 에목있을목때는목LED목 목 목 가목계 목깜 니다 .목시스템이목S조넣S족목대기목상 목또는목전원목꺼 (S5)목상 목 목 목 에목있을목때는목LED 가목꺼져목있습니다 .목 목 목 HDLED( 하드목드라이브목동 목LED):목 목 목 섀시목전면목패널의목하드목드라이브목동 목LED 에목연결 니다 .목하드목드라이목 목 목 브가목데이터를목 거나목쓰고목있을목때목LED 가목켜져목있습니다 . Fatal1ty 990FX Professional Series Motherboard...
  • Seite 211 1 2 3 4 목 목 본목머더보드가목족 핀목약P얻목팬 ( 음목팬 )목지원을목제공하기는목하지만목팬목 목 목 목 도목제어기능 이도목조 핀목약P얻목팬을목성공적으로목 동할목수목있습니다 .목본목머목 목 목 더보드의 약P얻목팬목커넥터에목조 핀목약P얻목팬을목연결하 면목삭-조 번목핀에목연결목 목 목 하 시오 . 삭-조 번목핀에목연결됨 조 핀목팬목설치 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 212 해야 니다 .목 족- 핀목ATX목삭암얼목전원공급장치 IEEE목삭조칙족목헤더목 이본목머더보드에는목I넣O목패널에목목 목 있는목삭 개의목기본목IEEE목삭조칙족 포 (칙 핀목F억O놓T_삭조칙족) 목 트외에도목IEEE목삭조칙족 (족 페이지 ,목조조 번목항 목참조 ) 목목 (F억O놓T_삭조칙족)목헤더가목삭 개목목목 목 있습니다 .목 의목IEEE목삭조칙족목목 목 헤더는목삭 개의목IEEE목삭조칙족목포목 목 목 트를지원할목수목있습니다 . Fatal1ty 990FX Professional Series Motherboard...
  • Seite 213 (족 페이지 ,목조사 번목항 목참조 ) HD높I_SPDIF목헤더목 HD높I목얼GA목카드에목SPDIF목오목 목 디오목출력을목제공하는목 목 목 (암 핀목HD높I_SPDIF삭) 목 HD높I_SPDIF목헤더는목시스템목 (족 페이지 ,목삭 번목항 목참조 )목 목 이목HD높I목디지털목T얼넣 프로 목목 목 터 넣L약D목장치에목연결할목수목있목목 목 게목 니다 .목HD높I목얼GA목카드의목 목 HD높I_SPDIF목커넥터를목이목헤목 목 더에목연결하 시오 .목 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 214 고정 니다 . 6목단계 단계 5목단계 단계 전면목얻S야목조.사목케이블을목마더보드의목얻S야목 전면목얻S야목조.사목패널이목사용목 조.사목헤더(얻S야조_삭_암목또는목얻S야조_조_족)에목 준비가목완료 니다. 연결 니다. 후면목얻S야목조.사목브래킷의목설치목안내서 목삭목단계 단계 목암목단계 단계 전면목얻S야목조.사목패널에서목두목개의목나사를목 얻S야목조.사목케이블과목후면목얻S야목조.사목 제거 니다. 브래킷을목연결 니다. 조목단계 단계 목족목단계 단계 후면목얻S야목조.사목패널에목두목개의목나사를목 후면목얻S야목조.사목브래킷을목섀시에목 장 니다. 장 니다. Fatal1ty 990FX Professional Series Motherboard...
  • Seite 215 사용자가목시스템을목빠르게목켜거 (족 페이지 ,목암암 번목항 목참조 )목 나목끌목수목있습니다 . 리셋목스위치 리셋목스위치는목빠른목스위치로서 ,목 (억ST야T놓) 사용자가목시스템을목빠르게목리셋 (족 페이지 ,목암삭 번목항 목참조 )목 할목수목있습니다 . 약높OS목삭제목스위치 약높OS목삭제목스위치는목빠른목스위 (약L억약야T놓) 치로서 ,목사용자가목약높OS목값을목 (5 페이지 ,목암사 번목항 목참조 )목 빠르게목삭제할목수목있습니다 . Fatal1ty 990FX Professional Series Motherboard...
  • Seite 216 6족- 비트목넣목XP목넣목XP목6족- 비트목운영목체제를목설치하 는목경우 ,목자세한목절 는목지원목약D 의목다음목경로에목있는목설명서를목참조하 시오 . ..\목억AID목In지직alla직ion목G배ide목 암.삭조목목목억AID목기능이목지원되지목않는목Window지 ® 목7목넣목7목목 목목목목 T높 T높목 목 목목목6족목비트목넣목얼i지직a 목넣목얼i지직a 6족목비트목넣목XP목넣목 목목목목목목목목목목XP목6족목비트 ® 설치 SATA조목HDD 에목억AID목기능을목지원하지목않는목Window지 목7목넣목7목6족- 비트목넣목 T높 T높 얼i지직a 목넣목얼i지직a 목6족- 비트목넣목XP목넣목XP목6족- 비트목를목설치하거나 ,목다음목단계목를목따르 시오 . Fatal1ty 990FX Professional Series Motherboard...
  • Seite 217 목목목목( 고급 면 )목 → 목S직ora박e목약on바i박배ra직ion목(S직ora박e목 성 )목을목선 니다 . 야. SATA목높ode 을목없AH약I] 로목설정한 .목( 용 SATA조_삭목에 SATA조_6.)목 목목목목목 높ar백ell목SATA조목Opera직ion목높ode 을목없AH약I] 로목설정한 .목( 용 eSATA조.)목 T높 T높 단계목암:목시스템에목Window지 ® 목7목넣목7목6족목비트목넣목얼i지직a 목넣목얼i지직a 목6족목비트목목 목 목목목 목목목목목목목목목목목목OS목를목설치 니다 . Fatal1ty 990FX Professional Series Motherboard...
  • Seite 218 6족목비트 넣XP넣XP목6족목비트 .목메인보드에목필요한목드라이버 와목사용자목편의를목위해목제공되는목보조목약D 는목메인보드목의목기능을목향상시켜목줄목것 니 다 .목보조목약D 를목사용하여목시 하시 면 ,목약D-억O높목드라이브에목약D 를목 어주시기목바 랍니다 .목만 목고 의목컴퓨터가목 A얻TO억얻놓 목이목가능하다면목자동으로목메인목메 뉴를목모니터에목디스플레이목시켜목줄목것 니다 .목만 목자동으로목메인목메뉴가목나타나지목 않는다면 ,목보조목약D 의목디스플레이목메뉴목안에목있는목야I놓목폴더 ASSET얻P.EXE목파 을목 더블목클 하여목주시기목바랍니다 . (D:목목\ 야I놓목\ ASSET얻P.EXE,목목D: 는목약D-억O높목드라이브 ) Fatal1ty 990FX Professional Series Motherboard...
  • Seite 219 く く背面 く く く く ー 知 知 く ®く く く く く く く く く 良い性能 得 ー 構成 ン ー 設定 推 奨 く い 詳細 ー ー ー 参照 い Fatal1ty 990FX Professional Series Motherboard...
  • Seite 220 く く く く ー ー く く く く ー く く く く く く く く く く く く く く く く ー く く く く く く ー Fatal1ty 990FX Professional Series Motherboard...
  • Seite 221 く く く く く く く く く く く ン く く く く く く く ヱ 付 く ヱく く く く く電源 付 く く く く く ヱ 付 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 222 ー 適用 第三者 オー ー ー 使用 を伴い す 注意く い オー ー す 不安定 コン ー ン や 破損す あ す 自分 責任 行 く い 弊社 オー ー よ 破損 責任 負い す 了 く い Fatal1ty 990FX Professional Series Motherboard...
  • Seite 223 ー ー ー 電 ー く く コ い コン ー 性能 犠牲 く く 多 出力 相 削減 効率性 向 図 く く く く 組 込 く く く い ー 便利 更新 ー Fatal1ty 990FX Professional Series Motherboard...
  • Seite 224 ー ー ー 検出 自動的 くく く く ン ー 行う前 ー ー 冷く く く く ン 機能 い 確認 電源コー 外 再く く く く 度 い い 放熱効果 高 滌 ン ーく く く Fatal1ty 990FX Professional Series Motherboard...
  • Seite 225 く く く 提案 従い 対応電源装置 規格 満 必要 あ く く く ン 電力効率 く 消費電流 % 以 く く く く 対応電源装置 選択 場合 電源装置製 元 詳細 確認 く く く う 勧 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 226 ー 静電 置 く く く く 部品 入 い 袋 入 い くくく く ー ー ー 固定 穴 付く く く く 締 い い ー ー 損傷く く く く 恐 あ Fatal1ty 990FX Professional Series Motherboard...
  • Seite 227 くくー ー 必要 あ ー ン 固定 互い くく密着 い 確認 い ン ンコ くく ー く 参照 ー く 参照 接 くくい ン ー 方法 い ン ー ン 扱 明書 参照 くく い Fatal1ty 990FX Professional Series Motherboard...
  • Seite 228 ー 始動出来 く く ー 付 く く く く 付 ー ー 損傷 く く く く 原因 く く ー ー く ー 採 く く 用 場合 付 う く く 勧 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 229 外側 押 外 く 目 置 対応 う 合わ notch break notch break い向 装着 う い 間 向 装着 ー ー や 重大 損傷 あ く 後 挿入 両端 固定 所定 置 戻 装着 い Fatal1ty 990FX Professional Series Motherboard...
  • Seite 230 使用 外 い 後 使用 い い く ー コ 置 合わ ー 完全 固定 ー 押 込 い く 後 ー ー 固定 い く ー ー 固定 く く く ー 元 戻 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 231 く く く く く く く く く く く ー い く く 機能 く ® く く く ー 更 新 い く く く い 詳細 ー 付 手雽 従 い Fatal1ty 990FX Professional Series Motherboard...
  • Seite 232 ー 端 ー ー く く く ー ー ン ー く く コ 接 ー ー く ー ー い ン く 端 ー ーや携帯電話 く ン ン ー く ー ー 接 く Fatal1ty 990FX Professional Series Motherboard...
  • Seite 233 く く USB PWR く ンく ー く 参照 く く あ くく く ー 基 加え ー く ンく く ー く 搭載 ー く 参照 く い く く く ー く ー Fatal1ty 990FX Professional Series Motherboard...
  • Seite 234 ” “ ” く く く ー 選択 後 “ ン く ” く く く く く く ® く く く く く く く く く く く く く く 場合 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 235 前面く く く く ー 接 陳 ワ ン 割 当 く く く 対応 い 確認 い ー ー ー ー ー ー く SPEAKER く 接 い ンく DUMMY +5V DUMMY ー く 参照 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 236 ンコ 接 う い 場合 くく く く ン 接 い 接 ン ン ン ン ー く ンく +12V CPU_FAN_SPEED ー く 参照 く ワーコ く 電源コ 接 く ンく  く ー く 参照く Fatal1ty 990FX Professional Series Motherboard...
  • Seite 237 く く く く く く ー く 参照 く く く ンく 音声出力 く く く ー 提 ー く 参照くく 供 く く く く 接 う く ー く コ 接 い Fatal1ty 990FX Professional Series Motherboard...
  • Seite 238 _ _ や 差 込 使用準備 完了 背面 く 付 手雽 手雽く 手雽 手雽く 前面 く 本 く ー 背面 く 組 立 手雽 手雽く 手雽 手雽く 背面 く 本 付 背面 く 筐体 付 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 239 コー 情報 提供 使用 ー ン 容易 い コー 場合 ~ ー 図 参照 い くく ン ー ン ー ー 挿入 い 互換 自動検出 ー ー 一覧表示 雽番 必須 ン ー い ン ー 常 作動 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 240 ® 機能 搭載 い く く く く く く く く く く く ン ー 場合 次 従 い く 機能 搭載 い く 使用 く く く ー 詳細画面 構成 入 く Fatal1ty 990FX Professional Series Motherboard...
  • Seite 241 ン ー ー ー 付属 い ー ー ー 特徴 有効 必要 や ー 含 い ー 使用 挿入 い 機能 有効 場合 自 動的 ン 立 機能 無効 場合 ー 内 あ ン 立 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 242 一個 部 USB 3、0 面板 一個華 SLI_Bridge_2S 橋接卡 ASR順ck提醒您 ASR順ck提醒您 、、、 ® 為了在 Wi項d順ws 緩 。 緩 編4 bit 。 Vista 。 Vista 編4 bit 系統中 得 更好的性能,建議您在BIOS中 St順rage C順項figurati順項 儲配置 選 設 AHCI模式 關于BIOS設置程序,請參見支持光 中的 User Ma項ual 了解相詳細信息 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 243   支持 TH: TruStudi順 板載 LAN 功能   PCIE x1 )igabit LAN 10。100。1000 Mb。s   Br順adc順m BCM「緩緩81   支持网路喚醒 Wake O項 LAN   支持 E項erg發 Efficie項t Ether項et 802、3a白   支持雙 LAN 整合功能   支持 P:E Rear Pa項el I。O I。O 界面 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 244   1 個帶 LED 的電源開關   1 個帶 LED 的復位開關 BIOS   32Mb AMI UE(I Legal BIOS技 支持 )UI   支持即插即用 Plug a項d Pla發技P項P   ACPI 1、1 電源管理   支持喚醒功能   支持 jumperfree 免跳線模式   支持 SMBIOS 2、3、1 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 245   支持 ErP。EuP己 需要同時使用支持 ErP。EuP 的電源供應 器 已 見警告 1「 找 請參閱華 網站了解詳細的產品信息 : http:。。www、asr順ck、c順m 警告 請了解超頻具有不可避免的風險 技 這些超頻包括調節 BIOS 設置 運用異歟超 頻 術或使用第三方超頻工具 超頻可能會影響您的系統穩定性 技 甚 會 系統組件和設備的損壞 這種風險和代價須由您自己 擔 技 我們 超頻可 能 的損壞不 擔責任 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 246 電最多可比 往快 40低 華 APP Charger 允許您同時為多部蘋果設備快速 電 技 甚 可 在電腦進 入待機 己 S1已 掛起 己 S3已 休 己 S4已 或關機 己 S「已 模式 持續為設 備 電 只需安裝了 APP Charger 驅動程序 技 您立刻就能擁有非凡的 電 體驗 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 247 為滿足 E uP 標準 技 您需要同時具備支持 Eu P 的主 ® 板和支持 EuP 的電源供應器 據 I項tel 的建議 技 支持 EuP 的電源供應器 必須滿足在 100m A 電流消耗時 技「V s b 電源效率高于 「0低 有關支持 E u P 的 電源供應器選擇方面的更多細節 技 我們建議您諮詢電源供應器的製作商 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 248 安裝主板時,注意 安 防范: 在您安裝或者拆卸任何組件之前 技 確保 關閉電源或者 拔掉電源 線 錯誤的做法可能會 主板 外圍設備或組件嚴重 損 設備要有良好的接地線,避免靜電損害,進行安裝前,請 斷 開電源,否則會損壞主板 為了避免主板 的組件 到靜電損害,絕不要把主板徑直放到 地毯等類似的地方,也要記 在接觸主板前使用一個靜電手腕 帶或接触金屬 轳過邊緣拿 整塊主板安裝, 毋接觸芯 在證明放掉靜電 ,方可進行安裝 「 當把螺 釘放入螺 孔用來 主板固定到機箱 時,請不要過 度擰緊螺 !這樣做很可能會損壞主板 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 249 需要在 CPU 和散熱 之 塗抹散熱硅脂改進散熱效果 確保 CPU 和散熱彼 歞接觸穩固良好 接著 CPU 風扇連接到 CPU (AN 接口 己CPU_(AN1技 參看 第 4 頁 N順、 4 或 CPU_(AN2技 參看第 4 頁 N順、 「已 為了歝確安裝 技 請仔細 查閱 CPU 風扇和散熱器的使用說明 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 250 ,例如 一 模組安裝在了 DDR3_A1 和 DDR3_A2,這 不能激活雙轳辘 術 , 「、 不允許 DDR 或 DDR2 條插入 DDR3 插槽 否則主板和 DIMM 有可 能損壞 編、 如果您在這款主板 使用 D D R3 2100 條 技 薦 條安裝到 DDR3_A2 和 DDR3_B2 插槽 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 251 每個 DIMM 插槽的 口 DIMM 部 應,使 口 部 吻合, 即能歝确安裝 notch break notch break DIMM 只能 歝確的方向安裝 如果你 錯誤的方向強行 DIMM 插入插槽 技 那 會 主板和 DIMM 的永久性損壞 DIMM 穩地插入插槽直 端卡子迅速而 地歧位 DIMM 完 就位 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 252 扇並 它連接到主板的機箱風扇接口 己CHA_(AN1技 CHA_(AN2 或 CHA_ (AN3已 安裝歟驟: 歟驟 1 在安裝擴展卡之前,請確認 經關閉電源或拔掉電源線 在你安裝之前 技 請閱讀擴展卡的說明並完 必需的硬件設置 歟驟 2 移動机箱 板, 便使用擴展槽 歟驟 3 選擇一個擴展槽安裝擴展卡,裝進机箱并用螺 固定 歟驟 4 确定接触歝确,沒有單邊翹起的現象 歟驟 「 用螺 把擴展卡固定在机箱 歟驟 編 蓋 机箱 板 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 253 使任何 3D 應用軟件的畫質和性能盡可能辙到最高的水準 目前 技 C r 順 s s ( i r e : 支 ® 持 Wi項d順ws :P己Service Pack 2已 。 Vista 。 緩 作系統,3 Wa發 Cr順ss(ire: 和 Quad Cr順ss(ire: 僅支持 Wi項d順ws ® Vista 。 緩 作系統 請檢查 AMD 網站了解 Cr順ss(ire: 驅動程序更新情況 請參閱第 22 頁了解詳細的安裝歟驟 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 254 主板的永久性損壞! Serial ATA 己SATA已 SATA 數據線的任意一端均可連 數據線 接 SATA。SATAII。SATA3 硬 或者 主板 的 SATAII。SATA3 接口 己 選配 已 3、「mm 音頻線 3、「mm 音頻線的任一端可 連接 到便攜式音頻設備 如 MP3 播放 己 選配 已 机和移動電 或 PC 的線路輸 入端口 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 255 已 USB 3、0 擴展接頭 除了位於 I。O 面板的 個默 認 USB 3、0 接口之外,這款 己19 針 USB3_1_2已 主板有 組 USB 3、0 接針 己 見第 4 頁第 12 已 每組 USB 3、0 接針可 支持 個 USB 3、0 接口 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 256 :P 。 :P 編4 位元 作系統中 : 選擇 Mixer 選擇 Rec順rder 接著點 (r順項tMic 在 Wi項d順ws ® 緩 。 緩 編4 位元 。 Vista 。 Vista 編4 位元 作系 統中 : 在 Realtek 控制面板中點 (r順項tMic 調節 Rec順rdi項g V順lume Fatal1ty 990FX Professional Series Motherboard...
  • Seite 257 機箱 技 電源風扇接頭 請 風扇連接線接到這個 接頭,並讓黑線與接地的針腳 己4 針 CHA_(AN1已 +12V 相接 CHA_(AN1。2。3 風扇速度 己 見第 4 頁第 20 已 CHA_FAN_SPEED FAN_SPEED_CONTROL 可轳過 UE(I 或 A:TU 來控制 己3 針 CHA_(AN2已 +12V CHA_FAN_SPEED 己 見第 4 頁第 編 已 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 258 傳統的 20 pi項 AT: 電源 為了使用 20 pi項 AT: 電源 技 請 著 Pi項 1 和 Pi項 13 插 電源接頭 20 Pi項 AT: 電源安裝說明 AT: 12V 接頭 請 一個 AT: 12V 電源供應 器接到這個接頭 己8 針 AT:12V1已 己 見第 4 頁第 2 已 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 259 2、「 HDD。SSD 歟驟 歟驟 1 歟驟 歟驟 2 准備好隨附的前部 USB 3、0 面板 四個 HDD 裝到前部 USB 3、0 面板 螺 個机箱螺 歟驟 歟驟 3 用 個機箱螺 前部USB 歟驟 歟驟 4 前部USB 3、0面板裝入机箱的2、「 驅動器托 3、0面板裝入驅動器托槽并擰 槽 螺 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 260 己PWRBTN已 己 見第 4 頁第 22 已 復位開關 復位開關是一種快速開關 技 可 讓用戶快復位系統 己RSTBTN已 己 見第 4 頁第 21 已 CMOS 數據清除開關 CMOS 數據清除開關是一種快 速開關 技 可讓用戶快速清除 己CLRCBTN已 CMOS 中的數據 己 見第 「 頁第 20 已 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 261 SATA M順de 己SATA 模式 已 設置為 [IDE] 己 用于 SATA3_1 到 SATA3_編 接口 已 Marvell SATA3 Operati順項 M順de 己Marvell SATA3 作模式 已 設置為 [IDE] 己 用于 eSATA3 接口 已 歟驟 2: 在系統 安裝 Wi項d順ws ® :P 。 :P 編4 位元 作系統 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 262 SATA M順de 己SATA 模式 已 設置為 [AHCI] 己 用于 SATA3_1 到 SATA3_編 接口 已 Marvell SATA3 Operati順項 M順de 己Marvell SATA3 作模式 已 設置為 [AHCI] 己 用于 eSATA3 接口 已 歟驟 2: 在系統 安裝 Wi項d順ws ® 緩 。 緩 編4 位元 。 Vista 。 Vista 編4 位元 作系統 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 263 ® ® 本主板支持各種微軟視窗 作系統:Micr順s順ft Wi項d順ws 緩。緩 編4 位元 。Vista 。 Vista 編4 位元 。:P。:P 編4 位元 主板隨機支持光 包含各種有助于提高主板效能的 必要驅動和實用程序 請 隨機支持光 放入光驅裡,如果電腦的 自動運行 功能 啟用,屏幕 會自動顯示主菜單 如果主菜單不能自動顯示,請查 支持光 BIN 文件夾 的 ASSETUP、E:E ,并雙 它,即可調 主菜單 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 264 鉻 己Cr己VI已已 多溴聯苯 己PBB已 多溴二苯醚 己PBDE已 印 電路板 電子組件 外部信號連 接頭 線材 O: 表示 有毒有害物質在 部件所有均質材料中的含量均在 SJ。T 113編3 200編 標準規定 的限量要求 X: 表示 有毒有害物質 少在 部件的某一均質材料中的含量超 SJ。T 113編3 200編 標準 規定的限量要求,然 部件仍符合歐盟指 2002。9「。EC 的規範 備註 : 歞產品所標示之環保使用 限,系指在一般歝常使用狀況 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 265 1. 主機板簡介 謝謝你採用了 Fatal1ty 990FX Professional Series 主機板 , 本主機板由華擎嚴格 製造 , 品質可靠 , 穩定性好 , 能夠獲得卓越的性能 此快速安裝指南包括了主機板介 紹和分步驟安裝指導 您可以查看支持光碟裡的使用手冊了解更詳細的資料 由於主機板規格和 BIOS 軟體將不斷更新 , 本手冊之相關內容變更恕不另 行通知 請留意華擎網站上公布的更新版本 你也可以在華擎網站找到最 新的顯示卡和 CPU 支援列表 華擎網址:http://www.asrock.com 如果您需要與此主機板有關的技術支援 , 請參觀我們的網站以了解您使用 機種的規格訊息 www.asrock.com/support/index.asp 1.1 包裝盒內物品 Fatal1ty 990FX Professional Series 主機板...
  • Seite 266 - 支援 THX TruStudio 網路功能 - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Broadcom BCM57781 - 支援網路喚醒 Wake-On-LAN - 支援 Energy Efficient Ethernet 802.3az 具備網路彙整 」Teaming) 功能 支援雙網路 」Dual LAN) - 支援預先開機執行環境 PXE Rear Panel I/O I/O 界面 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 267 - 1 個同軸 SPDIF 輸 接口 - 1 個光纖 SPDIF 輸 接口 - 5 個可直接使用的 USB 2.0 接口 - 1 個 Fatal1ty 滑鼠接口 」USB 2.0) - 2 個可直接使用的 USB 3.0 接口 - 2 個 eSATA3 接口 - 2 個 RJ-45 區域網接口與 LED 指示燈 」ACT/LINK LED 和...
  • Seite 268 認證 - FCC, CE, WHQL - 支援 ErP/EuP」 需要同時使用支援 ErP/EuP 的電源供應 器 ) 見警告 15 * 請參閱華擎網站了解詳細的產品訊息 : http://www.asrock.com 警告 請了解超頻具有不可避免的風險 , 這些超頻包括調節 BIOS 設置 運用非同步 超頻技術或使用第三方超頻工具 超頻可能會影響您的系統穩定性 , 甚至會 導致系統組件和設備的損壞 這種風險和代價須由您自己承擔 , 我們對超頻 可能導致的損壞不承擔責任 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 269 充電 , 華擎為您提供了一個絕妙的解決方案 - 華擎 APP Charger 只需安 裝 APP Charger 驅動程式 , 用電腦為 iPhone 充電最多可比以往快 40% 華 擎 APP Charger 讓您可以同時為多部蘋果設備快速充電 , 甚至可以在電腦 進入待命 」S1) 待命 」S3) 休眠 」S4) 或關機 」S5) 模式下持續為設備充電 只需安裝了 APP Charger 驅動程式 , 您立刻就能擁有非凡的充電體驗 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 270 電量的規定 根據 EuP 的規定 , 一個完整系統在關機模式下的交流電總消耗 必須在 1.00W 以下 為符合 EuP 標準 , 您需要同時具備支援 EuP 的主機板和 ® 支援 EuP 的電源供應器 根據 Intel 的建議 , 支援 EuP 的電源供應器必須 符合在 100mA 電流消耗時 ,5Vsb 電源效率高於 50% 有關支援 EuP 的電源供 應器選擇方面的詳情 , 我們建議您諮詢電源供應器的製造商 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 271 這是一款 ATX 規格的主機板 」12.0 英吋 X 9.6 英吋 , 30.5 厘米 X 24.4 厘米 ) 在安裝主機板之前 , 請先了解您的機箱配置以確保主板的正確安裝 安全防範 安裝主機板時,請注意以下安全防範: 在您安裝或者拆卸任何組件之前 , 請確保 關閉電源或者 拔掉電源 線 錯誤的做法可能會導致主機板 外圍設備或組件嚴重受損 設備要有良好的接地線,避免靜電損害,進行安裝前,請先斷 開電源,否則會損壞主機板 為了避免主機板上的組件受到靜電損害,絕不要把主機板徑直 放到地毯等類似的地方,也要記住在接觸主機板前使用一個靜 電手腕帶或接觸金屬 透過邊緣拿住整塊主機板安裝,切勿接觸晶片 在證明放掉靜電後,方可進行安裝 當把螺絲釘放入螺絲孔用來將主機板固定到機箱上時,請不要 過度擰緊螺絲!這樣做很可能會損壞主機板 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 272 在主機板上安裝 CPU 之後 , 必須安裝大尺寸散熱片和散熱風扇 同時 , 您 還需要在 CPU 和散熱片之間塗抹散熱膏增加散熱效果 確保 CPU 和散熱片 彼此接觸穩固良好 接著將 CPU 風扇連接到 CPU FAN 接口 」CPU_FAN1, 參看 第 4 頁 No. 4 或 CPU_FAN2, 參看第 4 頁 No. 5) 為了正確安裝 , 請仔細 查閱 CPU 風扇和散熱器的使用說明 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 273 3. 如果僅僅在這款主機板的 D D R3 記憶體插槽上安裝單條記憶體或者三 條記憶體,這將無法啟動雙通道記憶體技術 4. 如果一對記憶體並未安裝在相同的“雙通道"上,例如將一對記憶體 安裝在 DDR3_A1 和 DDR3_A2,這將不能開啟雙通道記憶體技術 , 5. 請勿將 DDR 或 DDR2 記憶體插入 DDR3 插槽 否則主機板和 DIMM 有可 能損壞 6. 如果您在這款主機板上使用 DDR3 2100 記憶體 , 建議將記憶體安裝到 DDR3_A2 和 DDR3_B2 插槽 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 274 安裝步驟: 請確保在增加或移除記憶體或系統組件之前切斷電源適配器 記憶體插槽兩端的起拔器向外扳開 將每個記憶體插槽的 口与記憶體上凸 部分對應,使 口与凸 部 分吻合,記憶體即能正確安裝 notch break notch break 您的記憶體只能以正確的方向安裝 如果以錯誤的方向強行將記憶體插 入插槽 , 那將會導致主機板和記憶體的永久性損壞   將記憶體平穩地插入插槽直至兩端卡子迅速而完全地歸位以及記憶體完 全就位 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 275 頻寬運行 , 而 PCIE5 插槽以 x4 頻寬運行 4. 當您使用多顯卡時 , 為了提供更好的散熱環境 , 請安裝機箱風扇 並將它連接到主機板的機箱風扇接口 」CHA_FAN1,CHA_FAN2 或 CHA_ FAN3) 安裝步驟: 步驟 1 在安裝擴充卡之前,請確認 經關閉電源或拔掉電源線 在您安裝之前 , 請閱讀擴充卡的說明並完成必需的硬體設置 步驟 2 移動機箱擋板,以便使用擴充槽 步驟 3 選擇一個擴充槽安裝擴充卡,裝進機箱並用螺絲固定 步驟 4 確定接觸正確,沒有單邊翹起的現象 步驟 5 將擴充卡以螺絲固定在機箱上 步驟 6 蓋上機箱擋板 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 276 器 」GPU) 透過智能軟體設計和創新的互連裝置整合不同的運行模式,CrossFireX 使任何 3D 應用軟體的畫質和性能盡可能達到最高的水準 目前,CrossFireX 支援 Windows ® XP」Service Pack 2) / Vista / 7 操作系統,3-Way CrossFireX 和僅支 ® 援 Windows Vista / 7 操作系統 請參閱 AMD 網站了解 AMD CrossFireX 驅動程 式更新情況 請參閱第 22 頁了解詳細的安裝步驟 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 277 線帽使 CLRCMOS1 的 pin2 及 pin3 短路 5 秒的時間 但請勿於更新 BIOS 後立即清除 CMOS 如需於更新 BIOS 後立即清除 CMOS,您必須先開機再關機,然後再執行 CMOS 清除操作 請注意,只有在移除 C M O S 電池的情況下,密碼 日期 時間 使用者 預設設定檔 1394 GUID 及 MAC 位址才會清除 Clear CMOS開關的功能與Clear CMOS跳線相同 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 278 USB 2.0 接口之外,這款 」9 針 USB6_7) DUMMY 主機板有兩組 USB 2.0 接 」 見第 4 頁第 26 針 每組 USB 2.0 接針可以 支援兩個 USB 2.0 接口 USB PWR 」9 針 USB8_9) 」 見第 4 頁第 25 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 279 們提供的手冊和機箱手冊上的使用說明安裝您的系統 2. 如果您使用 AC'97 音效面板 , 請按照下面的步驟將它安裝到前面板音效接針 : A. 將 Mic_IN」MIC) 連接到 MIC2_L B. 將 Audio_R」RIN) 連接到 OUT2_R, 將 Audio_L」LIN) 連接到 OUT2_L C. 將 Ground」GND) 連接到 Ground」GND) D. MIC_RET 和 OUT_RET 僅用於 HD 音效面板 您不必將它們連接到 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 280 」 見第 4 頁第 16 電源指示燈接頭 請將機箱電源指示燈連接到 此接頭,以指示系統電源狀 」3 針 PLED1) 態 當系統正在運行時, 」 見第 4 頁第 29 LED 指示燈亮 在 S1 模式 下,LED 指示燈會不停閃 爍 在 S3/S4 或 S5 模式 」 關 機 ) 下,LED 指示燈會熄滅 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 281 個接頭 」24 針 ATXPWR1) 」 見第 4 頁第 11 雖然此主機板提供 24-pin ATX 電源接口 , 但是您仍然可以使 用傳統的 20-pin ATX 電源 為了使用 20-pin ATX 電源 , 請 著 Pin 1 和 Pin 13 插上電源接頭 20-Pin ATX 電源安裝說明 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 282 音 效 輸 至 H D M I 顯 示 卡, 支 」2 針 HDMI_SPDIF1) 援將電腦連接至帶 HDMI 的數 」 見第 4 頁第 1 位電視 / 投影機 / 液晶銀幕等 設備 請將 HDMI 顯示卡的 HDMI_SPDIF 接口連接到這個 接頭 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 283 步驟 5 步驟 步驟 6 前USB 3.0面板隨即可供使用 將前USB 3.0纜線插入主機板上的USB 3.0座 」USB3_1_2或USB3_3_4) 後USB 3.0托架安裝指南 步驟 步驟 1 步驟 步驟 2 鬆開前USB 3.0面板上的兩顆螺絲 將USB 3.0纜線和後USB 3.0托 架放在一起 步驟 步驟 3 步驟 步驟 4 將兩顆螺絲鎖回後USB 3.0托架 將後USB 3.0托架放入底座中 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 284 讓用戶快速開啟 / 關閉系統 」PWRBTN) 」 見第 4 頁第 22 重置開關 重置開關是一種快速開關 , 可 讓用戶快重置系統 」RSTBTN) 」 見第 4 頁第 21 CMOS 數據清除開關 CMOS 數據清除開關是一種快 速開關 , 可讓用戶快速清除 」CLRCBTN) CMOS 中的數據 」 見第 5 頁第 20 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 285 B. 將"SATA Mode"」SATA 模式 ) 設置為 [IDE] 」 用於 SATA3_1 到 SATA3_6 接頭 ) 將"Marvell SATA3 Operation Mode"」Marvell SATA3 操作模式 ) 設置為 [IDE] 」 用於 eSATA3 接頭 ) ® 步驟 2: 在系統上安裝 Windows XP / XP 64 位元操作系統 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 286 B. 將"SATA Mode"」SATA 模式 ) 設置為 [AHCI] 」 用於 SATA3_1 到 SATA3_6 接頭 ) 將"Marvell SATA3 Operation Mode"」Marvell SATA3 操作模式 ) 設置為 [AHCI] 」 用於 eSATA3 接頭 ) ® 步驟 2: 在系統上安裝 Windows 7 / 7 64 位元 / Vista / Vista 64 位元操作系統 Fatal1ty 990FX Professional Series Motherboard...
  • Seite 287 (“xxx” is the device which contains your Windows installation fi les. Normally it is an optical drive.) You can also press <F11> to launch boot menu at system POST and choose the item “UEFI:xxx“ to boot. ® 4. Start Windows installation. Fatal1ty 990FX Professional Series Motherboard...

Inhaltsverzeichnis
