Hardware installation
1.
Turn off the PC and any other connected peripheral devices.
2.
Unplug the power cable from the back of the PC and remove the cover of your PC.
3.
Remove the panel from the available 5.25" bay.
4.
Insert the mobile rack into the bay and fix it with 2 screws on each side.
5.
Connect the mobile rack to the SATA port on the motherboard with the included SATA data
cables.
6.
Then connect 15 Pin SATA Power port of motherboard to SATA power port at the back of the
mobile rack.
7.
Replace the PC cover and reconnect the power cable for the PC.
8.
Turn on power switch of the mobile rack.

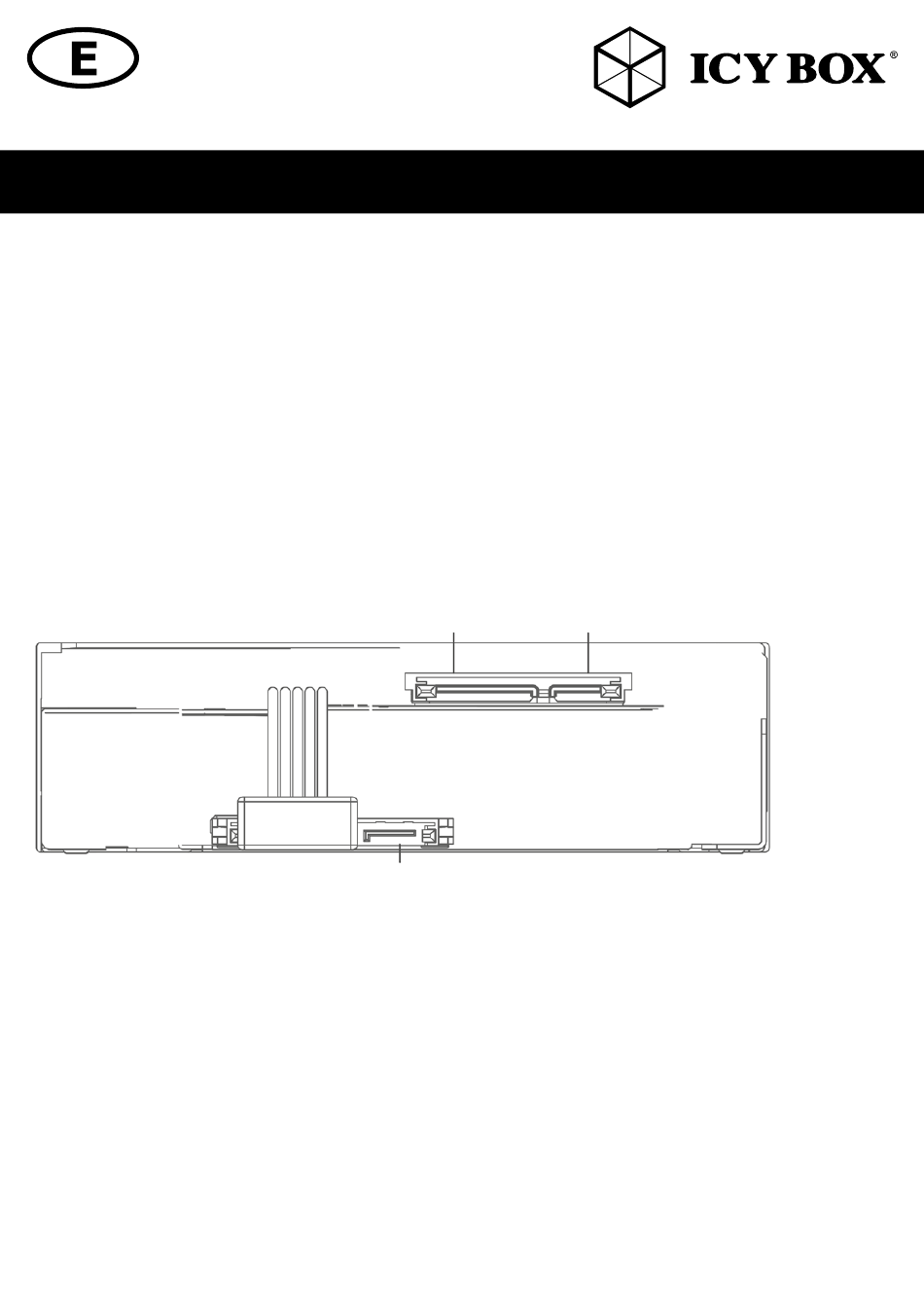

Back View:
HDD Installation
1.
If the door is locked, use the key to unlock. Squeeze the door to release the door handle, then
pull the door handle open.
2.
Insert the HDD into the HDD enclosure gently and close the door. Lock the door if needed.
Manual / Handbuch IB-173SSK
SATA power port (15p)
SATA data port for 3.5
SATA data port for 2.5
" HDD
" HDD
