LD Systems STINGER G3 WMB Anleitung

STINGER G3 WMB
WALL BRACKET FOR STINGER® G3 12" AND 15" MODELS
SAFETY INFORMATION
1. Please read these instructions carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.
5. Use the equipment only in the intended manner and for the intended purpose.
6. During installation, observe the applicable safety regulations for your country.
7. Never place sources of ignition, e.g., burning candles, on the equipment.
8. Do not use this equipment in the immediate vicinity of water (does not apply to special outdoor equipment
- in this case, observe the special instructions noted below. Do not expose this equipment to flammable
materials, fluids or gases.
9. Make certain that dripping or splashed water cannot enter the equipment. Do not place containers filled with
liquids, such as vases or drinking vessels, on the equipment.
10. Make certain that objects cannot fall into the device.
11. Use this equipment only with the accessories recommended and intended by the manufacturer.
12. Do not open or modify this equipment.
13. After connecting the equipment, check all cables in order to prevent damage or accidents, e.g., due to tripping
hazards.
14. During transport, make certain that the equipment cannot fall down and possibly cause property damage and
personal injuries.
15. If your equipment is no longer functioning properly, if fluids or objects have gotten inside the equipment or if
it has been damaged in another way, switch it off immediately and unplug it from the mains outlet (if it is a
powered device). This equipment may only be repaired by authorized, qualified personnel.
16. Clean the equipment using a dry cloth.
17. Comply with all applicable disposal laws in your country. During disposal of packaging, please separate plastic
and paper/cardboard.
18. Plastic bags must be kept out of reach of children.
MANUFACTURER'S WARRANTY & LIMITATION OF LIABILITY
You can find our current warranty conditions and limitation of liability at:
https://cdn-shop.adamhall.com/media/pdf/MANUFACTURERS-DECLARATIONS_LD_SYSTEMS.pdf
To request warranty service for a product, please contact Adam Hall GmbH, Adam-Hall-Str. 1,
61267 Neu Anspach / Email Info@adamhall.com / 49 (0) 6081 / 9419-0
PROPER DISPOSAL OF THIS PRODUCT
(WASTE ELECTRICAL AND ELECTRONIC EQUIPMENT)
(Valid in the European Union and other European countries with waste separation)
This symbol on the product, or the documents accompanying the product, indicates that this appliance may not be
treated as household waste. This is to avoid environmental damage or personal injury due to uncontrolled waste
disposal. Please dispose of this product separately from other waste and have it recycled to promote sustainable
economic activity.
Household users should contact either the retailer where they purchased this product, or their local government office,
for details on where and how they can recycle this item in an environmentally friendly manner.
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product
should not be mixed with other commercial wastes for disposal
A
F
A
D
F
F
B
B
LD Systems is a registered brand of the Adam Hall Group
®
Adam Hall GmbH | Adam-Hall-Str. 1 | 61267 Neu-Anspach | Germany
Phone: +49 6081 9419-0 | adamhall.com
LDEBG3WMB (SUITABLE FOR LDEB122G3, LDEB122AG3, LDEB152G3, LDEB152AG3)

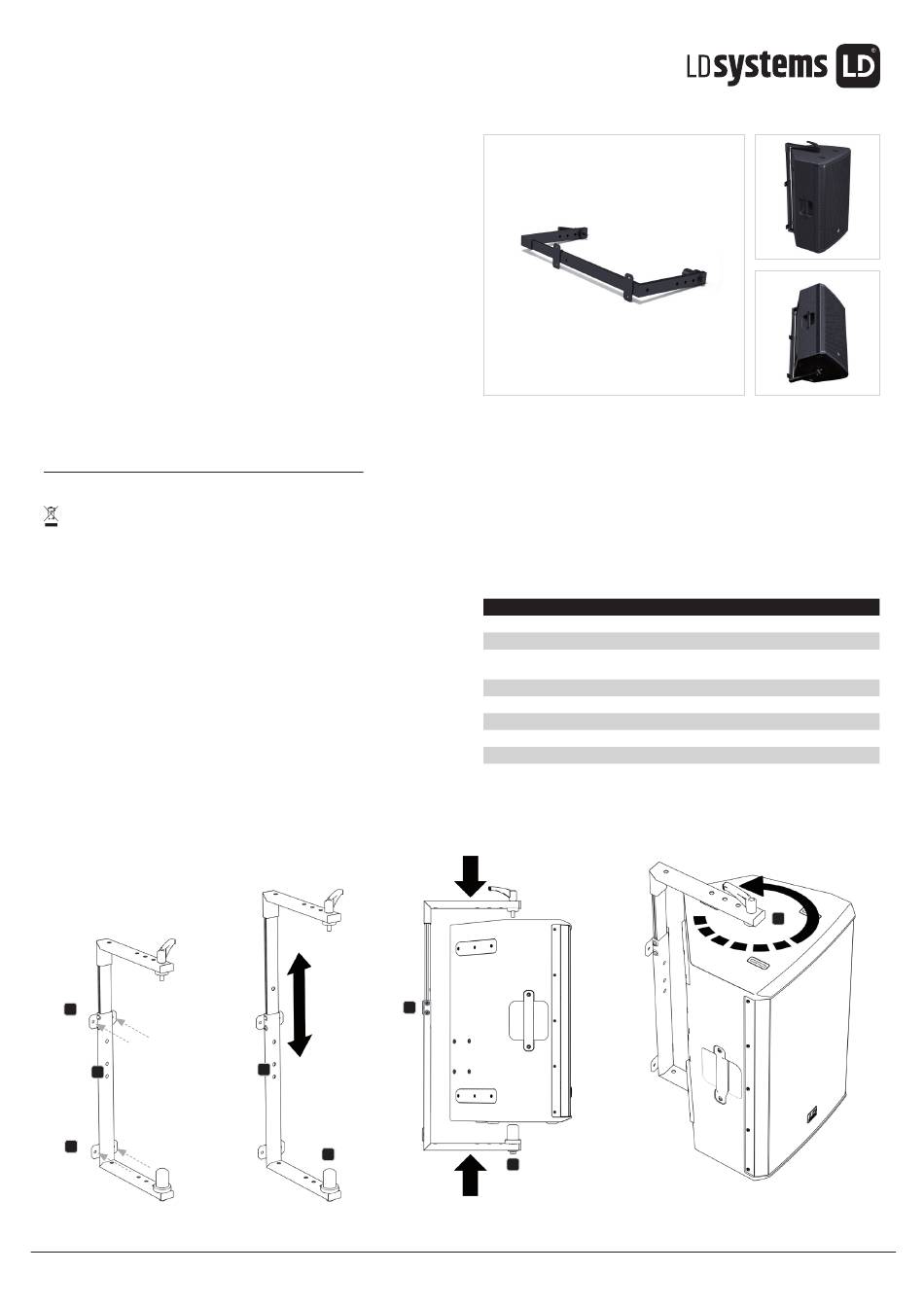

Screw the adjustable U-bracket (in a suitable position) to a load-bearing wall (A). Use suitable screws
and plugs etc. to ensure secure mounting. The 35mm mounting stud can be installed on the bracket
at four different distances from the wall. Select the appropriate position for the speaker and screw
it tightly to the bracket (B, position the supplied rubber ring on the mounting stud). Remove the M10
screw on the top of the loudspeaker and lift the speaker into the bracket so that the 35mm mounting
stud sits in the 0° flange of the speaker (C).
Now set the adjustable side of the bracket to the appropriate size for the speaker and secure it with
the two screws on the side of the bracket (D). Using the supplied M10 T-screw in the correct position
directly opposite the mounting stud, position the speaker at the desired angle in the bracket (E, place
supplied rubber washer between bracket and speaker. For permanent installation an M10 Allen screw
is supplied). For traverse-installation, mounting holes for traverse clamps are situated at positions
corresponding to speaker size (F).
SPECIFICATIONS
Model name: LDEBG3WMB
Product type PA Loudspeakers Accessories
Type Wall Mount Bracket
Suitable for: LDEB122G3, LDEB122AG3
LDEB152G3, LDEB152AG3
Material Steel
Surface Powder coated
Color Black
Max. load 28 kg
Dimensions (W x H x D): 550 x 90 x 308 mm
Weight 3.5 kg
C
C
E
