A 112A | A 115A | A 118A
2 Installation

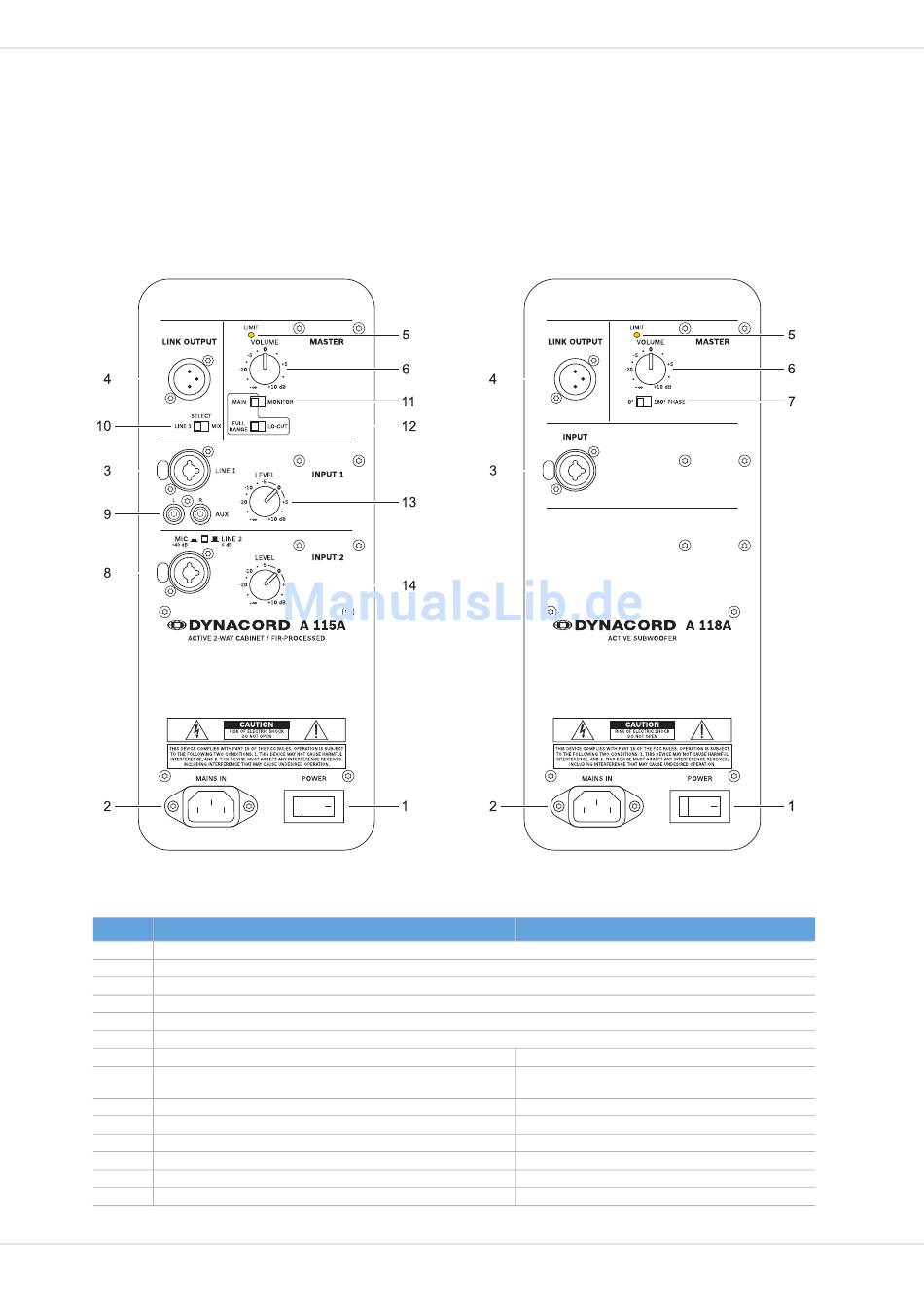

2.1 Controls, Indicators and Connections

Number
1
2
3
4
5
6
7
8 Input connector for audio signal (INPUT 2) with sensitivity selection switch
9 AUX connector for audio signal (AUX L/R)
10 Signal source selection switch (SELECT)
11 Speaker mode selection switch (MAIN/MONITOR)
12 Selection switch for MAIN mode (FULL RANGE/LO-CUT)
13
14
6
A 112A or A 115A
Mains switch (POWER)
Mains connector (MAINS IN)
Input connector for audio signal (A 112A or A 115A: LINE 1, A 118A: INPUT)
Output connector forl audio signal (LINK OUTPUT)
Limit indicator (LIMIT)
Volume level control (VOLUME)
-
(MIC/LINE 2)
INPUT 1 level control (LEVEL)
INPUT 2 level control (LEVEL)
A 118A
Polarity switch (0°/180° PHASE)
-
-
-
-
-
-
-
