Features:
.
High-Power Light-Weight Fullrange
Cabinet, 16kg only
.
Polypropylene Enclosure
.
80° x 40° Constant-Q HF Horn
.
Neodymium ND 2 HF-Driver
.
Voice Coil Tracking Protection
Wir weisen ausdrücklich darauf hin, dass bei
gehängten Lautsprecherboxen die einschlägigen
Sicherheitsbestimmungen zu beachten sind. Es
muss unbedingt qualifi zierte Fachberatung in
Anspruch genommen werden!
We expressly point out that the relevant safety
regulations must be observed for "fl ying"
loudspeaker systems. It is imperative that quali-
fi ed expert advice is sought.
Technische Informationen
Architects and engineers
specifi cations

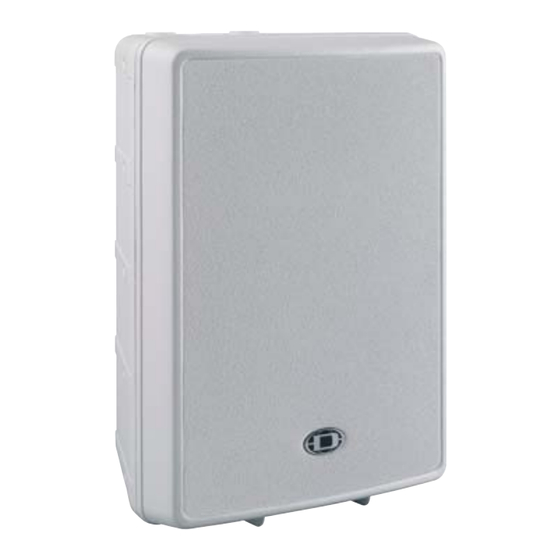

D12 / D12W
12", 300 Watt
2-Way Compact
Speaker System
Specifications
TYPE / NAME
Colour
Order No.
Cabinet
Configuration
Nominal impedance:
Power Handling:
Rated power RMS
Program power
Peak power
Sound pressure level:
SPL 2.83 V / 1m 1 W / 8 Ohm
Max. SPL 1m (calculated with
peak power)
Frequency range ( -10dB )
Nominal Coverage Angle
(Horizontal x Vertical)
Speaker components:
LF Transducer
HF Transducer
Voice Coil tracking protection
Connector model
Connector wiring
Dimensions (WxHxD)
Net weight
Shipping weight
Enclosure material
Grille Acoustic foam, powder coated steel
Handles
Warranty
Optional Accessories
SH-D12 Dust-Cover for D12
F212 Monitor feet for D12
1)
MB 112 Eybolt-Set M8 for D12
MB 212 U-Mounting Bracket
MB 312 Horizontal Cluster Plate
MB 200UMH U-Bracket
TMA Tilt angle for MB200 UMH
RMA Rotatable Mounting Kit
TC-02 Truss clamp
1) MB112 MUST ONLY BE USED TOGETHER WITH MB212
DUE TO SAFETY REASONS
D12 D12W
Black White
D113030 D113094
Full-Range
Passive 2-Way
8 Ohms
300 W
600 W
1200 W
98dB
129 dB
70 Hz - 18 kHz
80° x 40°
DL12BFH (358 288)
ND2S-8 (1" Exit) 364 562)
Yes
Speakon 2x NL4 MPR
4-pole
429.5mm x 586mm x 320.5mm
16.902" x 23.102" x 12.614"
16 kg (35.27 Ibs)
17 kg (37.47 Ibs)
Heavy Duty Polypropylene
1
36 Months
D113046
D113040
D113041
D113042 D113095
D113043 D113096
D170183
D112815
D112807
D112808
