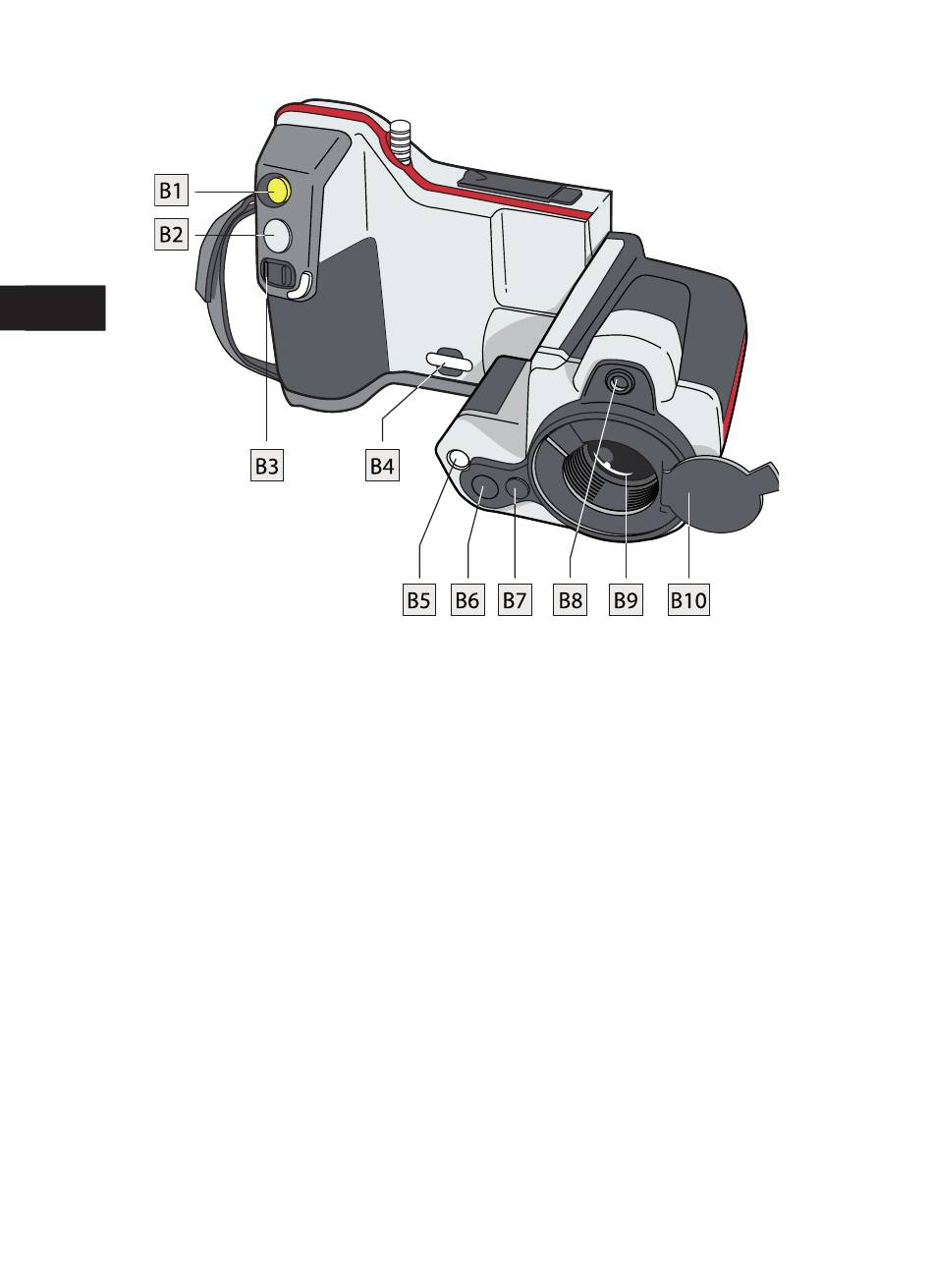

B1. Laser pointer button: Push
to activate the laser pointer.
B2. Preview/Save button: Push
briefl y to save an image. Push for
more than 1 second to preview an
image and link additional annota-
tions to the image.
B3. Focus button: Move left/
right to manually focus the
camera. Push to autofocus the
camera.
B4. Attachment point for the
neck strap.
B5. Video lamp.
B6. Digital camera lens.
B7. Release button for additional
infrared lenses.
B8. Laser pointer.
B9. Infrared lens.
B10. Lens cap for the infrared
lens.
Note: See the reference manual on the
CD-ROM for full descriptions.
