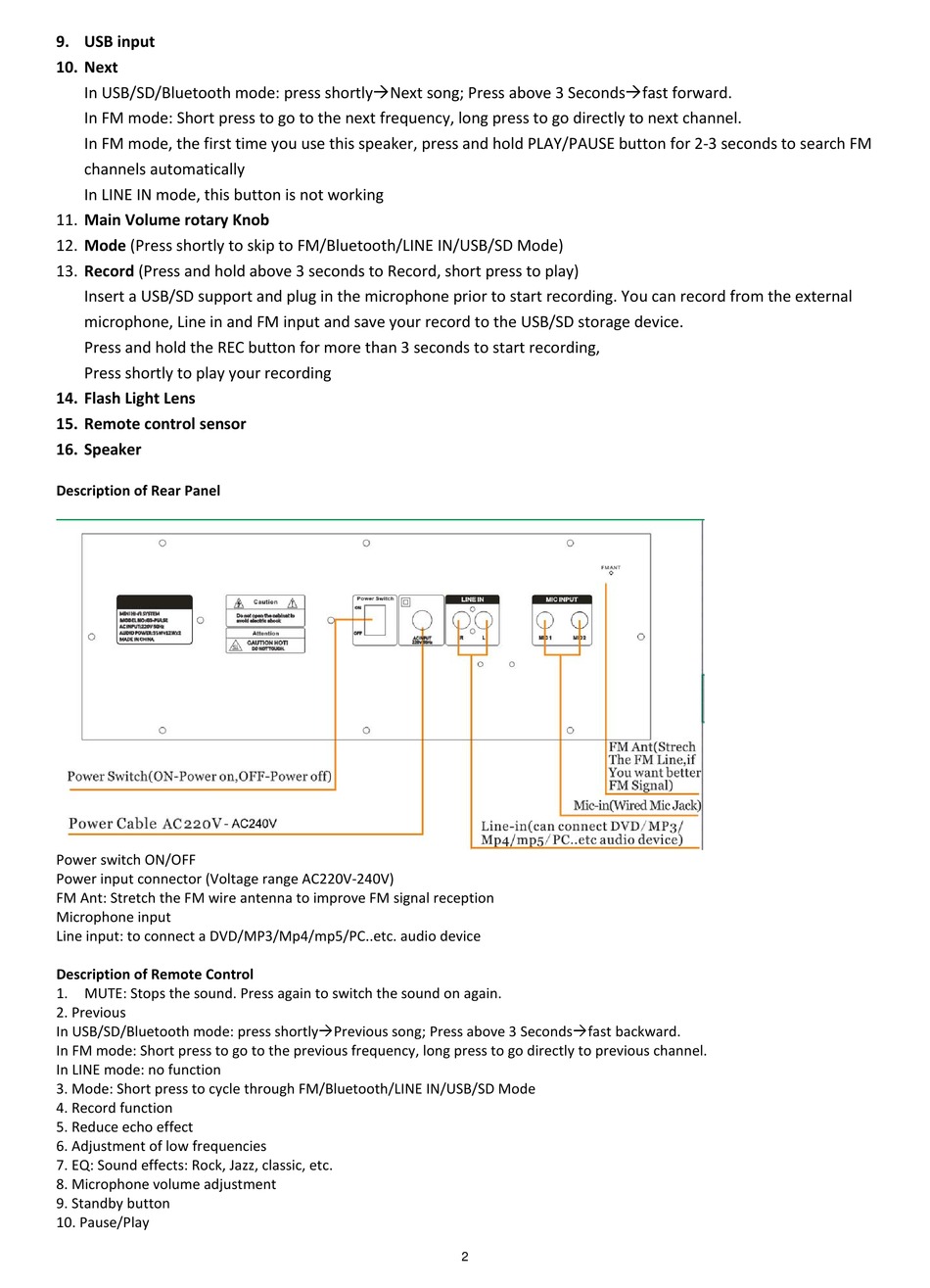

Usb Input - Ibiza sound SPLBOX150 Bedienungsanleitung

9. USB input

10. Next
In USB/SD/Bluetooth mode: press shortlyNext song; Press above 3 Secondsfast forward.
In FM mode: Short press to go to the next frequency, long press to go directly to next channel.
In FM mode, the first time you use this speaker, press and hold PLAY/PAUSE button for 2-3 seconds to search FM
channels automatically
In LINE IN mode, this button is not working
11. Main Volume rotary Knob
12. Mode (Press shortly to skip to FM/Bluetooth/LINE IN/USB/SD Mode)
13. Record (Press and hold above 3 seconds to Record, short press to play)
Insert a USB/SD support and plug in the microphone prior to start recording. You can record from the external
microphone, Line in and FM input and save your record to the USB/SD storage device.
Press and hold the REC button for more than 3 seconds to start recording,
Press shortly to play your recording
14. Flash Light Lens
15. Remote control sensor
16. Speaker
Description of Rear Panel
Power switch ON/OFF
Power input connector (Voltage range AC220V-240V)
FM Ant: Stretch the FM wire antenna to improve FM signal reception
Microphone input
Line input: to connect a DVD/MP3/Mp4/mp5/PC..etc. audio device
Description of Remote Control
1. MUTE: Stops the sound. Press again to switch the sound on again.
2. Previous
In USB/SD/Bluetooth mode: press shortlyPrevious song; Press above 3 Secondsfast backward.
In FM mode: Short press to go to the previous frequency, long press to go directly to previous channel.
In LINE mode: no function
3. Mode: Short press to cycle through FM/Bluetooth/LINE IN/USB/SD Mode
4. Record function
5. Reduce echo effect
6. Adjustment of low frequencies
7. EQ: Sound effects: Rock, Jazz, classic, etc.
8. Microphone volume adjustment
9. Standby button
10. Pause/Play
2
