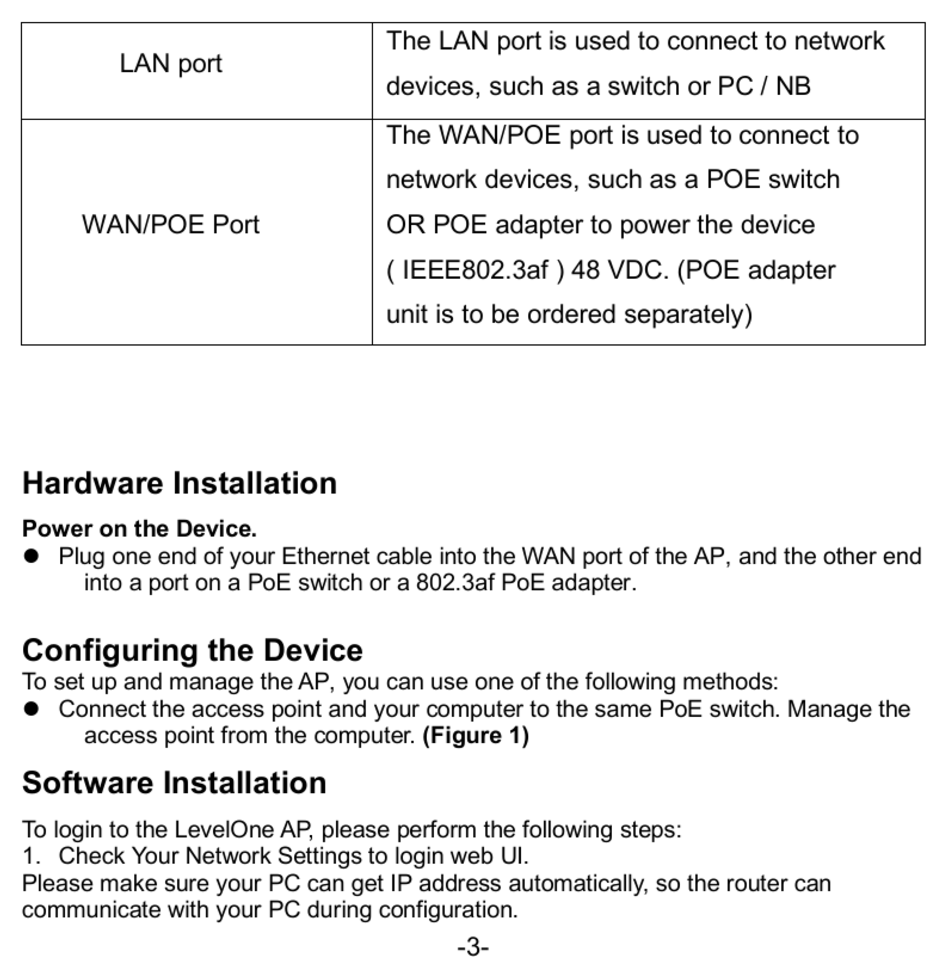

Hardware Installation; Configuring The Device; Software Installation - level one WAP-8221 Schnellinstallationsanleitung

LAN port
WAN/POE Port

Hardware Installation

Power on the Device.
l Plug one end of your Ethernet cable into the WAN port of the AP, and the other end
into a port on a PoE switch or a 802.3af PoE adapter.

Configuring the Device

To set up and manage the AP, you can use one of the following methods:
l Connect the access point and your computer to the same PoE switch. Manage the
access point from the computer. (Figure 1)

Software Installation

To login to the LevelOne AP, please perform the following steps:
1. Check Your Network Settings to login web UI.
Please make sure your PC can get IP address automatically, so the router can
communicate with your PC during configuration.
The LAN port is used to connect to network
devices, such as a switch or PC / NB
The WAN/POE port is used to connect to
network devices, such as a POE switch
OR POE adapter to power the device
( IEEE802.3af ) 48 VDC. (POE adapter
unit is to be ordered separately)
-3-
