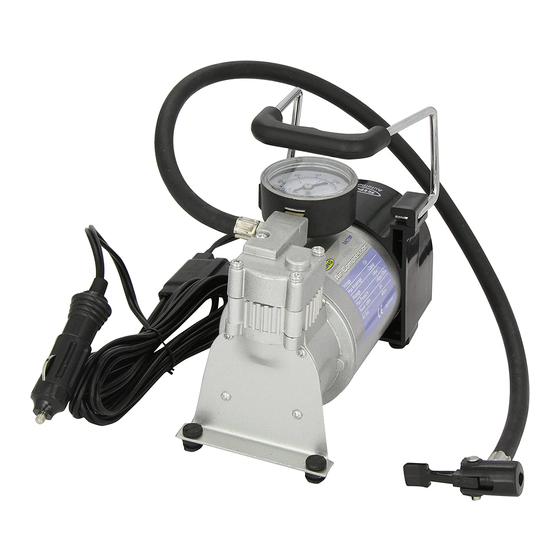

Ring 12V 4 x 4 Air Compressor Part No RAC700 Instructions
Caution
Before operating this compressor, please read the instruction leaflet and retain for future reference.
Operate only in accordance with the instructions
When using the compressor ensure you are parked in a safe location, off the road with the handbrake fully engaged. Ensure your personal
safety is not at risk. The Compressor must not be used when the vehicle is moving. Never leave the compressor unattended.
•
Power supply required 12 volts DC rated at 12 amps DC.
•
This compressor is designed for occasional use. Operation over an extended period may overheat the unit and damage the
compressor. It should not be used continuously for more than 30 minutes. After 30 minutes, turn it off and let it cool for 15 minutes
before resuming .
•
If the compressor is making an abnormal sound, or the temperature of the unit is too high, turn the power off immediately and let it
cool for at least 30 minutes before resuming operation.
•
Do not use the air compressor on high pressure tyres such as those used on commercial vehicles, agricultural or specialist vehicles.
•
Store in a dry place.
•
Do not position close to inflammable liquids or gas.
•
Operate only in dry conditions.
•
Only use the adapters supplied with the device.
•
The gauge on this compressor is for guidance only. Check pressure with a known accurate gauge.
•
The compressor can be used without the engine running but this will drain the battery
To Inflate Tyres
•
Insert the into a 12v socket
•
Connect the air hose to the tyre valve stem and push down with your thumb the latch connector. Ensure the connector is securely
connected
•
Push the ON / OFF button to switch the compressor on.
•
When the desired pressure is reached push the ON / OFF button to switch off.
For Inflatables
•
Select the appropriate adapter and insert into the valve connector.
•
Insert the connector adapter into the appropriate inlet of the inflatable
•
Insert the plug securely into a 12v socket.
•
Push the on / off button to switch the compressor on.
•
Only inflate product to the manufactures specifications
Typical Inflation Pressure
Bicycle tyres 35-40psi
Basketball 9psi
Lawn tractor tyre
•
Caution should be taken not to over inflate.
•
Push the ON/ OFF button to switch the compressor off.
•
Remove adapter from the inflatable and remove adapter from the connector.
Cautions
•
Inspect before each use. Do not use the compressor if bent, broken, melted, burnt, wet or any of the components are damaged.
•
Ensure the Do not kink or block the air hose while the compressor is working
•
To Replace the Fuse
•
Remove the blade fuse from its holder and replace with a 12amp in line blade fuse
Football 13psi
Volleyball
22psi
5psi
