Remove all loose clothing and
confine long hair.
Before operating the machine,
remove tie, rings, watches and other
jewellery.
Wear safety shoes; never wear
leisure shoes or sandals.
Sheet metal stock has sharp edges.
WEAR GLOVES when handling
sharp edged work pieces.
WEAR SAFETY GLASSES.
KEEP HANDS AND FINGERS clear
of the area in front and rear of the
rotary machine.
Stay alert!
Give your work undivided attention.
Use common sense. Do not operate
the machine when you are tired.
Keep an ergonomic body position.
Maintain a balanced stance at all
times.
Do not operate the machine under
the influence of drugs, alcohol or any
medication. Be aware that
medication can change your
behaviour.
Keep children and visitors a safe
distance from the work area.
Keep guards in place and in working
order.
Specifications regarding the
maximum or minimum size of the
work piece must be observed.
Support long work pieces with
helping roller stands.
Do not stand on the machine.
4. Machine specifications
Max Sheet Capacity*
Stainless steel
Steel (St 37, C10)
Mild-steel, Copper
Aluminum
Mild-aluminum
Dist. Shaft Centers
Depth of Throat to Frame
Max. Lift of Beam
Overall (LxWxH) 460x200x405mm
Weight
*Material strength and ductility may
vary a lot. The given values are for
approximate reference only.
5. Transport and installation

5.1 Transport

If you notice transport damage while
unpacking, notify your supplier
immediately. Do not operate the
machine!
Dispose of the packing in an
environmentally friendly manner.
Clean all rust protected surfaces with
petroleum, diesel oil or a mild
solvent.
Coat all machined surfaces with a
light coat of oil to inhibit rust.
5.2 Installation
Attach the machine to a solid, level
work bench.
Machine location must allow access
to all sides.

5.3 Initial Lubrication

See chapter 8 for lubrication.
6. Machine operation
Specifications regarding the
maximum or minimum size of the
work piece must be observed.
Sheet metal stock has sharp edges.
WEAR GLOVES when handling
sharp edged work pieces.
WEAR SAFETY GLASSES.
KEEP HANDS AND FINGERS clear
of the rotary machine.
7. Adjustments
Setup for Rolls:
0,45mm
The (#) in the text refers to the
0,50mm
breakdown and parts list.
0,75mm
1. Use the spanner wrench to
1,0mm
remove the roll nut #45 and install
1,3mm
the different roll combinations.
2. According to the material
50mm
thickness lower the upper shaft #11
178mm
by turning the handle assembly #16.
22mm
3. Turn the adjusting nut #26 to align
29 kg
the upper and lower rolls. To
facilitate the movement push in on
the upper roll while turning the
adjusting nut. Tighten the set screw
#57.
4. According to the size of the work
piece adjust the gauge stop #31 by
2
turning knurled nuts #33 to the
proper position. You can also adjust
the gauge seat #30 by loosening the
set screw #32.
5. The work piece can now be
inserted between the rolls. Turn
handle assembly #16 until the rolls
lightly press on the material. Slowly
turn handle #38 while handle
assembly #16 is rotated to give the
desired shape.
8. Maintenance
Lubrication:
The machine must be lubricated
every day of service with a few drops
of oil.
An oil pinhole is located at the end of
the lower shaft and upper shaft.

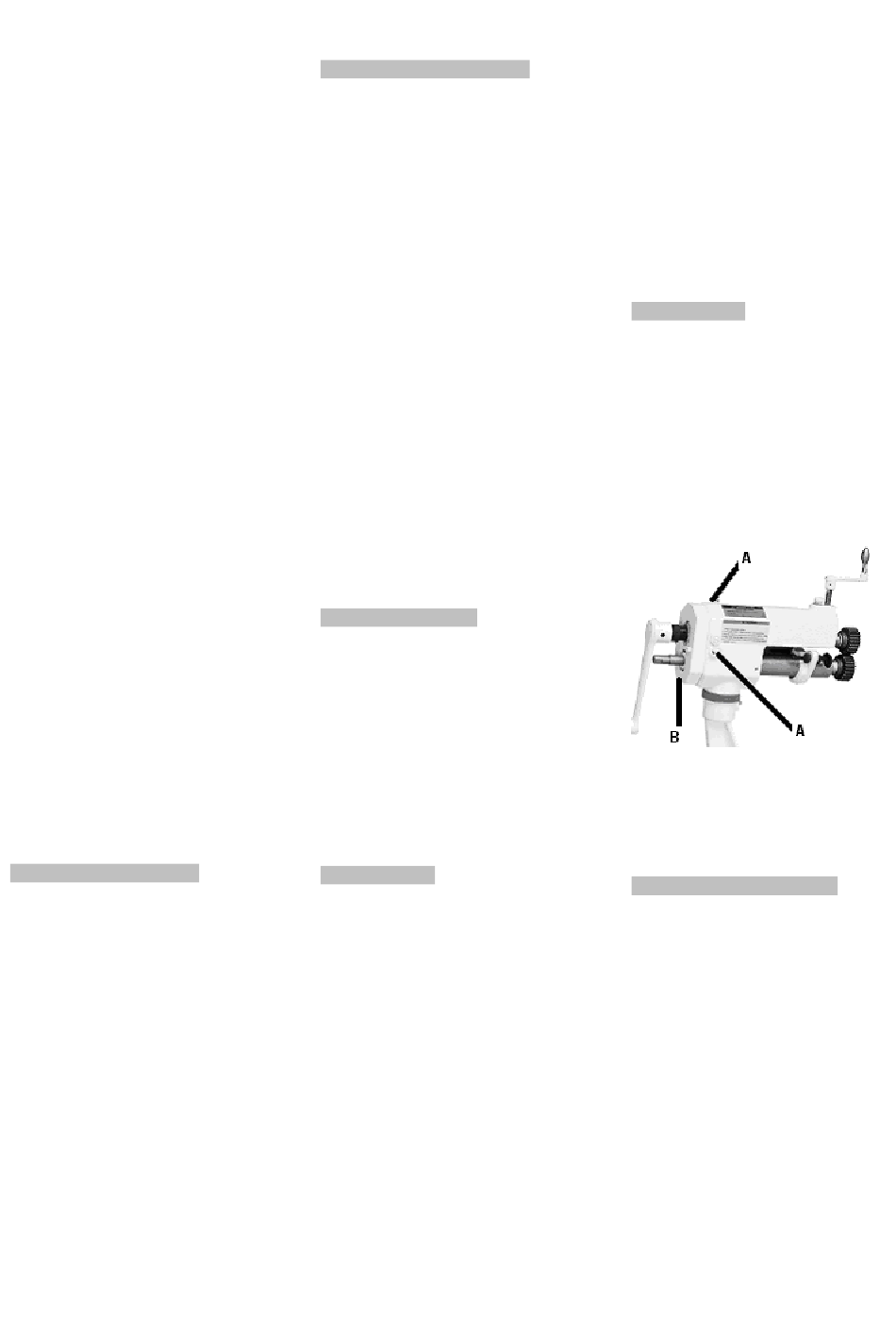

There art two grease fittings (A, Fig.
3) that need to be greased once a
month.
Fig 3
Every thirty days of operation grease
the gears by removing the gear cover
(B, Fig 3).
9. Environmental protection
Protect the environment.
Your appliance contains valuable
materials which can be recovered or
recycled. Please leave it at a
specialized institution.
