6) TCP/IP
Connect the Receiver to the Sender or Ethernet router or hub by using a Cat5e/6 cable
5.0

CONNECTION AND OPERATION

1) Connect the HDMI source (such as DVD, PS3, STB ) to the HDMI In of Sender
2) Connect the HDMI out of Receiver to HDTV display
3) Use one Cat5e/6 cable up to 100m to connect the Sender and Receiver
4) Plug two pieces of 5V power supply into the Sender and Reveiver
5) Power on the HDTV display and HDMI source
Attention: Insert / extract cables gently!
5.1

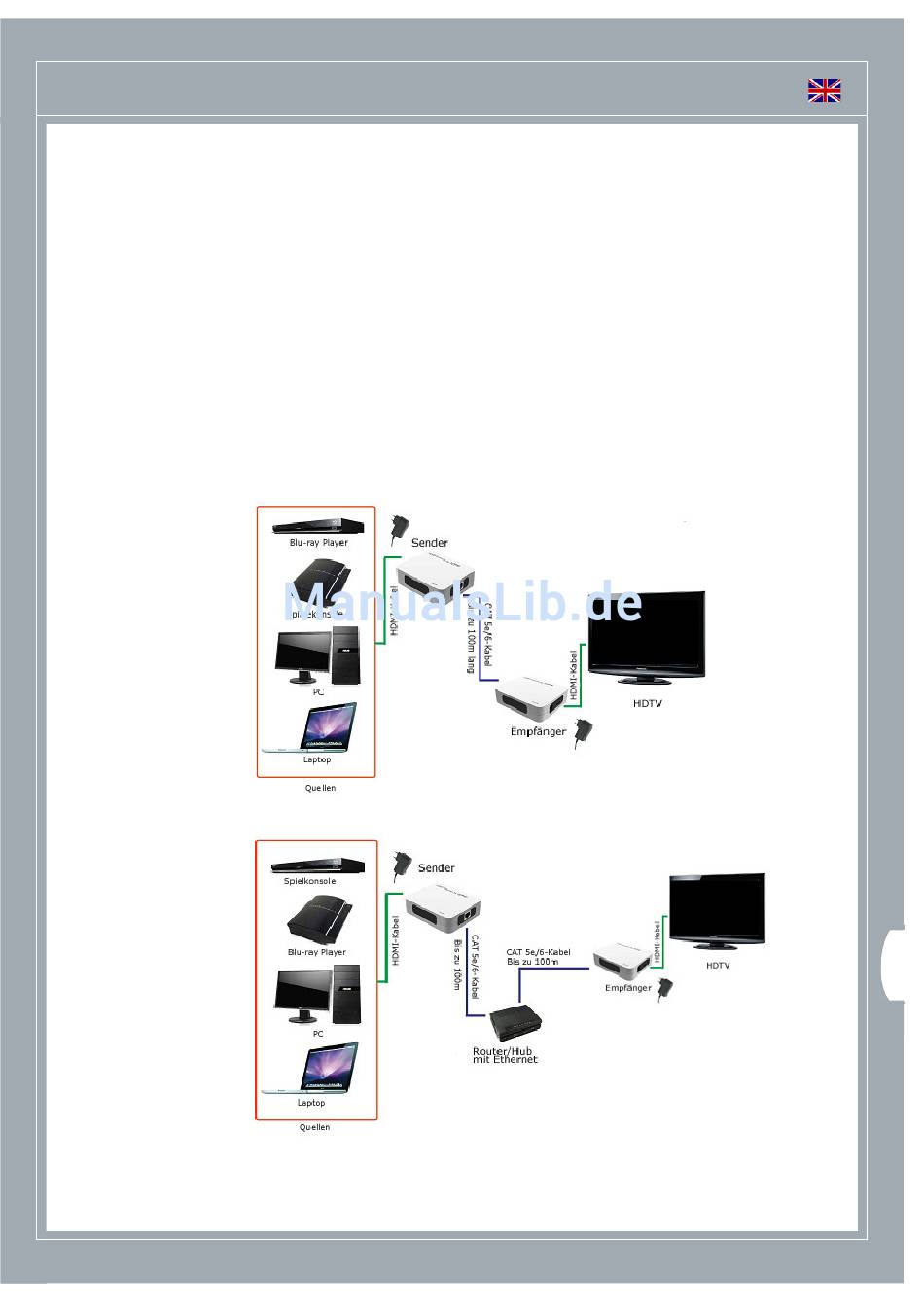

CONNECTION DIAGRAM
