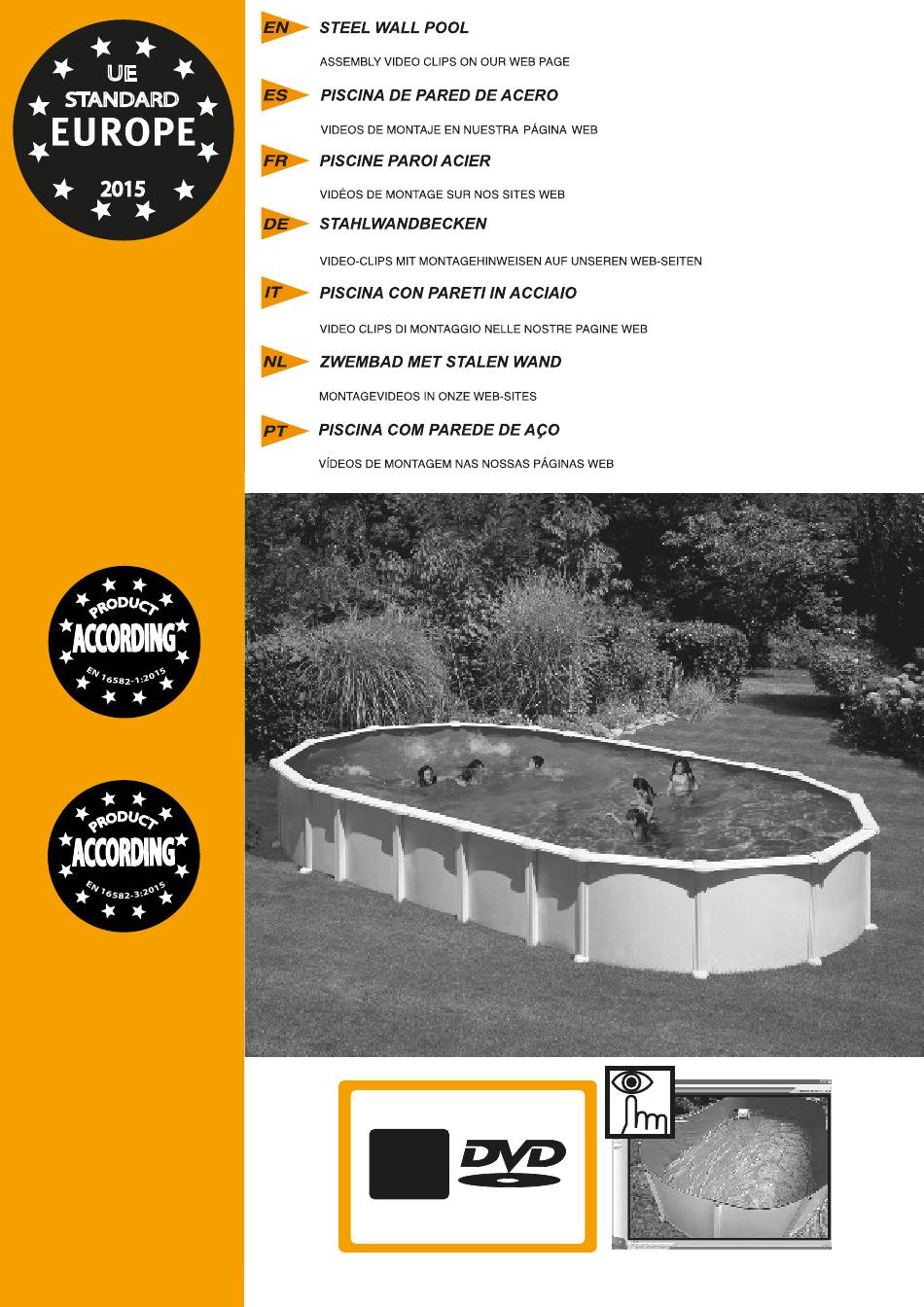

UE
STANDARD
SWIMMINGPOOLS
2015
TO THE NORM
TO THE NORM
MADE IN BY - FABRICADO POR - FABRIQUÉ PAR - HERGESTELLT DURCH - PRODOTTO DA - GEPRODUCEERD DOOR - FABRICADO POR:
HIMPROV9.16
MANUFACTURAS GRE, S.A. ARITZ BIDEA Nº 57 BELAKO INDUSTRIALDEA, APARTADO 69 - 48100 MUNGUIA (VIZCAYA) ESPAÑA Nº Reg. Ind. 48-06762
Made in Spain - Fabricado en España - Fabriqué en Espagne - Hergestellt in Spanien - Prodotto in Spagna - Geproduceerd in Spanje - Fabricado na Espanha
BEFORE STARTING ASSEMBLY, READ CAREFULLY THE INSTRUCTION MANUALS OF EVERY COMPONENTS
OF THE KIT. KEEP THIS INSTRUCTIONS FOR FUTURE REFERENCE.
NON-CONTRACTUAL PHOTOS AND PICTURES
ANTES DE PROCEDER AL MONTAJE, LEA DETENIDAMENTE LAS HOJAS DE INSTRUCCIONES DE TODOS LOS
COMPONENTES DEL KIT. GUARDE ESTAS INSTRUCCIONES PARA FUTURAS CONSULTAS.
FOTOS E IMÁGENES NO CONTRACTUALES
AVANT DE PROCEDER AU MONTAGE, VEUILLEZ LIRE ATTENTIVEMENT LES PAGES DʼINSTRUCTIONS
RELATIVES A TOUS LES COMPOSANTS DU KIT. CONSERVER POUR CONSULTATIONS ULTERIEURE.
PHOTOS ET IMAGES NON CONTRACTUELLES
BEVOR SIE MIT DER MONTAGE ANFANGEN LESEN SIE MIT AUFMERKSAMKEIT DIE GEBRAUCHSANWEISUNGEN
VON ALLEN KITTEILEN. BEWAHREN SIE BITTE DIESE WICHTIGEN HINWEISE ZUR SPÄTEREN EINSICHTSNAHME AUF.
PHOTOS UND BILDER SIND NICHT VERTRAGLICH
PRIMA DI PROCEDERE AL MONTAGGIO LEGGERE ATTENTAMENTE I FOGLI DELLE ISTRUZIONI DI TUTTI
I COMPONENTI DEL KIT. CONSERVARE QUESTE ISTRUZIONI PER FUTURE CONSULTAZIONI.
LA FOTOGRAFIA O IL DISEGNO È SOLO A SCOPO ILLUSTRATIVO ED INFORMATIVO
ALVORENS OVER TE GAAN TOT DE MONTAGE, DIENT U DE VOLGENDE INSTRUCTIES AANDACHTIG DOOR
TE LEZEN EN VAN ALLE COMPONENTEN.BEWAAR DEZE INSTRUCTIES VOOR TOEKOMSTIGE RAADPLEGINGEN.
FOTOʼS EN AFBEELDINGEN HEBBEN GEEN CONTRACTUELE WAARDE
ANTES DE PROCEDER À MONTAGEM LEIA ATENTAMENTE TODAS AS FOLHAS DE INSTRUÇOES DE TODOS
OS MANUAIS DO KIT. GUARDAR ESTAS INSTRUÇÕES PARA FUTURAS CONSULTAS
FOTOS E IMAGENS NAO CONTRATADA
INTERNET
i
www.gre.es
TM
Werbung
Inhaltsverzeichnis
Verwandte Anleitungen für GRE HIMPROV9.16
Inhaltszusammenfassung für GRE HIMPROV9.16
- Seite 1 HIMPROV9.16 MANUFACTURAS GRE, S.A. ARITZ BIDEA Nº 57 BELAKO INDUSTRIALDEA, APARTADO 69 - 48100 MUNGUIA (VIZCAYA) ESPAÑA Nº Reg. Ind. 48-06762 Made in Spain - Fabricado en España - Fabriqué en Espagne - Hergestellt in Spanien - Prodotto in Spagna - Geproduceerd in Spanje - Fabricado na Espanha...
- Seite 2 SAFETY PRECAUTIO NS CO NSEJOS DE SE GURIDAD CONSEILS DE SECURITE SICHERHEITSHI NWE I S CONSIGLI DI SI CUREZZ A RAADGEVINGEN VOOR DE VEILIGHEID Pag. 1 - 3 CONSELHOS DE SEGURANÇA PREPARATI O N OF THE SI TE PREPARACION DEL TERRENO PRÈPARAT I O N DU TERRAIN VORBE REI TUNG DES BODENS PREPARAZI O NE DEL TERRE NO...
- Seite 3 SAFETY PRECAUTIONS I N S T R U C T I O N S CONSEJOS DE SEGURIDAD CONSEILS DE SECURITE SICHERHEITSHINWEIS CONSIGLI DI SICUREZZA RAADGEVINGEN VOOR DE VEILIGHEID CONSELHOS DE SEGURANÇA P A R T E...
-
Seite 4: Safety Advices
France Tel.: (33) 0892 707 720 (0,34€/min) TELÉFONO CONSULTAS: Tel.: (34) 946 741 844 Fax.: 00 (33) 4 92 28 03 33 Fax: (34) 946 741 708 Fax.: (33) 4 92 28 03 33 e-mail: sav@pools.fr web: www.gre.es e-mail: sat@gre.es web: www.gre.es e-mail: sav@pools.fr web: www.gre.es... -
Seite 5: Sicherheitshinweise
Fax: (34) 946 741 708 Freie nummer: 0 800-952 49 72 Italia Tel.: 800 781 592 Tel.: + 31 513 62 66 66 e-mail: info-germany@gre.es e-mai l : satpt@gre.es e-mai l : satit@pools.fr e-mai l : service@aqua-fun.info web: www.gre.es web: www.gre.es web: www.gre.es... - Seite 6 P R E P A R A T I O N O F T H E S I T E I N S T R U C T I O N S P R E P A R A C I O N D E L T E R R E N O P R È...
- Seite 7 UNACCEPTABLE LOCATION: Sloping, uneven ground. Sandy, rocky or soggy ground. NO MONTAR NUNCA EN: Terreno inclinado, desigual, arenoso, con piedras ó blando. NE JAMAIS MONTER: Sur terrain incliné, dénivelé, sablonneux, avec des pierres ou mou. NIE ANBRINGEN AUF: Schrägem, unebenem, sandigem, mit Steinen durchsetztem oder weichem Gelände. NON MONTARE MAI LA PISCINA IN PRESENZA DELLE SEGUENTI CONDIZIONI: terreno in pendenza, irregolare, sabbioso, con pietre o morbido.
- Seite 8 (not included) Tool necessary (no incluida) Herramienta necesaria (non compris) Outil nécessaire (nicht eingeschlossen) Erforderliches werkzeug (non compreso) Utensile necessario (niet inbegrepen). Benodigd gereedschap (não éstá incluída) Ferramenta necessária FLOUR HARINA FARINE MEHL Mark the installation area: Once the location area is chosen (which have to be perfectly levelled), weʼll proceed at the marking. You ʻve got 2 options for that : 1°...
- Seite 9 C’ C’ C’ NIVEL C’ Levelling: When levelling the ground, always remove material from the top of the slope rather than filling in the bottom: this will ensure greater ground stability and firmness. Always remove all grass, roots, stones, etc. Levelling is extremely important: devoting the necessary time and effort to ensuring that your pool sits properly on the ground will avoid problems later.
- Seite 10 Finishing: On the cleaned and levelled ground, spread a light coat of sieved sand (max. 1cm). Water and compact it (with a garden roller). Check that is well levelled. Do not use the sand to level the ground. The finishing has to be perfect. Do never place the profiles forming the pool circle on an unstable ground.
- Seite 11 COMPONENTS COMPONENTES Saque y clasifique los componentes de la piscina antes de iniciar el montaje. Además es el momento de montar la escalera y la depuradora (vea sus respectivas instrucciones de montaje). La falta de piezas en el kit debe de ser informada al servicio postventa en un plazo máximo de 15 días desde la fecha de compra de la piscina, en caso contrario no estará...
- Seite 12 1000 COMPONENTS FOR COMPONENTES PARA ELEMENTS POUR L LINER ( KITENV ) ( KITENV ) PLAYA ZR S = 705 mm PV1335 X = 820 mm * PLAYA ( KITENV ) KIT - V M = 1095 mm LINER - L (large mm) I = 1145 mm L = 1330 mm...
- Seite 13 COMPONENTS COMPONENTES ELEMENTS BESTANDTEILE COMPONENTI ONDERDELEN TPL&TP 10,00 x 9,15 x 8,00 x 7,30 x 6,10 x 5,00 x 5,50 m 4,70 m 4,70 m 3,75 m 3,75 m 3,00 m 11 h 11 h 10 h 9 h 10,00 x 5,50 m 9,15 x 4,70 m 8,00 x 4,70 m 7,30 x 3,75 m 6,10 x 3,75 m 5,00 x 3,00 m 9,90 x 5,55 m 9,01 x 4,65 m 7,90 x 4,65 m 7,25 x 3,75 m 6,10 x 3,75 m 5,09 x 3,00 m...
- Seite 14 IMPORTANT - IMPORTANTE - IMPORTANT - WICHTIG - NOTA - BELANGRIJK - IMPORTANTE It is essential to follow these three steps to achieve a correct assembly: 1. Section pieces must only be placed on the curve area located at the lower part of the pool (semi-circumferences), section pieces must not to be placed on the straight parts.
- Seite 15 9,15 x 4,70 m = TV 2 - 3 8,00 x 4,70 m PV1335 PV1335 L = 5,55 m 915 x 470c m PAG.16 Cʼ 112,5 15cm 10cm 112,5 Cʼ 7,30 x 3,75 m L 5,65 m 112,5 6,10 x 3,75 m PV1335 PV1335 15 cm...
- Seite 16 PEAO PEU2 PV1335 PEAO PEU2 PEU2 PEU2 COLUMNS (C) ASSEMBLING: 1º.- Assemble the two uprights using the following parts: 1 PV1335 + 1 PG + 2 PEAO + 2 PEU2 and TV screws. NOTE: NUTS SHOULD ALWAYS FACE INWARDS. ALL OF THESE STEPS MUST BE CARRIED OUT ON FIRM, LEVEL GROUND BEFORE DIGGING THE CORRESPONDING TRENCHES. IT IS IMPORTANT THAT YOU CARRY OUT THE ASSEMBLY OF THESE PARTS IN A WIDE AND LEVEL SPACE FOR GREATER CONVENIENCE.
- Seite 17 PV1335 PV1335 PV1335 TM69 TM69 ATTACHING THE STRUTS (CN) TO THE UPRIGHTS (C). 4 – Screw the part PEU to the two top holes in the centre of the part PG: 5 – Screw the end of each strut (CN) to the two top holes at the end of each PG with 4 TM6 screws and corresponding nuts TM69 (tighten firmly).
- Seite 18 = TV 10,00 x 5,50 m= (2 C + 1 CN) x 4 7,30 x 3,75 m= (2 C + 1 CN) x 3 9,15 x 4,70 m= (2 C + 1 CN) x 4 6,10 x 3,75 m= (2 C + 1 CN) x 2 8,00 x 4,70 m= (2 C + 1 CN) x 3 5,00 x 3,00 m= (2 C + 1 CN) x 2 REF.: 9,15 x 4,70 m...
- Seite 19 PV1335 TM640 TM640x2 Aleta AP x2 Aleta AP 7 – Place a plate AP so that its two holes coincide with the two holes in the part PEU. Then place the other part AP and fasten it using 2 TM640 Nellʼintrodurre screws.
- Seite 20 7,30 x 3,75 m TM640 x 2 TM640 5 cm NIVEL C’ 2 Z = 51 x 101,5 x 1,5 cm 15 cm VERY IMPORTANT: When the assembled structures (each consisting of 2 uprights with a strut, the number depending on the type of pool) are inserted, they must be wedged up so that the uprights are at the same level, before and after the trenches are filled in.
- Seite 21 PV1335 PV1335 Cʼ Cʼ PV1335 Cʼ ASSEMBLING THE METAL BRACKETS ( EM1 ) - ( EM2 ): NOTE: The structure must be entirely buried and properly levelled, so that these brackets are at ground level.The central metal brackets (EM1) are installed in the central area (half on one side and half on the other side), attaching them to the uprights by joining them with TM6 screws to parts PEU (using 2 TRU nuts each, see page 14).The widest part of the metal bracket should be placed nearest to the inside of the pool, and the narrowest part should be vertical, in order to attach it to part PEU.Once these brackets are in place and firmly screwed on, fit the outer brackets (EM2) (2 left and 2 right) onto the ends, also with TM6 screws, ensuring that the joining pieces (PU) to be fitted into the bracket...
- Seite 22 1000 x 550 cm: 8 + 8 PU / 915 x 470 cm: 6 + 6 PU / 800 x 470 cm: 6 + 6 PU PIPC PIPC 730 x 375 cm: 6 + 6 PU / 610 x 375 cm: 6 + 6 PU / 500 x 300 cm: 6 + 6 PU PV1335 PIPC PIPC...
- Seite 23 (not included) Tool necessary (no incluida) Herramienta necesaria (non compris) Outils nécessaire (nicht eingeschlossen) Erforderliches werkzeug (non compreso) Utensile necessario Cʼ (niet inbegrepen). Benodigd gereedschap PV1335 (não éstá incluída) Ferramenta necessária PV1335 Cʼ SKIMMER Cʼ T x 3 *IMPORTANT! BEFORE ASSEMBLY, DEBURRING, USING A FILE AND SANDPAPER, THE EDGE OF THE CLOSING WALL (CH). Before fitting the plate, insert part B2 into the top of part PV1335 until it butts against piece PEAO.
- Seite 24 TPVC (TPVCP) PV1335 Cʼ Cʼ SKIMMER ( Pag. 29 ) PVC PROTECTIVE STRIPS (INSIDE OF POOL): The pool is supplied with 2 wide PVC strips and 1 narrow one. The narrow strip must be attached to the top nut at the join of the wall plating and hung down inside to cover the screw heads. The 2 wider strips must be taped on to cover the metal brackets inside the straight part of the pool.
