1
SAFETY
S a f INSTRUCTIONS
1 When the speakers are installed on the walls, ensure the
wall structure is reliable and that the speakers are firmly
attached.
2 Install the speaker in a location that can structurally
support the weight of the speaker and its mounting
hardware. Otherwise it may result in the unit falling down
and causing personal injury.
3 Do not use nails, adhesives or other unauthorized devices.
Long-term use and vibrations may cause it to fall easily.
4 Do not touch or bump the woofer and tweeter. If these are
damaged, the sound will be distorted.
5 Do not listen to sound at a very high level when you are
changing the input source (for example, to tune FM / CD)
Installation or removal of cables should make sure that
the power amp / amplifier device radio is turned off.
PACKING
LIST
speaker user manual
wire screw
INSTALLATIONS
Fix one screw per speaker to a suitable wall
and attach the backside to the screw.
CONNECTION
S
Connection
Make sure all equipment is turned off before connection.
When connecting the speakers, be sure to retain the correct
polarity. Most speakers' cables will have (+) red sign for
the positive and (-) black sign for negative.
If you intend to use the FSL-540 pairs as front
loudspeakers, connect the speakers cable to the positive (+)
front-left speaker terminal on the amplifier and to the
positive (+).Connect the speaker cable to the negative (-)
front-left speaker
terminal on the amplifier (-). Repeat the same step for the
right-side speaker. In the case that your speakers have two
sets of terminals on the back, either set of input terminals
can be used as long as the shorting straps are in place.

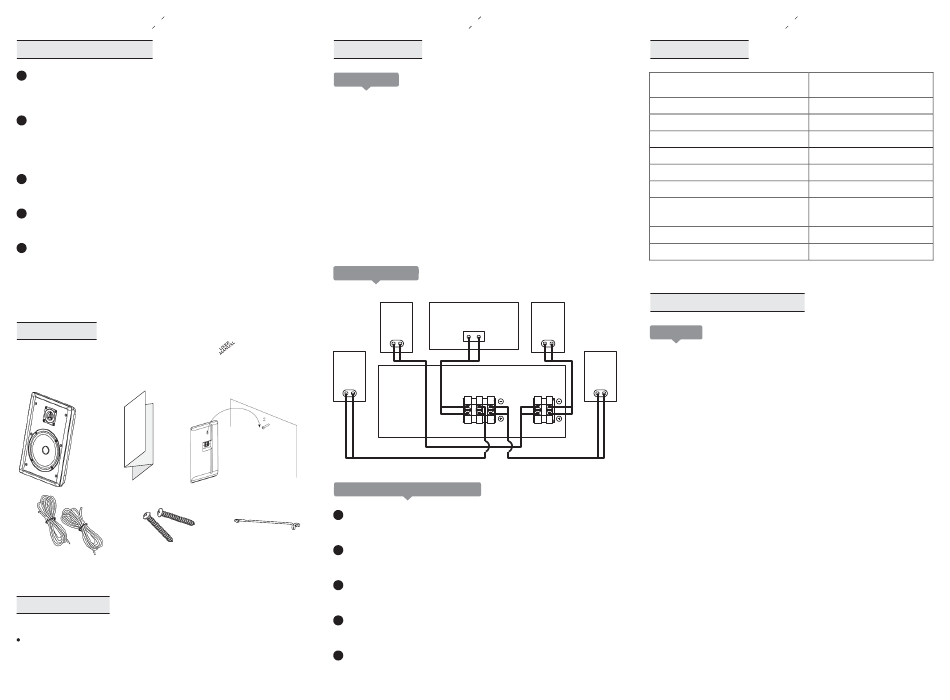

Set-up Diagram
Left
Front
Speaker
Left
Surround
Receiver
Speaker
Underpower Vs. Overpower
1 Most speaker damage is caused by amplifiers with tool ittle
power (wattage).
2 An overdriven amplifier clips the waveforms and leads to
hook needle
speaker distortion an possibly damage
Clipping is usually audible and it may vary from a harsh to
fuzzy or unclear sound.
4 If you hear the clipping at high volume levels, turn down
the volume until the distortion is gone.
5 Damage caused by operating the speakers at distorted
volume levels is not covered by the warranty.
2
Center Speaker Left
Front
Speaker
Right
Surround
Surround Speaker FRONT
Speaker
CENTER REAR
L R
C L R
3
SPECIFICATION
S
MODEL FSL-540
RMS Power 40W
Frequency Response 100Hz - 20kHz
Sensitivity (±3dB) 89dB
Nominal Impedance (ohm) 8
Woofer
5.25" Paper Cone
Tweeter
0.5" Mylar Dome
271x183x38
Dimensions (mm)
(10.7"x7.2"x1.5")
Finish Black, White
Black, White
Grille
CARE AND
MAINTENANCE
Cleaning
Make sure to turn all equipment off before cleaning.
The cabinet only needs occasional dusting. Please do not
touch the drive units. Do not attempt to clean the speakers
with chemical solvents as this may damage the paint surface.
Clean with a dry cloth
