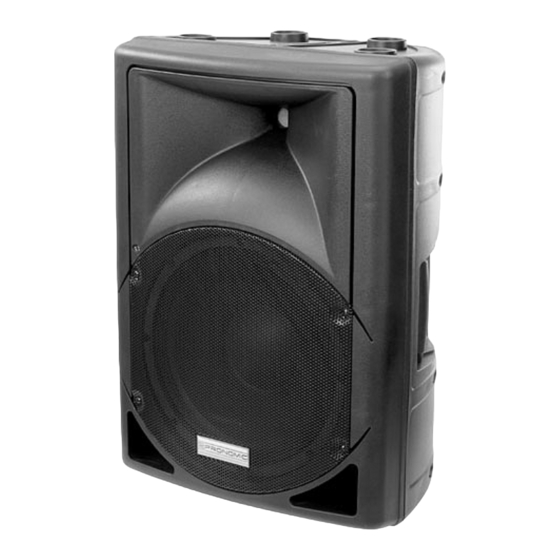

Pronomic FOX-12A Aktivbox Bedienungsanleitung

Water warning:
• Do not expose the device to rain, use it near water or in damp or wet conditions on it containing liquids which might spill
into any openings. Never insert or remove an electric plug with wet hands.
If you notice any abnormality:
• If the power cord or plug becomes frayed or damaged, or if there is a sudden loss of sound during use of the device, or if
any unusual smells or smoke should appear to be caused by it, immediately turn off the power switch, disconnect the
electric plug from the outlet, and have the device inspected by qualified service personnel.
E
N
G
Power connection and wiring
L
I
Please connect the power cable to 110/220(230)V 50/60Hz power voltage. Make sure to set
S the power input selector to the available net voltage. Connect all input/output signals with
XLR and/or 6.35mm jack cables. Do not connect multiple inputs possibilities (e.g. MIC XLR /
H
MIC 6.35mm) with more than one cable.
Switch on net power after you finished all audio connections

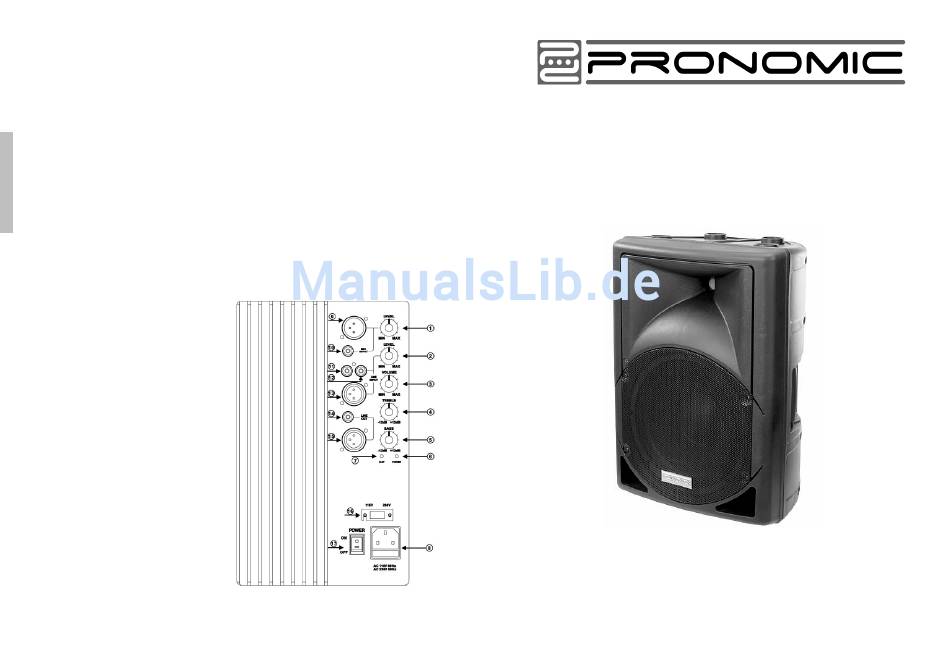

Connectors and operator elements:
1 Volume control Mic In
2 Volume control Line In
3 Volume control "Master Volume"
4 Treble control
5 Bass control
6 LED Power On
7 LED Clip
8 Net cable power in
9 Microphone IN XLR
10 Microphone In 6.35mm jack
11/12 Line In Chinch
13 Line In XLR
14 Line Out signal 6.35mm
15 Line Out signal XLR
16 Net voltage selector 110/220(230)V
17 Power switch On/Off
7
Bedienungsanleitung
Operators manual
Pronomic FOX-12A
Aktivbox
00022833
Version 12/2011
