PROFACTOR filter models PF FS 879, PF FS 880 and PF FS 881 are provided with the
rotary mechanism allowing to install the unit on the pipeline at any angle.
All the PROFACTOR self-cleaning filters are provided with two sets of connecting branches
with ½" and ¾" taper pipe thread for connection to the pipeline and pressure gauges.
A filter screen (5-3) is made of AISI 316L (DIN EN 10088) stainless steel resistant to corrosion
in aggressive media.
®
®
Adolf-Kolping-Str. 16, 80336 München, Germany, Telefon: +49 89 21546092
E-mail: info@pf-armaturen.de, Internet: www.profactor.de
1-1
1-2
1-3
1-4

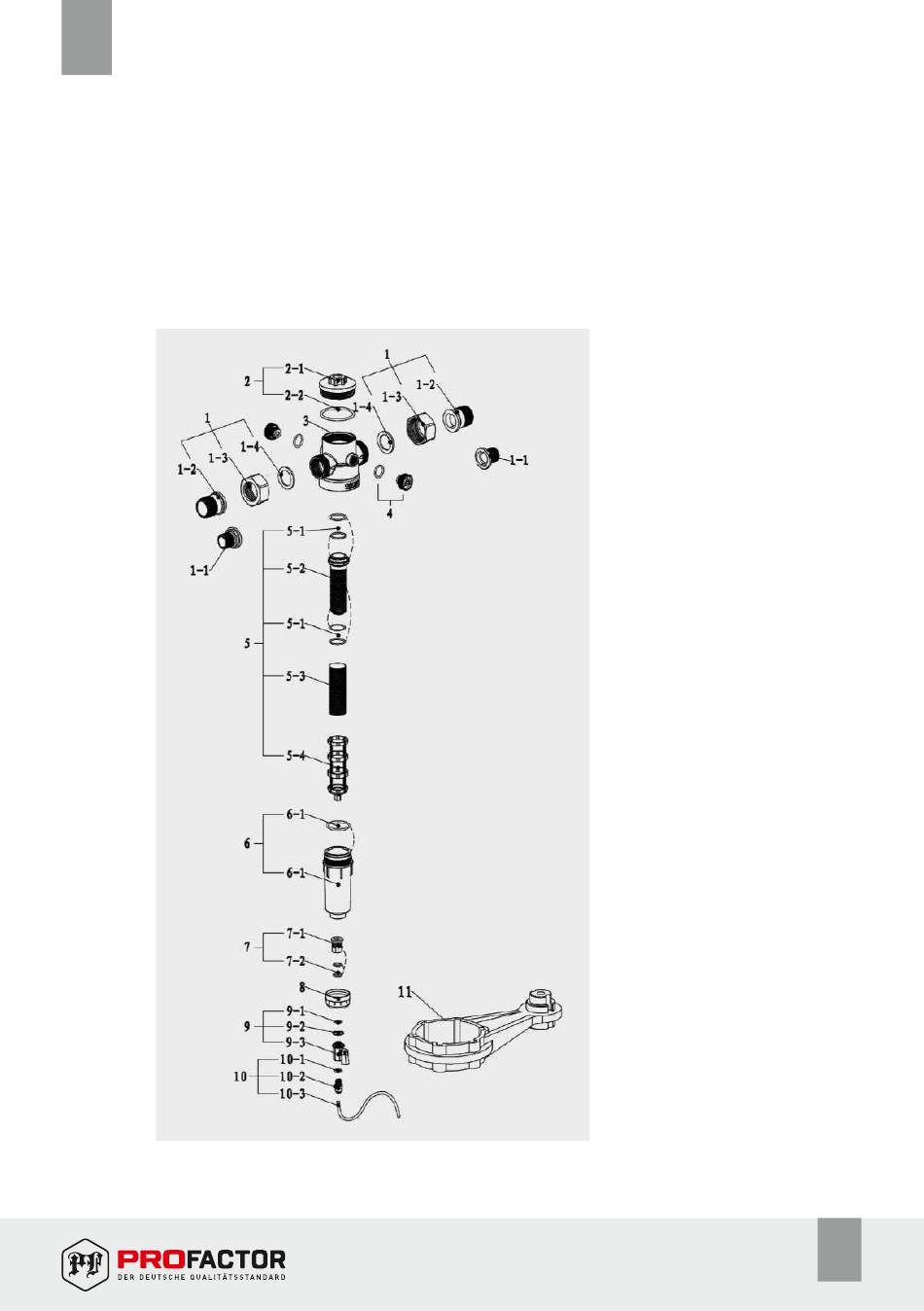

2-1
2-2
3 Casing
4-1
4-2
5-1
5-2
5-3
5-4
6-1
6-2
7-1
7-2
8 Handwheel
9-1
9-2
9-3
10-1 O-ring
10-2 Drain hose connector
10-3 Drain hose
11
Profactor Armaturen GmbH
½" connecting branch
¾" connecting branch
Cap nut
Gasket
Cover
O-ring
O-ring
Plug
O-ring
Cartridge
Filter screen
Brush
O-ring
Bowl
Connector
O-ring
O-ring
Spring
Drain ball valve
Adjusting wrench
