Introduction
Congratulations on your purchase of the TerraTec HI JACK Studio Guitar PreAmp, a
high-quality, state-of-the-art piece of studio equipment. The HI JACK Studio Guitar Pre-
Amp is suitable for any application that calls for amplifying electric guitars to line level and
connecting them directly to sound cards, mixers or HiFi components. Please read the
following information so that you can start using all of the most important features of your
device right away.
We hope you enjoy using your HI JACK Studio Guitar PreAmp.
Sincerely,
Your TerraTec Producer Team

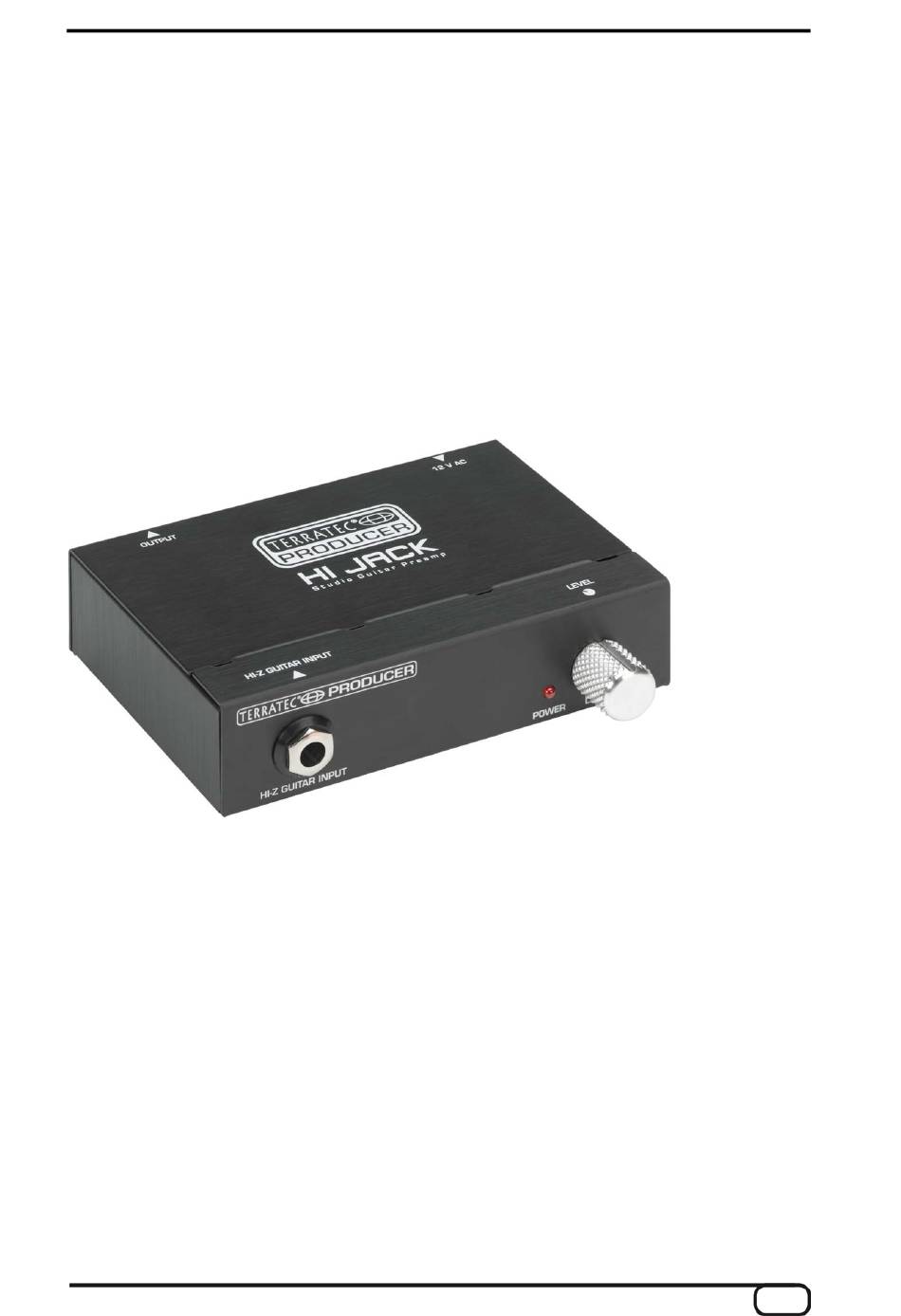

Connections and controls

Power: The HI JACK requires a standard 12V AC power adapter (included). The Power
LED is lit when the HI JACK is operational.
Line out: The Line output has been realized as a 1/4" jack connection that can be used in
balanced or unbalanced mode. The mode switches automatically depending on the cable
used (see below).
HI-Z input: The high-impedance input is suitable for electric guitars, basses and similar
instruments (e.g. harps or violins) with pickups. For the best sound quality, turn the output
of the instrument up as high as possible.
Level control: Adjust the level so that the input of the downstream device does not dis-
tort.
