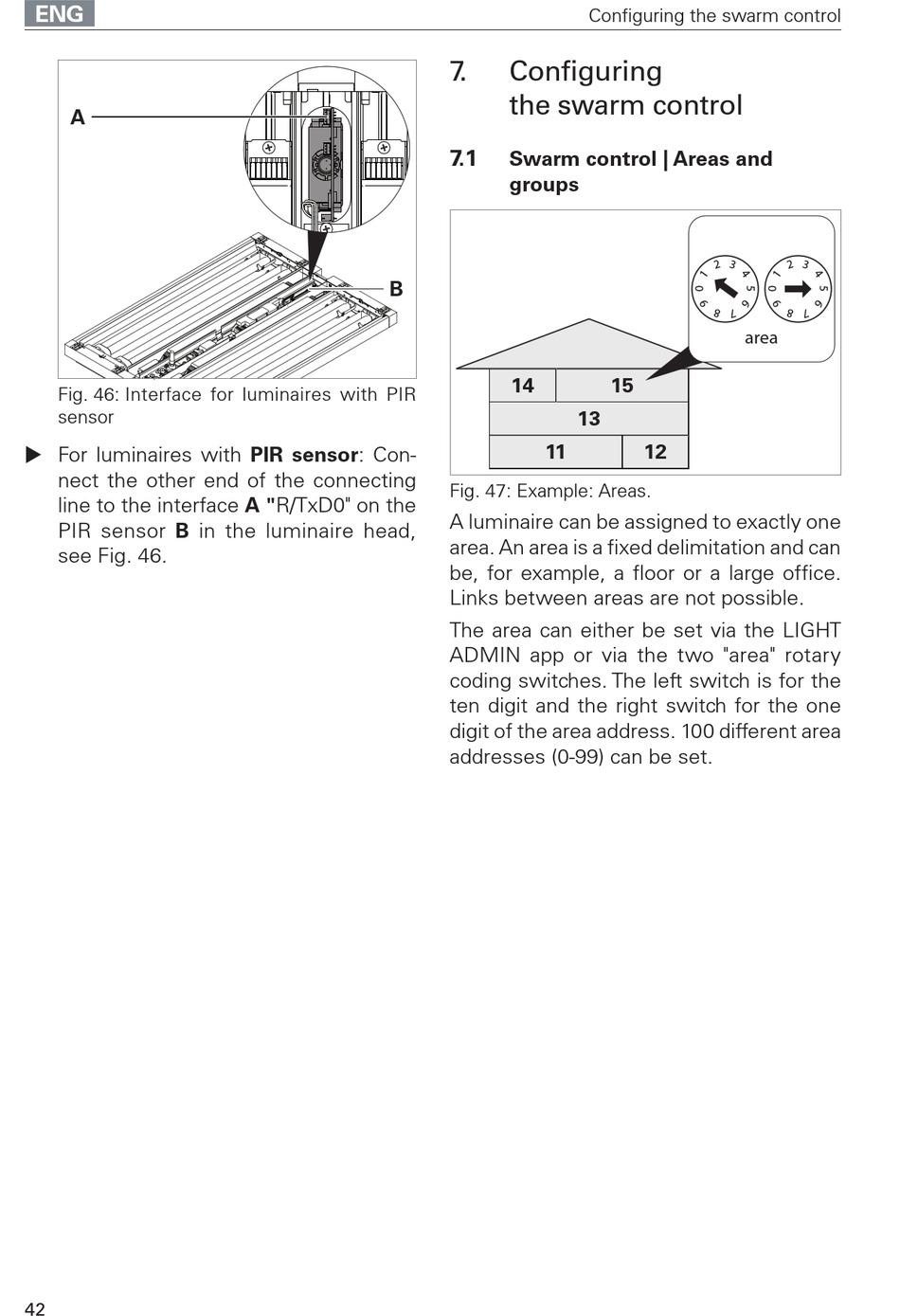

Fig. 46: Interface for luminaires with PIR
sensor
X For luminaires with PIR sensor: Con-
nect the other end of the connecting
line to the interface A "R/TxD0" on the
PIR sensor B in the luminaire head,
see Fig. 46.
42
7 . Configuring
the swarm control
7.1
Swarm control | Areas and
groups
B
14
11
Fig. 47: Example: Areas.
A luminaire can be assigned to exactly one
area. An area is a fixed delimitation and can
be, for example, a floor or a large office.
Links between areas are not possible.
The area can either be set via the LIGHT
ADMIN app or via the two "area" rotary
coding switches. The left switch is for the
ten digit and the right switch for the one
digit of the area address. 100 different area
addresses (0-99) can be set.

Configuring the swarm control

area
15
13
12
