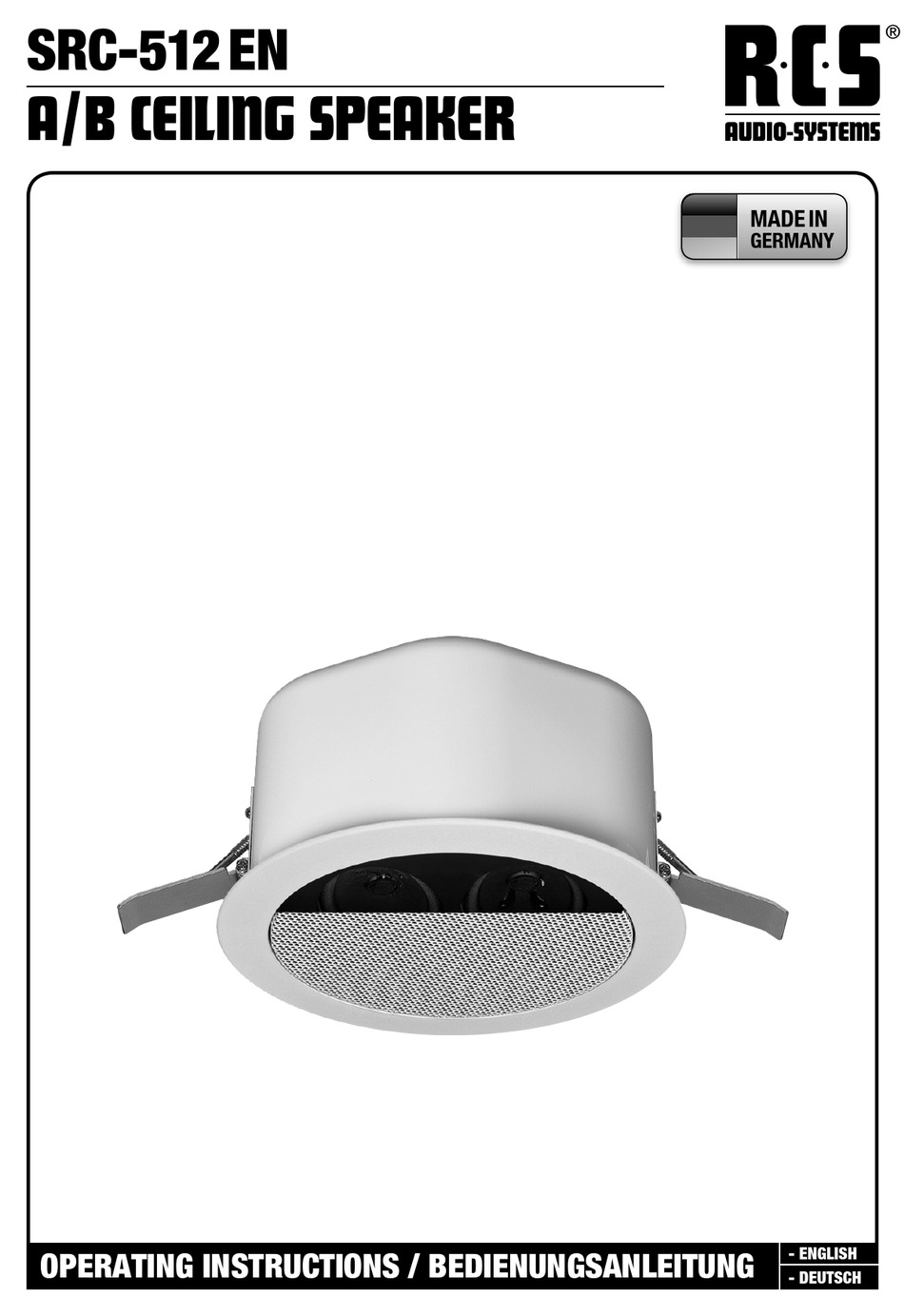

SRC-512 EN A/B CEILING SPEAKER MADE IN GERMANY - ENGLISH OPERATING INSTRUCTIONS / BEDIENUNGSANLEITUNG - DEUTSCH...
Seite 2
SRC-512 EN DESCRIPTION BESCHREIBUNG This ceiling and wall speaker is equipped with 2 loudspea- Dieser Einbaulautsprecher ist sowohl mit 2 Lautsprechern kers as well as with 2 transformers. This cabinet speaker wie auch mit 2 Übertragern bestückt und erlaubt damit auf enables space saving A/B division and wiring of the required platzsparende und elegante Weise eine A/B Aufteilung und alarming loudspeakers through IEC 60849.
Seite 3
SRC-512 EN Polar Response Polar Plots [Hz] 1000 2000 4000 Polar response horizontal (red) (-6dB) 162° 180° 106° 60° Polar response vertical (blue) (-6dB) 176° 180° 172° 132° Technichal Data SRC-512 EN Input 100 V Nominal power 2 x 6W, 3W, 1,5W SPLP max 1 m 88dB Nominal impedance...
SRC-512 EN CONNECTION DIAGRAMS SRC-512 EN / Loudspeaker for voice alarm systems RCS Audio-Systems GmbH, Markfeld 5, 83043 Bad Aibiling 11 / System 1 / 1488, ITB Building Research Institute, 00-611 Warszawa, ul Filtrowa 1 1488-CPR-0181/W / EN-54-24:2008 / Typ A...
SRC-512 EN MOUNTING INSTRUCTIONS MONTAGEANLEITUNG ASSEMBLY EINBAU The hole cutout necessary for the installation should have Der benötigte Lochausschnitt für die Installation sollte einen a diameter of 205 mm ±5mm. The installation depth should Durchmesser von 204 mm ±5 mm aufweisen. Die Einbautie- amount to at least 100 mm.
Seite 7
SRC-512 EN DECLARED PERFORMANCE LEISTUNGSERKLÄRUNG ESSENTIAL CHARACTERISTICS CHAPTER OF PERFORMANCE HARMONISED STANDARD STANDARD Performance in case of fire! 4.2, 5.2, 5.3, 5.4, 5.5 fulfilled EN 54-24:2008 Operation reliability 4.3, 4.4, 4.5, 5.6, 5.18 fulfilled EN 54-24:2008 Durability of operation 5.7, 5.8, 5.9 fulfilled EN 54-24:2008 Temperature resistance...
