FUNCTIONAL DESCRIPTIONS

Digital Voltmeter
The digital voltmeter shows the current operating voltage in volts. If the applied
voltage drops below 10 volts, the volt indicator will indicate "LO".
If a voltage of more than 15 volts is applied, the voltmeter shows the mes-
sage "HI". In this case disconnect the power supply and check what causes
the overvoltage.
The digital volt indicator turns off when a stable voltage is applied and will not
turn on again until there is a voltage swing.
Status-LED
The two status LEDs light up as soon as the capacitor is supplied with power
and is switched on via the remote turn-on signal.
Potentiometer
This controller allows to adjust the voltmeter.

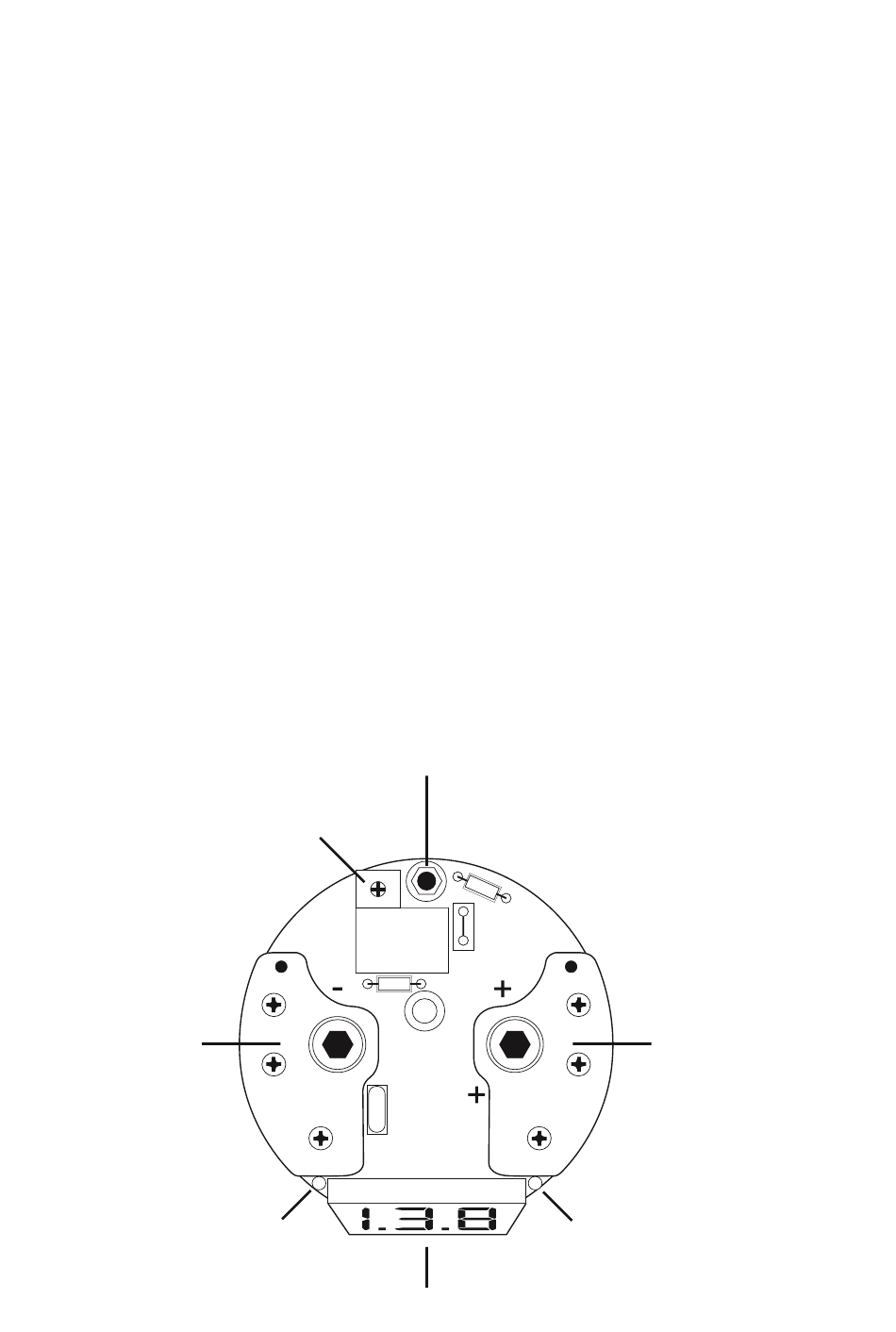

Remote
(Turn-On )
Potentiometer
Ground Battery
Terminal (–) Terminal (+)
1 x Input 1 x Input
2 x Output 2 x Output
Status-LED
Status-LED
Digital Voltmeter
