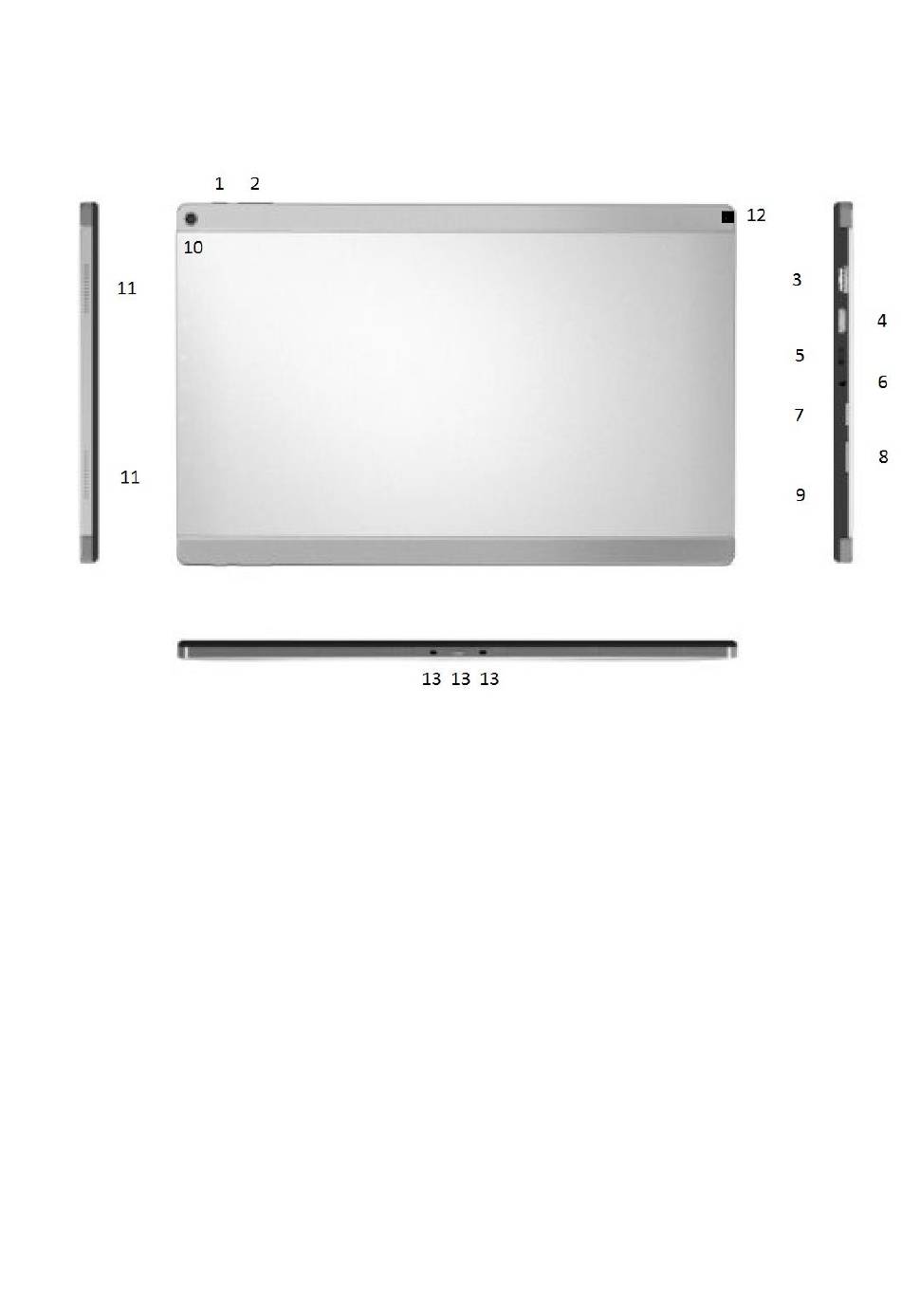

Rear View

1. Power Button:
2. Sound+/ Sound-:
3. USB 2.0 Type A:
4. Mini HDMI port:
5. Micro USB port:
6. Headphone connector:
7. Micro SD card card slot: supports microSD and micro SDHC format, max. 32GB
8. Sim card slot:
9. Microphon:
10. Rear Camera
11. Speaker outlet
12. Touch Pen
13. Keyboard Port:
see Power on/off
raise/ lower the volume
for data transfer
connect this output to HDMI input of TV or TFT
for data transfer and recharge battery
for earphone or active loudspeaker
support mini SIM card 25x15mm
Microphon outlet
The port enables to connect the tablet with the keyboard
