MOUNING AND CONNECTIONS

1

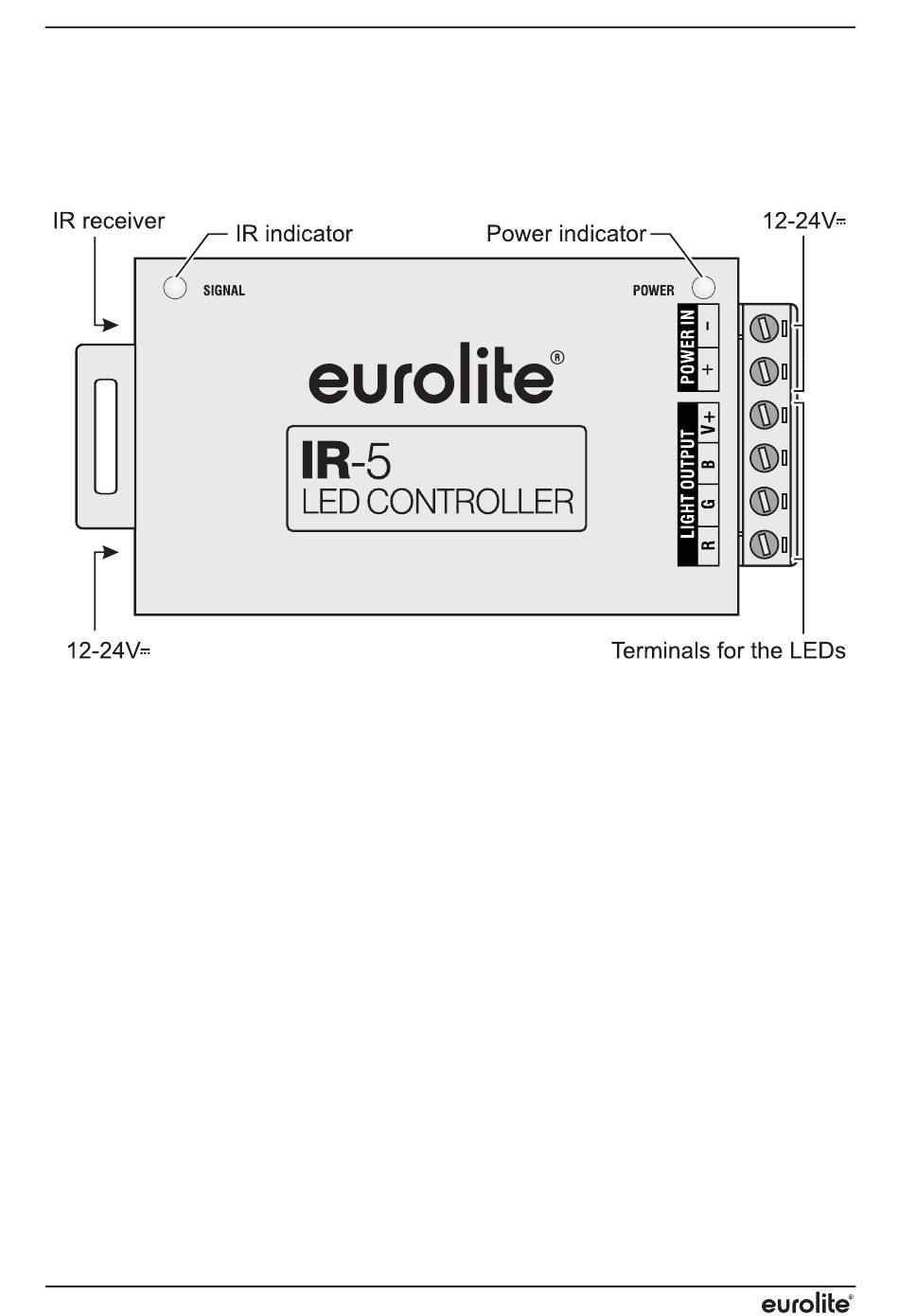

Fix the control unit at a suitable place with two screws. Alternatively
use double-sided adhesive tape. Make sure that the infrared sensor
will always be visible when the remote control is used.
2
Connect the LEDs to the screw terminals LIGHT OUTPUT. The total
load by the LEDs must not exceed 12 A; otherwise the control unit will
be damaged.
R = negative pole for the red LEDs
G = negative pole for the green LEDs
B = negative pole for the blue LEDs
+ = common positive pole
3
For power supply, a matching power supply unit will be required (min.
12 V, max. 24 V). There are screw terminals or a low-voltage jack
(positive pole at the center) provided for this. The power supply unit
must provide the current required for operating the LEDs plus a supply
current of 100 ma for the control unit.
