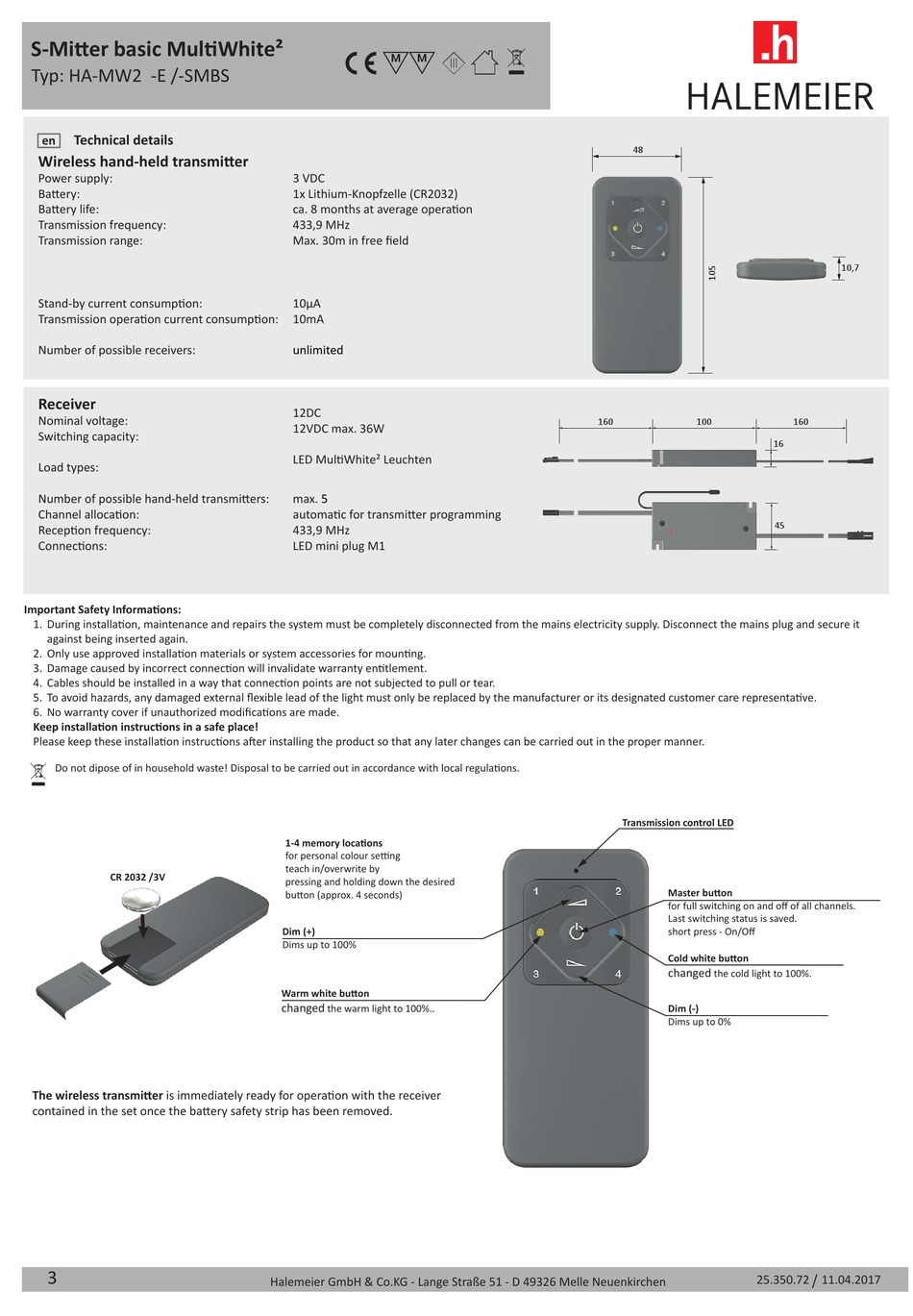

S-Mitter basic MultiWhite²
Typ: HA-MW2 -E /-SMBS
Technical details
en
Wireless hand-held transmitter
Power supply:
Battery:
Battery life:
Transmission frequency:
Transmission range:
Stand-by current consumption:
Transmission operation current consumption:
Number of possible receivers:
Receiver
Nominal voltage:
Switching capacity:
Load types:
Number of possible hand-held transmitters:
Channel allocation:
Reception frequency:
Connections:
Important Safety Informations:
1. During installation, maintenance and repairs the system must be completely disconnected from the mains electricity supply. Disconnect the mains plug and secure it
against being inserted again.
2. Only use approved installation materials or system accessories for mounting.
3. Damage caused by incorrect connection will invalidate warranty entitlement.
4. Cables should be installed in a way that connection points are not subjected to pull or tear.
5. To avoid hazards, any damaged external flexible lead of the light must only be replaced by the manufacturer or its designated customer care representative.
6. No warranty cover if unauthorized modifications are made.
Keep installation instructions in a safe place!
Please keep these installation instructions after installing the product so that any later changes can be carried out in the proper manner.
m
Do not dipose of in household waste! Disposal to be carried out in accordance with local regulations.
CR 2032 /3V
The wireless transmitter is immediately ready for operation with the receiver
contained in the set once the battery safety strip has been removed.
3
cM M 3 q
3 VDC
1x Lithium-Knopfzelle (CR2032)
ca. 8 months at average operation
433,9 MHz
Max. 30m in free field
10μA
10mA
unlimited
12DC
12VDC max. 36W
LED MultiWhite² Leuchten
max. 5
automatic for transmitter programming
433,9 MHz
LED mini plug M1
1-4 memory locations
for personal colour setting
teach in/overwrite by
pressing and holding down the desired
button (approx. 4 seconds)
Dim (+)
Dims up to 100%
Warm white button
changed
the warm light to 100%..
